SK-5217 Zone Expander Installation Instructions
2
7550 Meridian Circle
Maple Grove, MN 55369-4927
763-493-6455 or 800-328-0103
Fax: 763-493-6475
www.silentknight.com
© 2006 Silent Knight PN 151236 Rev B
Mounting Instructions
The SK-5217 into a metal bracket and standoffs
in the SK-5208 cabinet or into SK-2190
accessory cabinet.
Mounting the SK-5217 into
SK-5208 Cabinet
Follow these steps to properly mount the SK-
5217 zone expander into the SK-5208 cabinet:
1. Remove power from the control panel.
2. Mount the SK-5217 onto the standoffs and
bracket located in the cabinet. See Figure 3.

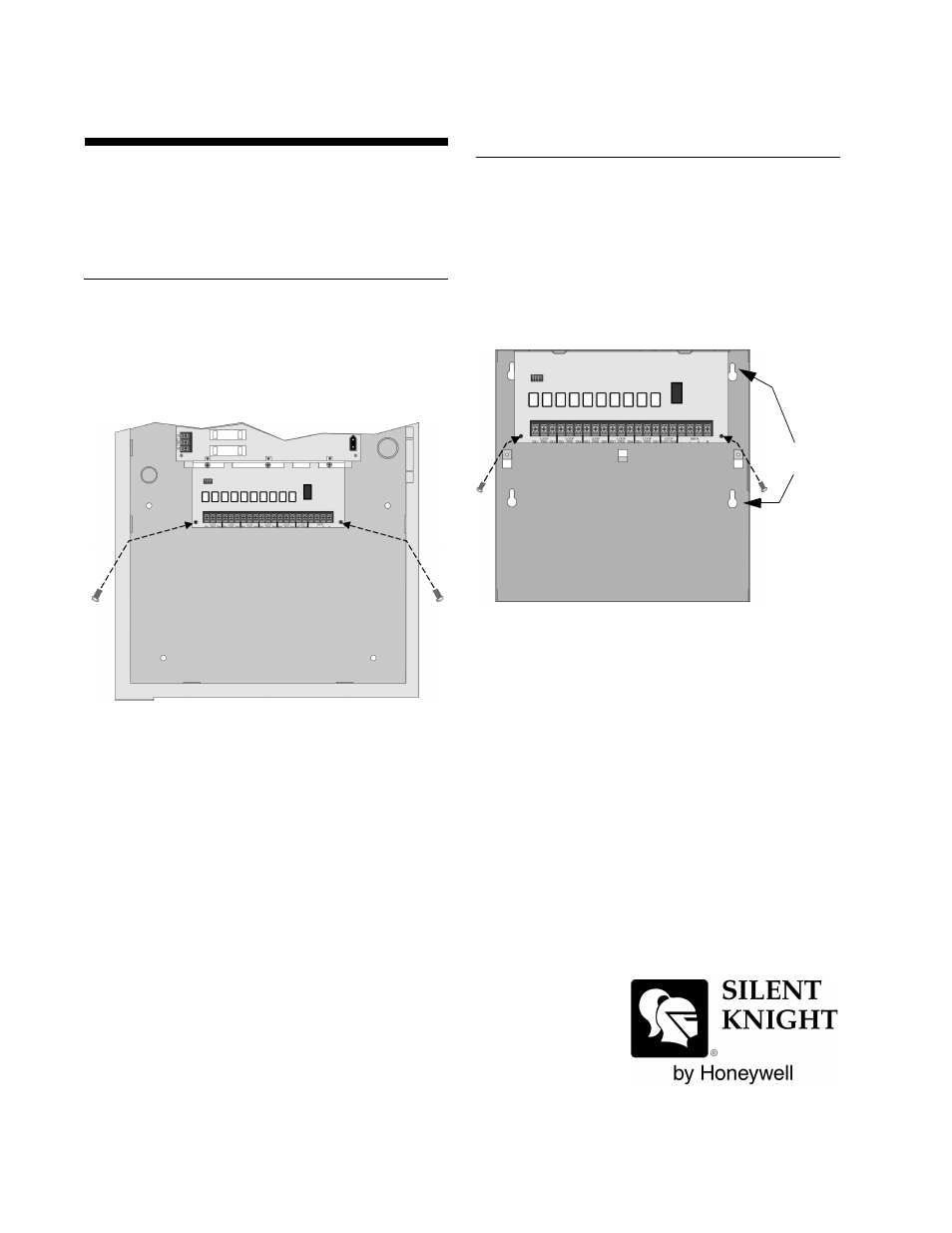

Figure 3: Installing the 5217 Into the 5208 Cabinet
3. Connect the SK-5217 to the SK-5208 control
4. Wire the zone inputs to the zone expander as
5. Reconnect power to the control panel.
Mounting the SK-5217 into the
SK-2190 Accessory Cabinet.
Follow these steps to properly mount the SK-
5217 zone expander into the SK-2190 cabinet:
1. Mount the remote cabinet using the cabinet
2. Remove power from the control panel.
3. Mount the SK-5217 onto the standoffs and
bracket located in the cabinet. See Figure 4.
Figure 4: Model SK-5217 Remote Installation
4. Connect the SK-5217 to the SK-5208 control
5. Wire the zone inputs to the zone expander as
Mounting
Holes
