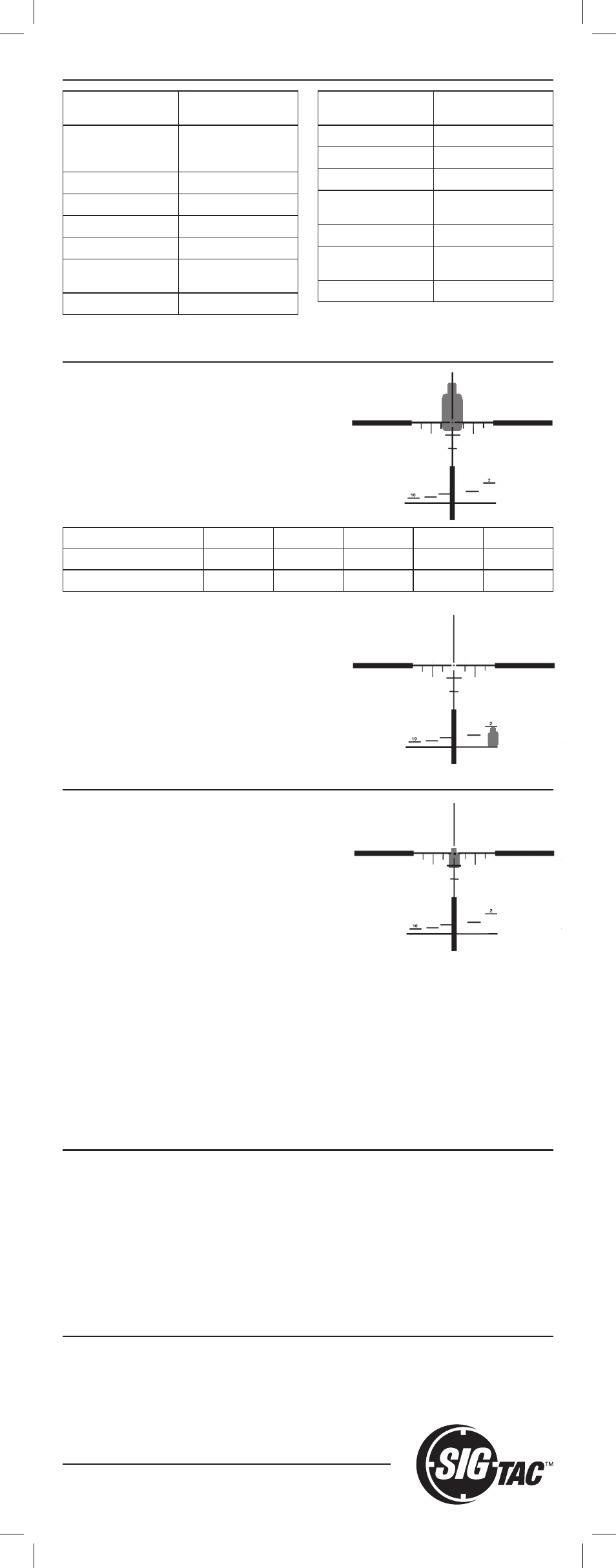

SIG SAUER CP4 Prismatic Scope - Manual (Page 2)

P/N 8500895 REV 02
CP4 OPTICAL SIGHT
Reticle type Reflective prism
ranging reticle
Reticle color Illuminated red, green
or non-illuminated
black
Magnification 4X
Eye Relief 3.2” / 82mm
Exit Pupil .4” / 10.6mm
Parallax setting 100 yds
Optical coating Anti-reflect & multi-
layer band pass
Power/Obj. lens 1.2” / 32mm
Field of view 6 degrees,
10.5m@100m
Adjustment range 2 degrees
Windage/elevation 1/2” @ 100 yds
Mounting M1913 / Weaver
Temp range -5 degrees F to +113
degrees F
Water resistance 0.5m for 15 minutes
Length/diameter 5.8” x 1.2” (146mm x
30mm)
Weight 13.9 oz / 390g
RANGE TABLE
STATEmENT Of LIABILITy
This device is classified as a FIREARMS ACCESSORY and is sold by us with the specific
understanding that we are not responsible in any manner whatsoever for its safe handling
or resale under local laws and regulations. SIGTac shall not be responsible in any manner
whatsoever for malfunctioning of the firearm, for physical injury or for property damage resulting
in whole or in part from (1) criminal or negligent discharge, (2) improper or careless handling,
(3) unauthorized modifications, (4) defective, improper, hand-loaded, or reloaded ammunition,
(5) corrosion, (6) neglect, or (7) other influences beyond our direct and immediate control. This
limitation applies regardless of whether liability is asserted on the basis of contract, negligence
or strict liability (including any failure to warn). Under no circumstances shall SIGTac be liable
for incidental or consequential damages, such as loss of use of property, commercial loss and
loss of earnings or profits.
WARRANTy STATEmENT
SIGTac warrants that our sight and illumination tool products are free from defect in parts and workmanship
for a period of ninety (90) days from original date of purchase. At our discretion, we will repair, replace,
or refund your original purchase price of this product if it is determined to be defective. Normal wear
and tear, including lamps burning out, batteries draining, and switches wearing out, is not covered, nor
is damage resulting from abuse, neglect, battery leakage, or altering this product from its original state.
CONTACT
72 Pease Boulevard, Newington, NH 03801
1-866-964-4822 • www.sigtac.com
Target In Size in Inches 32 in 32 in 32 in 32 in 32 in
Target In Size in M.O.A. 16 8 5.3 4 3.2
Range Est. in Yards 200 400 600 800 1000
The CP4 reticle is used to determine the
range of a target of known size. The example
below shows an 18” wide target bracketed
between the first two shorter vertical stadia
lines of the reticle. The distance between
these two stadia lines is 18” at 100 yds as
stated in diagram XX (which will be the
reticle diagram with dimensions).
The lower range scales is for bracketing a
32” tall target.
If you reference the MOA chart you will
see that the distance between the short
line at the top of the target and the bottom
horizontal line is 16 MOA.
The formula is then: 32 (height of the target)
÷16 (MOA from chart) x 100 = 200 yds.
AImING
The CP4 reticle can be used for aiming even
though it is not a bullet drop design.
To use the reticle for aiming you must know
several data points. First, you must know
the bullet drop of your specific cartridge.
For example let’s use M855 5.56 NATO. Zero
the firearm at 100 yds. Move to 200 yards
and fire a three to five shot group. Measure
the distance between your point of aim
and center of the group. Let’s say it drops
4.0”. You must then have a reference of a known measurement on the reticle to use
as an aiming point. In this case the center dot of the reticle measures 1.8” at 100 yds.
So at 200 yds it will be 3.6” (1.8” x 2=3.6”) which is as close to a 4.0” reference point as
you will get with the reticle. Hold over the height of the dot from your intended point of
impact at 200.
At 300 yds the M855 will drop approx. 15.2”. The measurement of reference “J” of the
reticle is 10.1” at 100 yds, so at 300 yds it is 30.0”. Use the halfway point of the vertical
stadia line as a hold point on the target at 300 yds.
