SIG SAUER Rotary Diopter Rear Sight/Hooded front Sight - Manual (Page 2)

STATEMENT OF LIAbILITY
ROTARY DIOPTER REAR SIGHT
This device is classified as a FIREARMS ACCESSORY and is sold by us with the specific understanding
that we are not responsible in any manner whatsoever for its safe handling or resale under local laws
and regulations. SIG SAUER lnc. shall not be responsible in any manner whatsoever for malfunctioning
of the firearm, for physical injury or for property damage resulting in whole or in part from (I) criminal
or negligent discharge, (2) improper or careless handling, (3) unauthorized modifications, (4) defective,
improper, hand-loaded, or reloaded ammunition, (5) corrosion, (6) neglect, or (7) other influences
beyond our direct and immediate control. This limitation applies regardless of whether liability is
asserted on the basis of contract, negligence or strict liability (including any failure to warn). Under no
circumstances shall SIG SAUER Inc. be liable for incidental or consequential damages, such as loss of
use of property, commercial loss and loss of earnings or profits.
HOODED FRONT SIGHT
CONTACT
18 Industrial Drive, Exeter, NH 03833
(603) 772-2302
• www.sigsauer.com
P/N 1511512 rev 1.0
INSTRUCTIONS
This fixed height sight, adjustable for windage, is required when using
the Rotary Diopter Rear Sight on the SIG556
® Rifle. The hooded front
sight is standard on certain models.
Existing sight removal (if applicable):
• Rotate front sight screw (left side of rifle) counter-clockwise (left) using 4mm
Allen key until front sight is at right side of dovetail.
• Remove spring pin from front sight screw nut (right side of rifle) and remove
nut.
• Remove front sight screw and front sight.
Sight installation:
• Insert hooded front sight into dovetail, from right side of rifle, angled face of
sight facing forward.
• Insert front sight screw from left and tighten clockwise (right) using 4mm
Allen key until hooded front sight is centered.
• Install front sight screw nut and tighten, aligning spring pin holes.
• Install spring pin through front sight screw and nut to secure.
Windage adjustment:
• Rotate front sight screw clockwise (right) to move impact right.
• Rotate front sight screw counter-clockwise (left) to move impact left.
• One full rotation moves impact approx 1” at 100m.

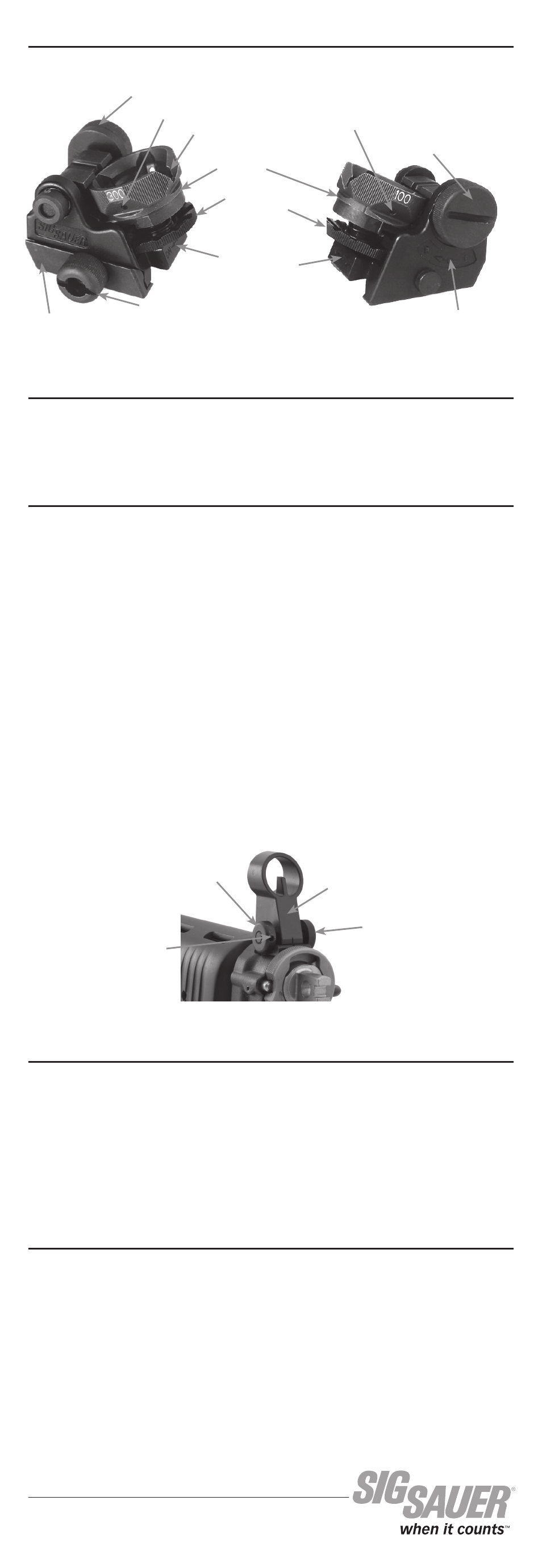

FRONT
REAR
Elevation
adjustment guide
100m aperture
Windage adjustment guide
Rotary drum
CQB aperture
Elevation
adjustment knob
Windage adjustment knob
Mounting clamp nut
300m aperture
Mounting clamp
REAR
Windage adjustment knob
Spring pin
Front sight screw nut
Angled front
Front sight screw
RIGHT SIDE
SIG SAUER ® LIMITED ONE YEAR WARRANTY
SIG SAUER ® warrants that the enclosed accessory was originally manufactured free of defects
in material, workmanship and mechanical function, and agrees to correct these defects by repair,
adjustment or replacement, at the option of SIG SAUER, with items of the same or comparable quality;
provided, however, that the accessory is returned freight prepaid to SIG SAUER at 18 Industrial Drive,
Exeter, NH 03833 by the original purchaser within one year of the date of purchase.
This limited warranty is null and void if the accessory has been misused, damaged (by accident
or otherwise), or if unauthorized repair or any alteration, including of a cosmetic nature, has been
performed on the accessory. This limited warranty does not apply to normal wear and tear of any parts.
Subject to the foregoing, this limited warranty confers the right to have the covered accessory
or its parts repaired, adjusted or replaced exclusively by the original purchaser, which right is
not transferable to any other person. NO IMPLIED WARRANTIES OF ANY KIND, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE MADE
HEREIN, and this warranty does not apply to any accessory items attached or appurtenant to
this accessory. In no event shall SIG SAUER be liable for incidental or consequential damages
arising from or in connection with this limited warranty.
