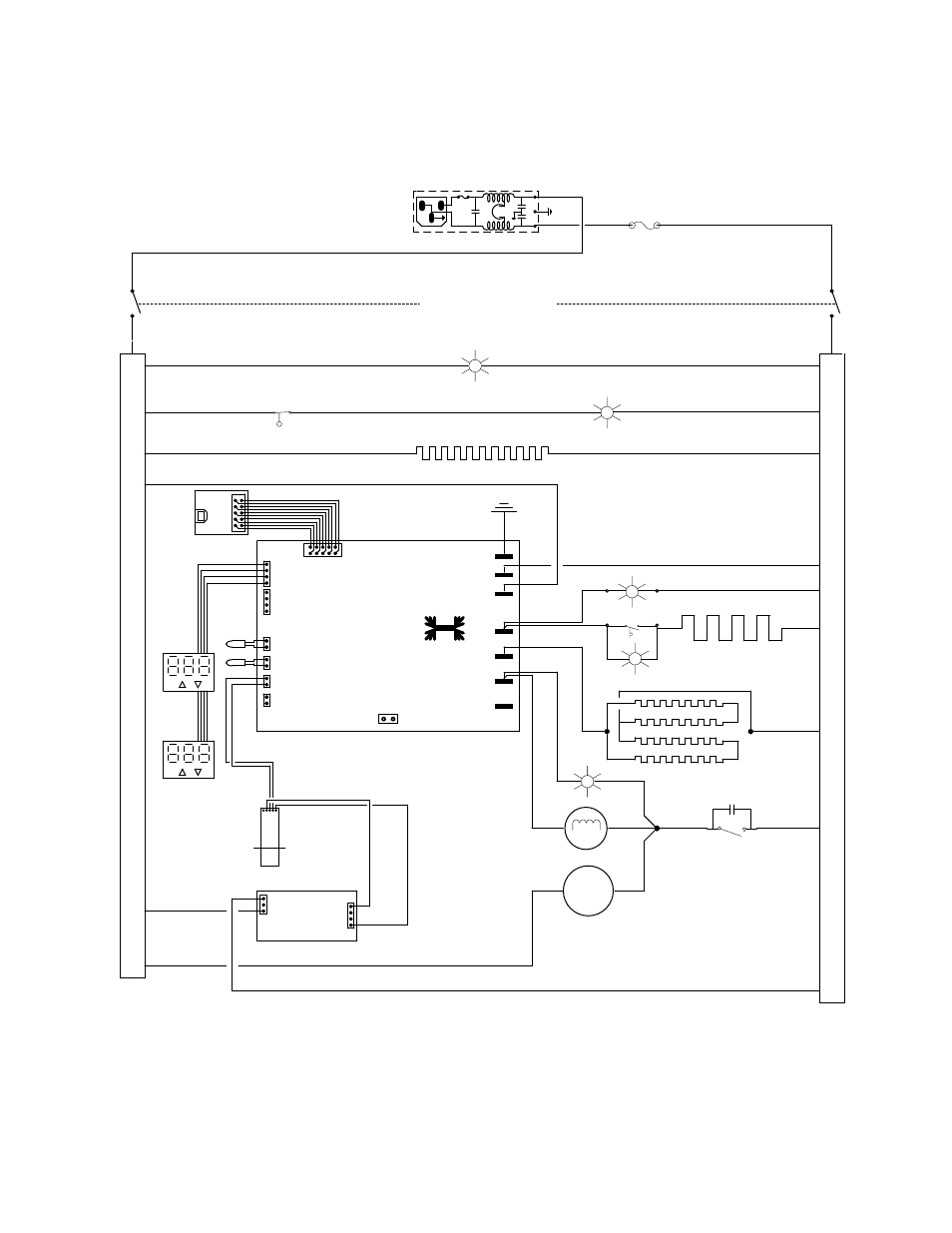

WIRING DIAGRAM
SCOWE6-2 (2406-2) 220-240V
(9851141)
M
POWER SWITCH
SL# 7850553
POWER INLET
6A SL# 4200522
WATER FILL
SWITCH SL# 7850575
WATER FILL INDICATOR
SL# 4650553
CO2 PREHEATER SL# 2350551
6W
HEATING INDICATOR SL# 4650554
OTL SL# 1750860
OTP INDICATOR
SL# 4650553
MAIN HEATING ELEMENT
SL# 2350554
DOOR HEATERS
SL# 2350550
10W
10W
10W
10W
CO2
INDICATOR
SL# 4650553
CO2 SOLENOID
SL# 8600529
CIRCULATING FAN
MOTOR SL# 4880507
4 LOOP CONTROL
BOARD SL# 1750725
TEMP
DISPLAY
BOARD
SL# 1750726
CO2 DIPLAY
BOARD
SL# 1750727
J 8 MAIN TEMP
SENSOR
DOOR
SENSOR J 9
CO2
SENSOR J 1 7
HUMIDITY
SENSOR J 1 6
B
U
S
S
LOAD 1
LOAD 2
LOAD 3
LOAD 4
J1
J2
J3
J4
J5
J6
J7
EARTH GRD
(NEUT)
(HOT)
J10
COMMUNICATION
ALARM CONTACTS
IR CO2 SENSOR
SL# 8320510
12VDC
POWER SUPPLY
SL# 6750507
DOOR SWITCH
SL# 7850578
H
O
T
T
E
R
M
IN
A
L
B
L
O
C
K
N
E
U
T
R
A
L
T
E
R
M
IN
A
L
B
L
O
C
K
USB BOARD
SL# 1750846
BLACK
B
L
A
C
K
BLACK
BLACK
B
L
A
C
K
B
L
A
C
K
WHITE
W
H
IT
E
WHITE
WHITE
WHITE
WHITE
WHITE WHITE
WHITE WHITE
WHITE
WHITE
W
H
IT
E
BLUE
RED
ORANGE
ORANGE
Y
E
L
L
O
W
Y
E
L
L
O
W
BLACK
WHITE
BL HT WH HT
BLACK
WHITE
FUSE HOLDER
SL# 3300501
.47uf
POWER ON LIGHT
4650554
