Note: The shop drawing shows the actual size of the Wall Cabinet (28”
by 24”) and indicates the locations of the holes on the Wall-Hanging
Brackets. You may also want to temporarily tape the drawing to the wall
for marking the locations of the screws. Use a small nail to penetrate
the shop drawing and mark the eight points to fasten the Wall-Hanging
Bracket. After marking locations, pre-drill a small hole (1/8" diameter) at
each of the eight hole locations.
E. Use Screw C (#13) to fasten Wall-Hanging Brackets (#8). Hang the
unit on the Wall-Hanging Brackets (#8) as following pictures show.
ASSEMBLY INSTRUCTIONS
(pg 8 of 12)
Ultra Heavy Duty Wall Cabinet (Model No. 20209)
*Drill a small hole (1/8" diameter) at both stud locations to assure
that the hanging anchor is secured.

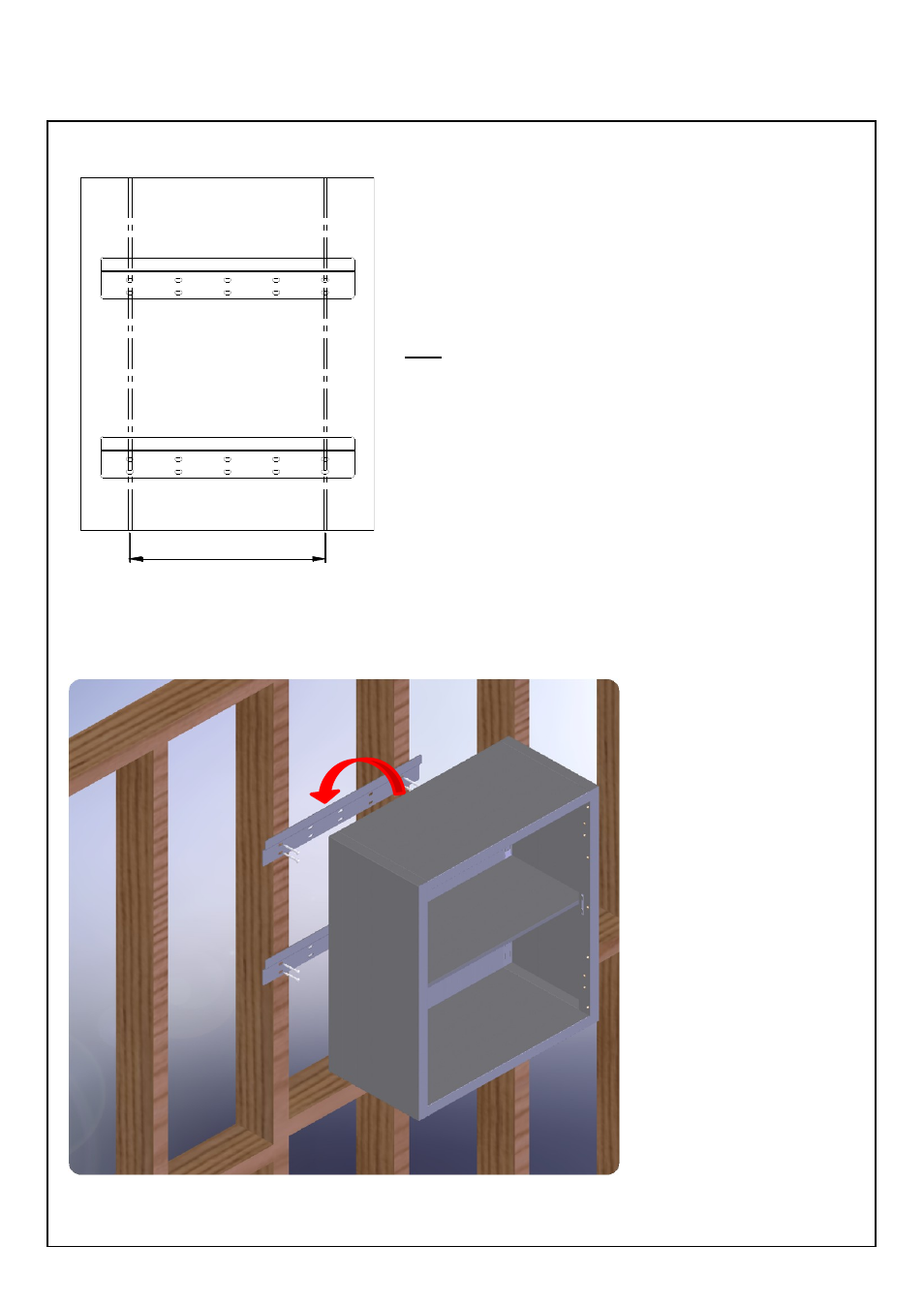

D. To find the rest of the screw holes to fasten the Wall-Hanging
Brackets, please refer to the accompanying shop drawing. Place the
shop drawing on the wall and align the holes in the drawing with those
already drilled in the wall.
Hang Wall Cabinet Wall-Hanging Brackets
16"
1 2
