b. Place the Middle Shelf (#6) into the cabinet
and push down onto the Hooks (#9).
ASSEMBLY INSTRUCTIONS
(pg 5 of 12)
Ultra Heavy Duty Wall Cabinet (Model No. 20209)

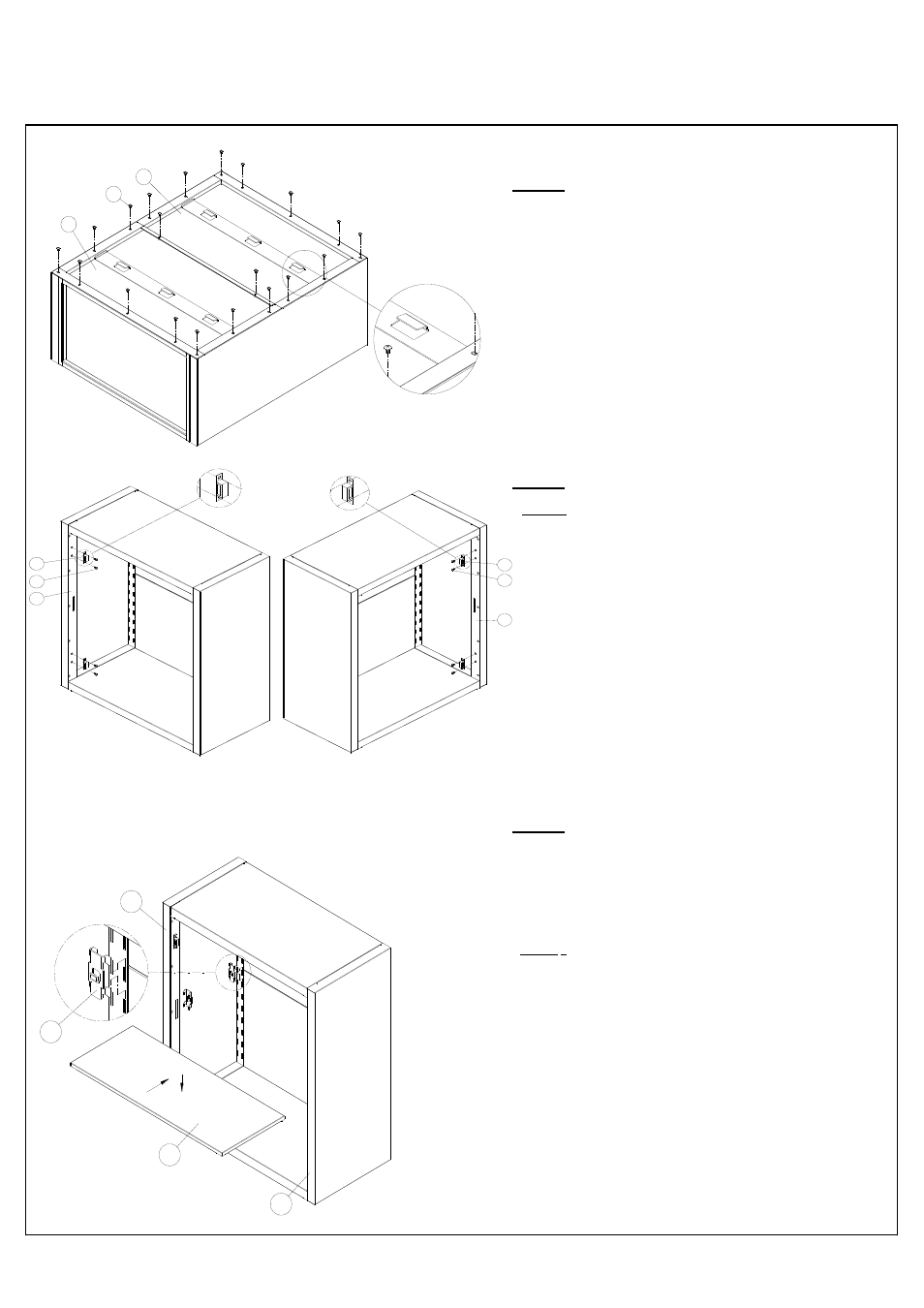

Step 3: Install the Bottom Back Panel (#5)
and Upper Back Panel (#4).
Step 4: Fasten the Magnet (#10).
First place the Bottom Back Panel (#5) onto
the Left Panel (#1), Right Panel (#3) and
Bottom Panel (#2) as the left picture shows.
Now place the Upper Back Panel (#4) onto
the Left Panel (#1), Right Panel (#3) and
Upper Back Panel (4). Line up screw holes
and tighten them using Screw Driver (#14)
and Screw A (#11).
a. Decide the height for the Middle Shelf
(#6),place the Hooks (#9) into the hook
slots and push down.
Note : The Middle Shelf (#6) needs the 4 hooks at
each corner for support. When placing the
hooks, make sure they are at the same height.
(1)
Step 5: Install the Middle shelf (#6).
Note: Decide the door opening direction.
Upright the unit like left picture shows (1) if
you decide to have door opening at left side.
Fasten Magnet (#10) to the Left Panel (#1)
using Screw Driver (#14) and Screw B (#12).
Upright the unit like left picture shows (2) if
you decide to have door opening at right side.
Fasten Magnet (#10) to the Right Panel (#3)
using Screw Driver (#14) and Screw B (#12).
#6
#9
#1
#3
#11
#5
#4
Bottom
Top
#1
#12
#10
#3
#12
#10
