Step 4.
Step 5.
Step 6.
Step 7.
Note:

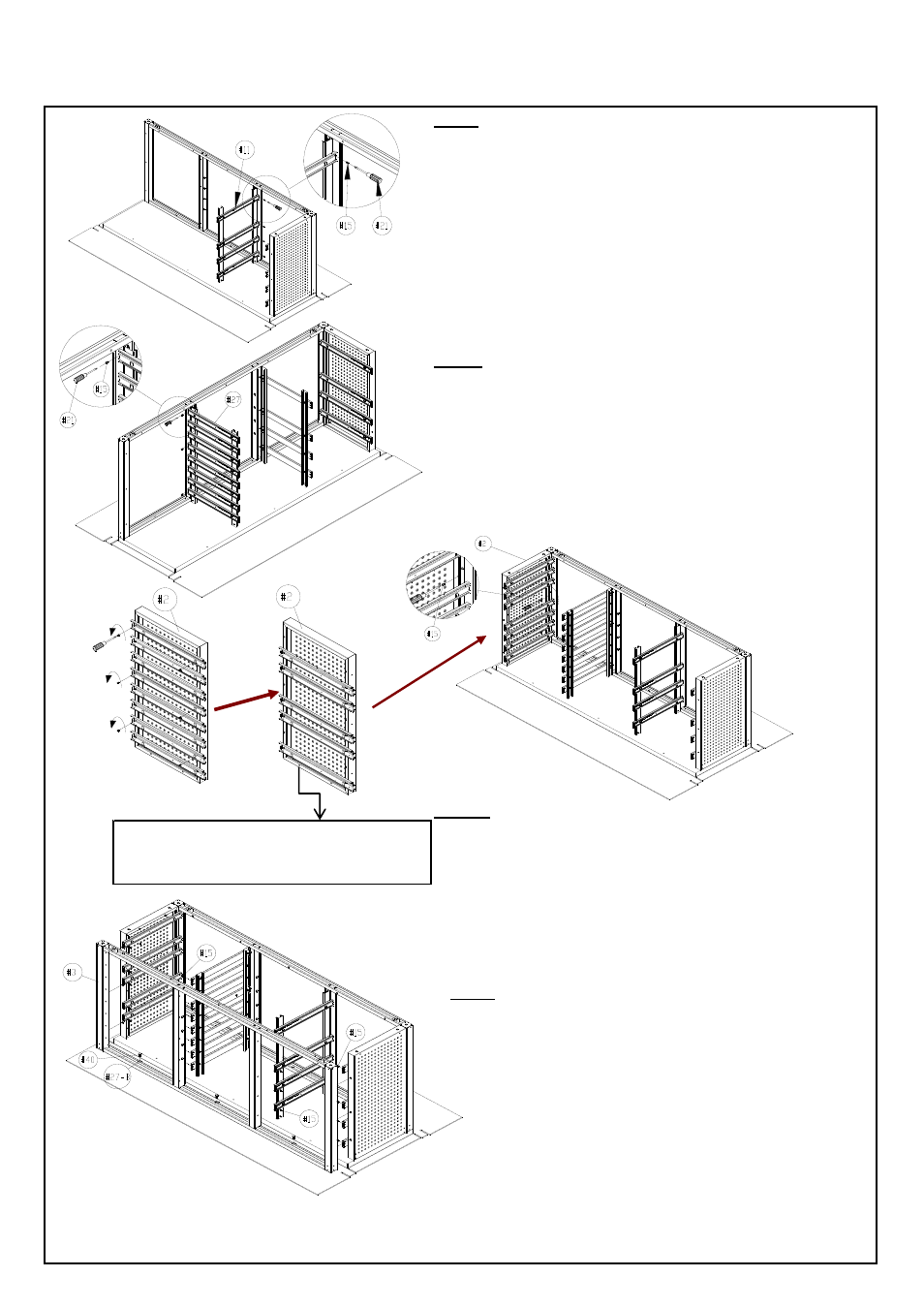

Install the (#27) Small Drawer Slider Support.
[Use (#15) Screw B for this step]. Please remove 3
Drawer Slides (as shown in picture on the left) before
attaching (#2) Right Side Panel to (#4) Back Frame.
Again, place the "Top" of Side Panel on the Solid
Hardwood Top and attach to Back Frame.
Install the (#2) Right Side Panel.
The ball bearing track will have to be pulled out about 1" to expose the screw hole used for
fastening to the (#3) Front Frame.
UltraHD Rolling Workbench Cabinet (Model No. 20242)
(pg 8 of 14)
[Use (#15) Screw B & the (#21) Screwdriver for this
step]. Attach (#27) Small Drawer Slider Support to the
(#4) Back Frame, making sure the "Top" of (#27) Small
Drawer Slider Support is close to the Solid Hardwood
Top. Again, the “Top” is indicated by a sticker on one
of the vertical columns. Note: the Drawer Slide will
face those on the (#1) Left Side Panel also.
Remove 3 Slides to create the space needed
to use (#24) Screwdriver.
[Use (#15) Screw B & (#21) Screwdriver for this step].
Attach (#11) Medium Size & Large Drawer Slider
Support to the (#4) Back Frame, making sure the "Top"
of Medium Size & Large Drawer Slider Support is close
to the (#8) Solid Hardwood Top. Again, the “Top” is
indicated by a sticker on one of the vertical columns.
Note: the Drawer Slides will face those on the (#1) Left
Side Panel.
Install the (#11) Medium Size & Large Drawer Slider
Support .
Install the (#3) Front Frame.
[Use (#15) Screw B and (#40) Screw E & (#27-B)
Washer for this step]. Using (#40) Screw E and (#27-B)
Washer, attach the "Top" of the (#3) Front Frame to
the (#8) Solid Hardwood Top. Then, using (#15) Screw
B, attach the (#11) Medium-Size & Large Drawer Slider
Support & (#27) Small Drawer Slider Support and both
(#1 & #2) Left & Right Side Panels to the (#3) Front
Frame.
