SeaLand 711-M28 Toilet - Manual (Page 2)

2
RecoMMeNdATIoNS
SpecIfIcATIoNS
product Name: 711-M28 SeaLand Marine Toilet
Shipping Information:
Carton Sizes:
Toilet
21" x 18-1/2" x 13-1/2"
(533mm x 470mm x 343mm)
Tank 19-1/4" x 17-1/2" x 11-1/2"
(489mm x 445mm x 292mm)
Weight Approx. 49 lbs. (22Kg)
System:
Average water consumption per flush 1 Qt. (.95L)
Minimum water consumption per flush 1 Pt. (.47L)
Holding tank capacity . . . . . . . . . . .9.5 Gal. (36L)
Fresh water supply pressure . . . . . . . . . 5-80 PSI
Water inlet size . . . . . . . . . . . . . . . . . . . .1/2" NPT
Holding tank discharge fitting . . . . . . . 1-1/2" NPT
Vent fitting. . . . . . . . . . . . . . . . . . . . . . . 5/8" Barb
Unit weight . . . . . . . . . . . . . . . . . . 41 Lbs. (19Kg)

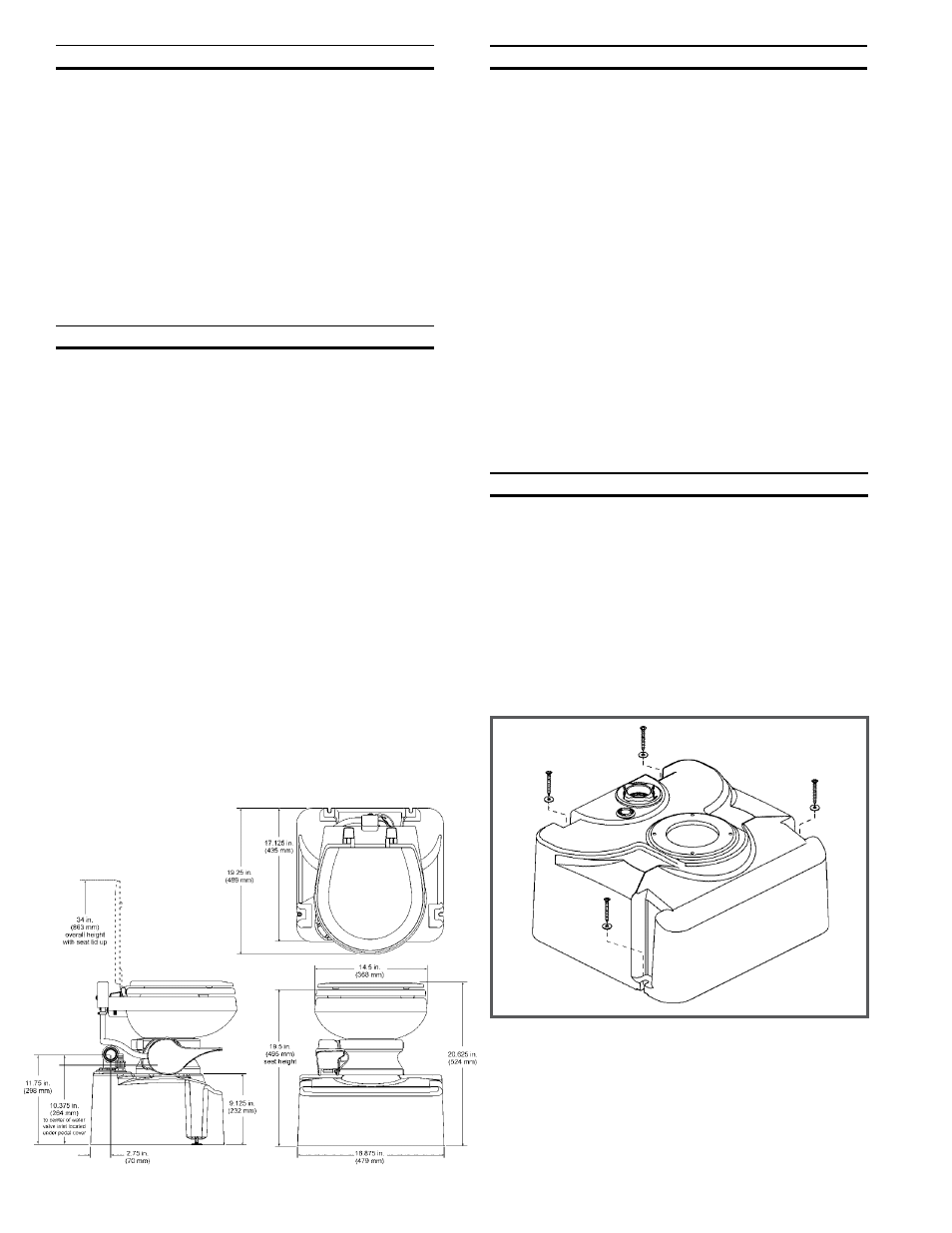

dimensions:
1. Read the “Operating Instructions” section of the
manual carefully.
2. Make sure all guests understand the operation of
the SeaLand toilet.
3. Carry a few spare parts for the maintenance pur-
poses. Dometic has developed several repair kits
that will save you both time and expense should a
problem occur. See “Customer Service” section of
this manual.
4. Use only SeaLand brand ® Tissue and SeaLand ®
brand Holding Tank Deodorants to maintain a
trouble-free system.
5. Do not use chlorine or caustic chemicals, such as
laundry bleach or drain opening types, in the
system. These products damage the seals in
toilets.
6. Do not flush foreign objects through the toilet.
7. Do not allow small problems to go unsolved. As
soon as a problem is detected, correct it.
INSTALLATIoN INSTRucTIoNS
Tank:
1. Select position in bathroom where unit can operate
properly. Allow room for using the flush lever and
clearance for raising the seat and lid.
2. Position the tank 3/4" (19mm) away from the wall.
Mark four holes at mounts on tank base. After holes
are marked, remove tank, and drill pilot holes. Slide
tank back into position. Secure the tank with four
#14 x 2" long pan head screws and washers on all
tank mounts.
3. Run 5/8" (16mm) I.D. hose to vent fitting and secure
with hose clamps.
Install thru-hull vent fitting:
(not supplied with unit – SeaLand part number 307236368)
4. Drill hole through the hull, well above water line
and directly above SeaLand toilet. Hole location is
determined by routing and length of hose.
TAbLe of coNTeNTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 2
Recommendations . . . . . . . . . . . . . . . . . . . . . 2
Installation Instructions . . . . . . . . . . . . . . . 2 - 4
Operating Instructions . . . . . . . . . . . . . . . . . . . 4
Maintenance . . . . . . . . . . . . . . . . . . . . . . . 4 - 5
Preparing for Summer Use . . . . . . . . . . . . . . . 5
Model Identification . . . . . . . . . . . . . . . . . . . . . 5
Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Customer Service . . . . . . . . . . . . . . . . . . . . . . 5
Troubleshooting Guide . . . . . . . . . . . . . . . . . . 6
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . 8
