TIP: To position the right side shelf, insert the two

hooks on the side shelf assembly into the two open-

ings located on the upper side right panel (BC).

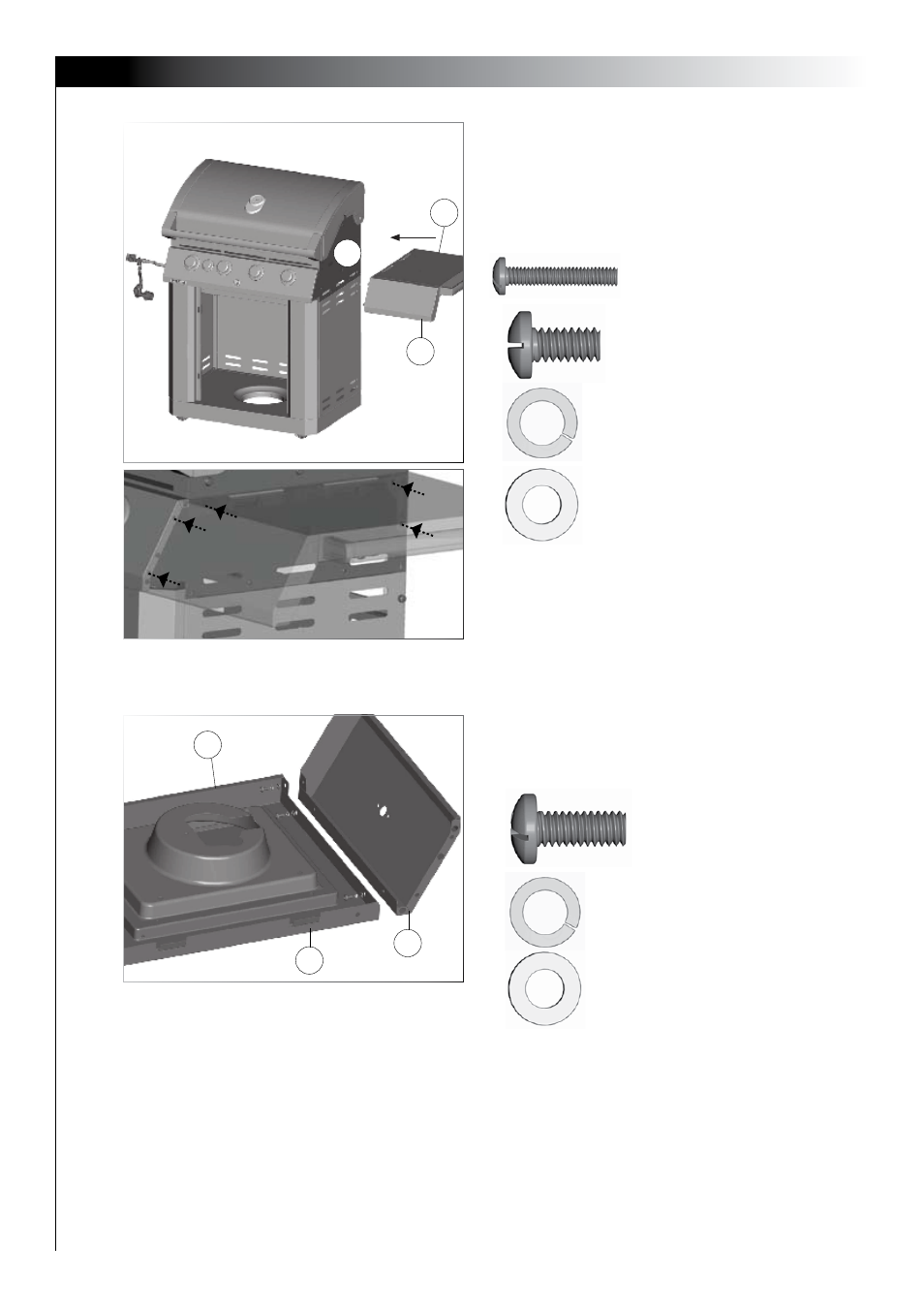

9. Assemble the right side shelf assembly to the cart

assembly, as shown in figure B.

10. Attach the left side shelf fascia (DB) to the left side

shelf table (DA).

ASSEMBLY INSTRUCTIONS

#1 - ¼” x 38mm Screw (x1)

#8 - ø5 Washer (x3)

#6 - NO. 10x10 Screw (x3)

#7 - ø5 Lock Washer (x3)

#2 - ¼” x 16mm Screw (x4)

#4 - ø7 Lock Washer (x5)

#5 - ø7 Washer (x5)

Front
