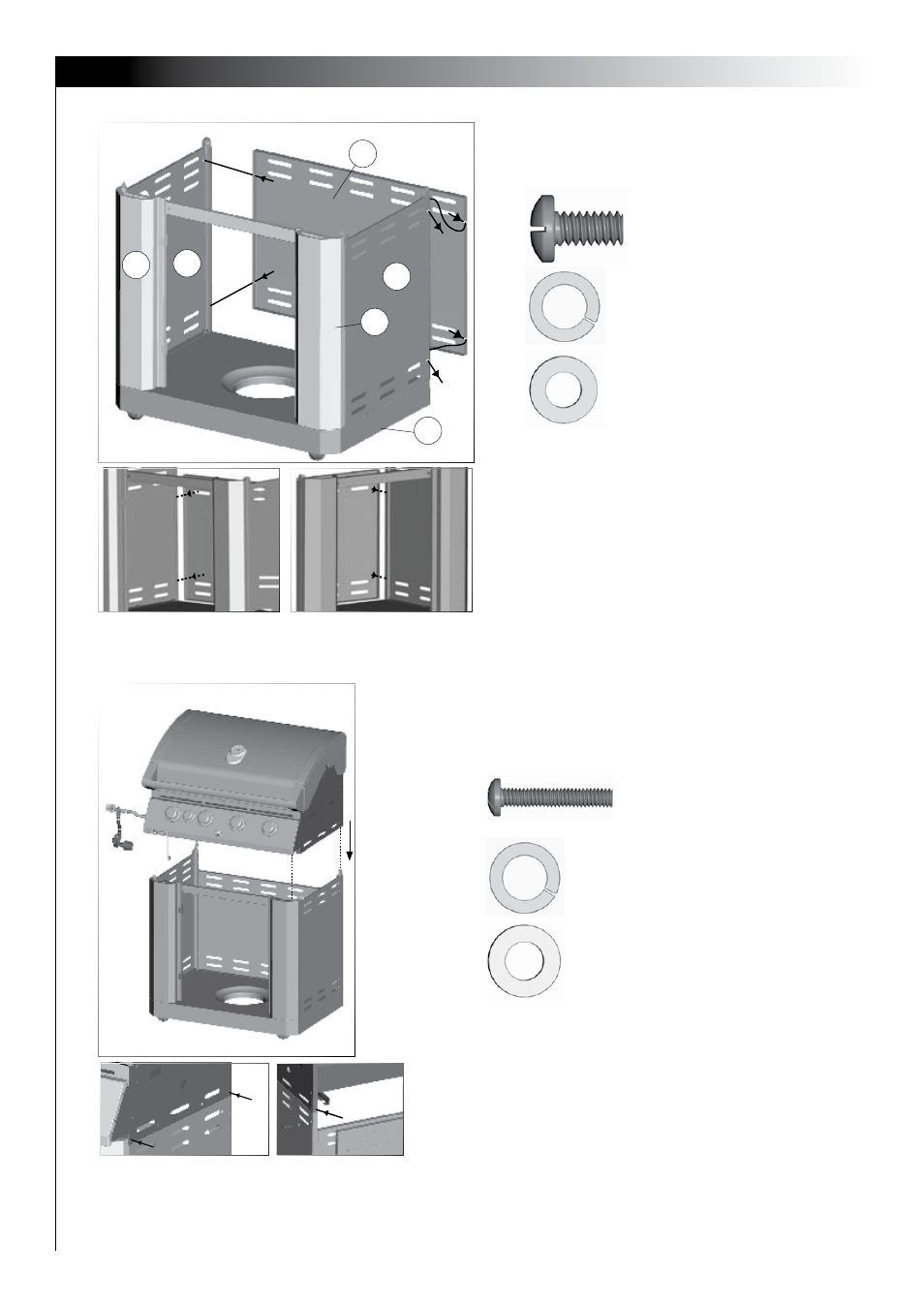

5. Attach the back cart panel (EG) to the rear of the
left and right cart side panels (EA and EB).
#3 - 1/4” × 13mm Screw (x4)
#4 - ø7 Lock Washer (x4)
#5 - ø7 Washer (x4)
B C
5
6
THIS STEP REQUIRES 3 OR MORE PEOPLE.
DO NOT ATTEMPT ALONE. EXTREMELY HEAVY.
6a. Position the top lid and burner box assembly (A and B)
onto cart assembly (C) as shown.
6b. Use the hardware to connect both parts, on the left and
right sides, at the three points indicated in Figure B and C.
#6 - NO. 10x10 Screw (x6)
#7 - ø5 Lock Washer (x6)
#8 - ø5 Washer (x6)
ASSEMBLY INSTRUCTIONS
8
Left side Right side
EG
ED
EH
EB
EA EC
A
C
