7093KL, KR, KT _ _
R o u g h
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS, OR IMPROPER
OPERATION, MAY DAMAGE THE VALVE AND VOID THE WARRANTY.
IMPORTANT: Do not remove the control spindle cover until instructed.
Accidentally turning the control spindle will change the temperature
setting, which is pre-callibrated from the factor y.
Remove the large plastic mud guard from valve. DO NOT discard
plastic mud guard.
Install the tub plug into the bottom outlet. Leave it unplugged if
including a tub spout. For details and diagrams of different
shower/tub schemes, see the Installation Options section.
IMPORTANT: DO NOT SOLDER DIRECTLY TO THE VALVE. THIS WILL
DAMAGE THE SERVICE/CHECK STOPS AND THE TEMPERATURE
CONTROL ELEMENT. USE TEFLON TAPE OR PLUMBER’S PIPE
COMPOUND TO SECURE ALL CONNECTIONS TO THE VALVE.

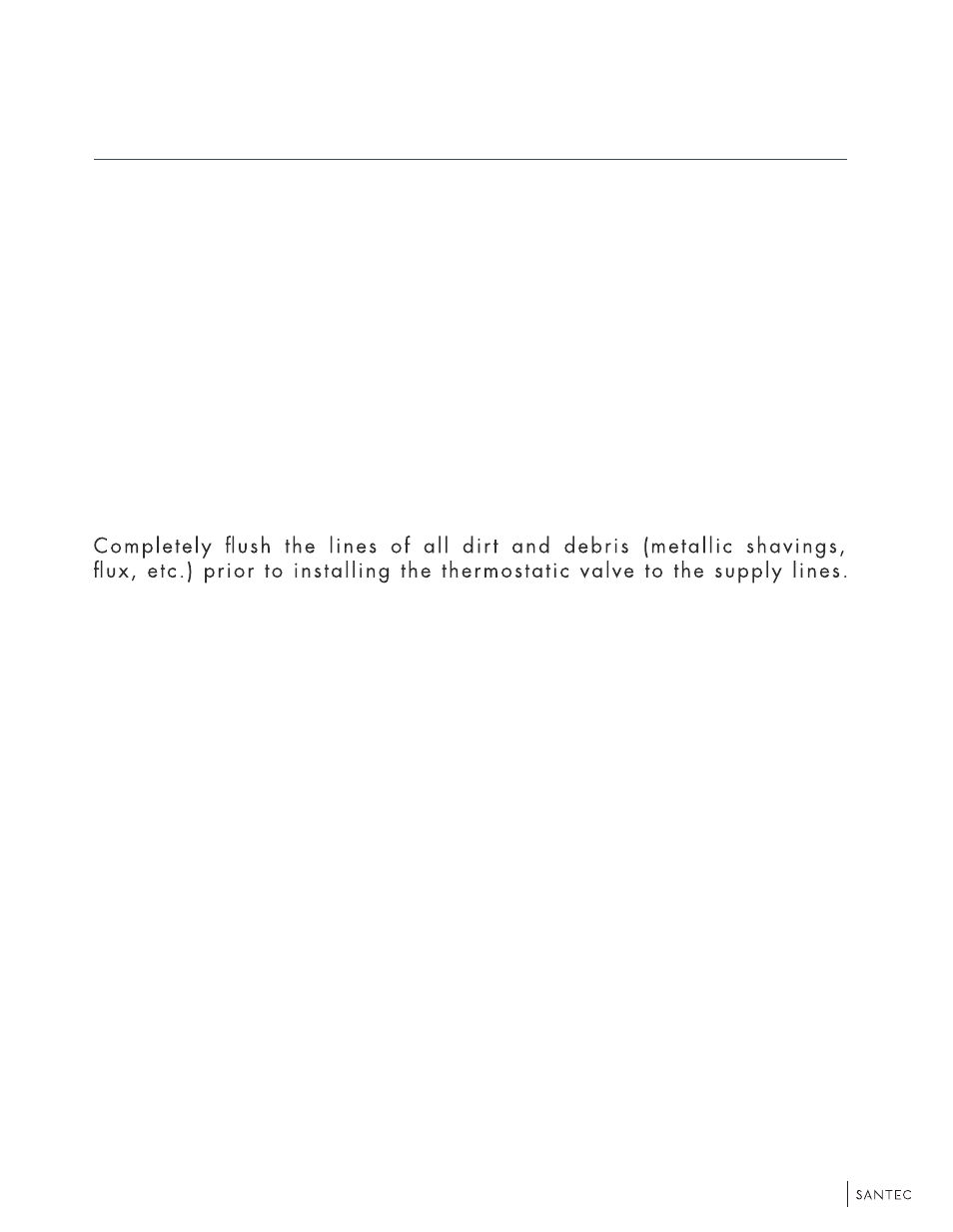

Connect the HOT water supply to the left inlet of the valve (RED) and
COLD supply to the right inlet of the valve (BLUE). See Diagram A.
Secure valve position in the wall using min/max adjustment limits. For
backset measurements see Diagram B.
Connect the top outlet pipe to shower connections and bottom outlet
pipe to tub spout (depending on the shower/tub scheme chosen).
Remove the plastic control spindle cover and install the Temperature
Limiter with the “red mark” positioned exactly at 12 o’clock.
Remember to not turn the control spindle while installing the
Temperature Limiter.
Re-install the large plastic mud guard back onto the valve and do not
remove it until trim arrives.
