7093KL, KR, KT _ _
SANTEC thermostatic valves are suitable for most water heater systems,
provided that it is installed correctly.
Low pressure storage heaters are not recommended for this application.
NOTE. This valve model does not have an integral volume control. Separate
volume control units are required.
Temperature
Maximum temperature
Temperature dial range
Temperature limiter
185 F
50 F to 149 F
set at 100 F
Specif
S p e c i fi c a t i o n s
ications

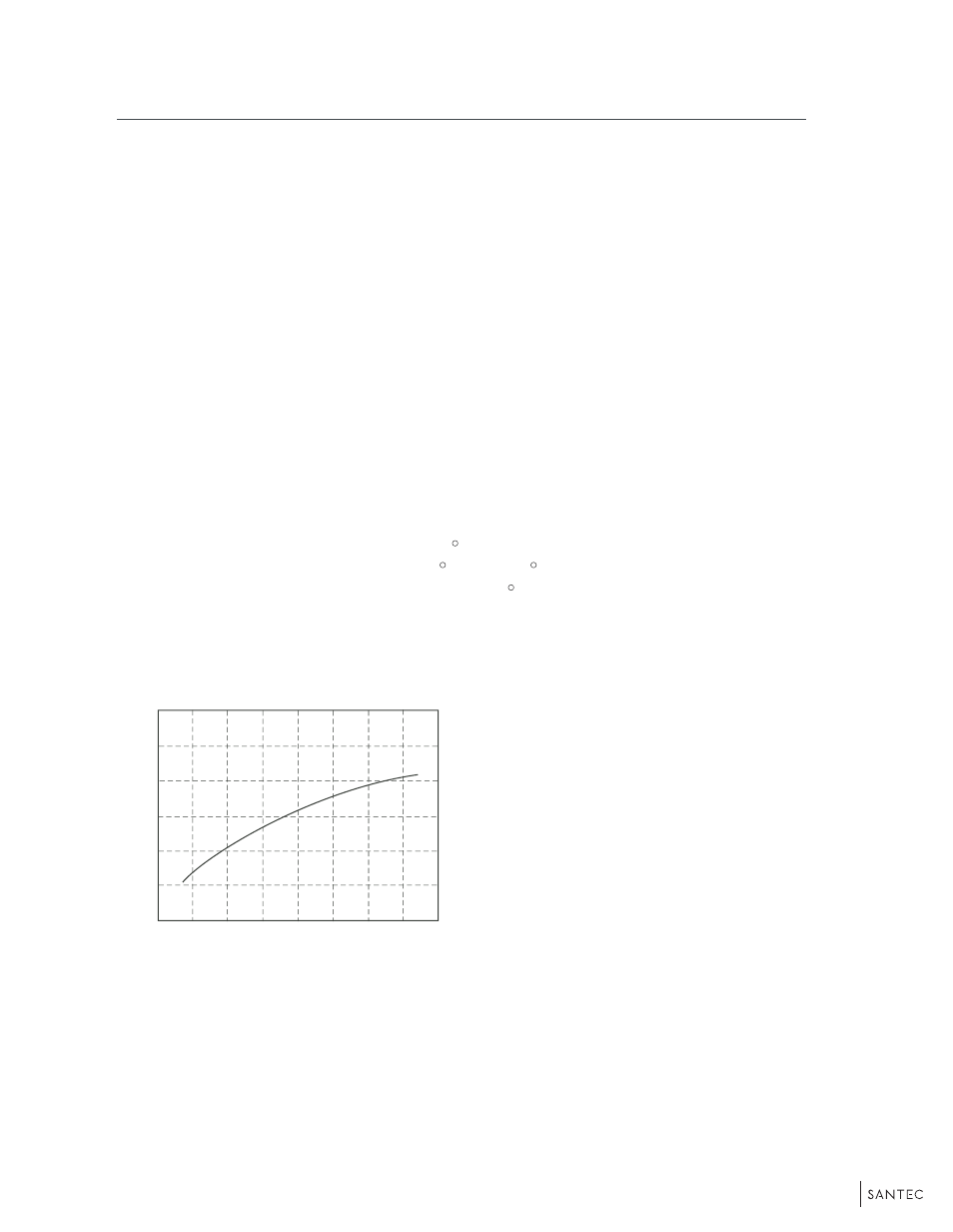

Flow rate chart
Operation Pressure
Minimum
Maximum
1.45
72.5
PSI
PSI
NOTE. For pressure greater than 75 PSI, a pressure reducing valve is
required.
PRESSURE (PSI)
FLOW RATE (GPM)
25
20
15
10
5
0
0
10
20
30
40
50
60
70
General Characteristic
