REMOVING / INSTALLING BODY CAP
The DSMC Canon Mount includes a new body cap.
REMOVAL
1. Rotate the lock ring in the extreme counter-clockwise (unlocked) direction until the Red line on the
lock ring is in the 12 o’clock position.
2. Press the release button to disengage the lock pin from the body cap.
3. While pressing the release button, rotate the body cap counter-clockwise until the Red dot on the
body cap lines up with the Red line on the lock ring.
4. Remove the body cap.

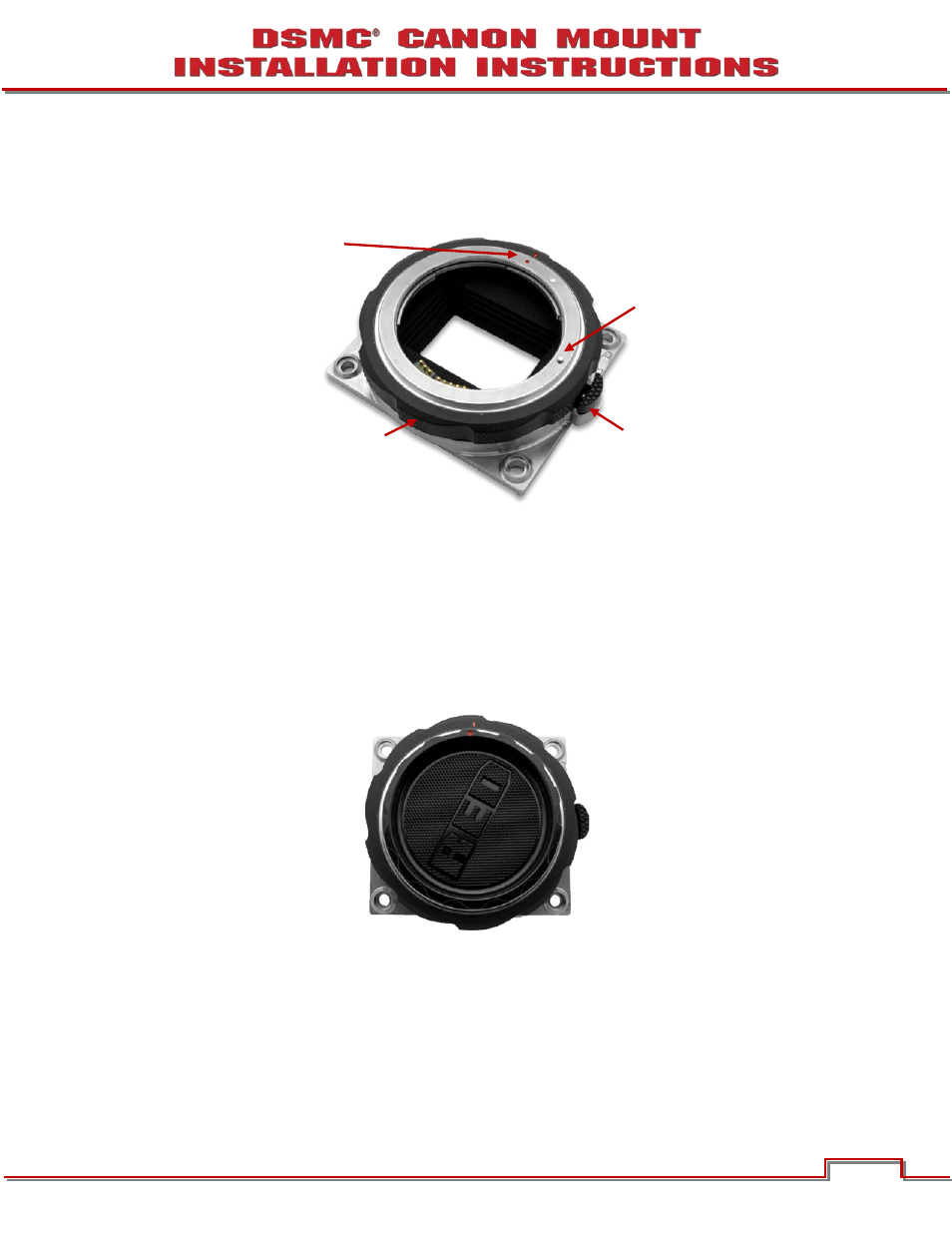

Lock Pin
Release
Button
Lock Ring
Alignment Marks
