RED CANON EOS MOUNT - Manual (Page 7)

DECEMBER 18, 2011 © 2011 RED.COM INC.
5
4. Remove the DSMC Ti PL mount from the camera brain.
5. Removal of the DSMC Ti PL mount is complete.
INSTALLING DSMC CANON MOUNT

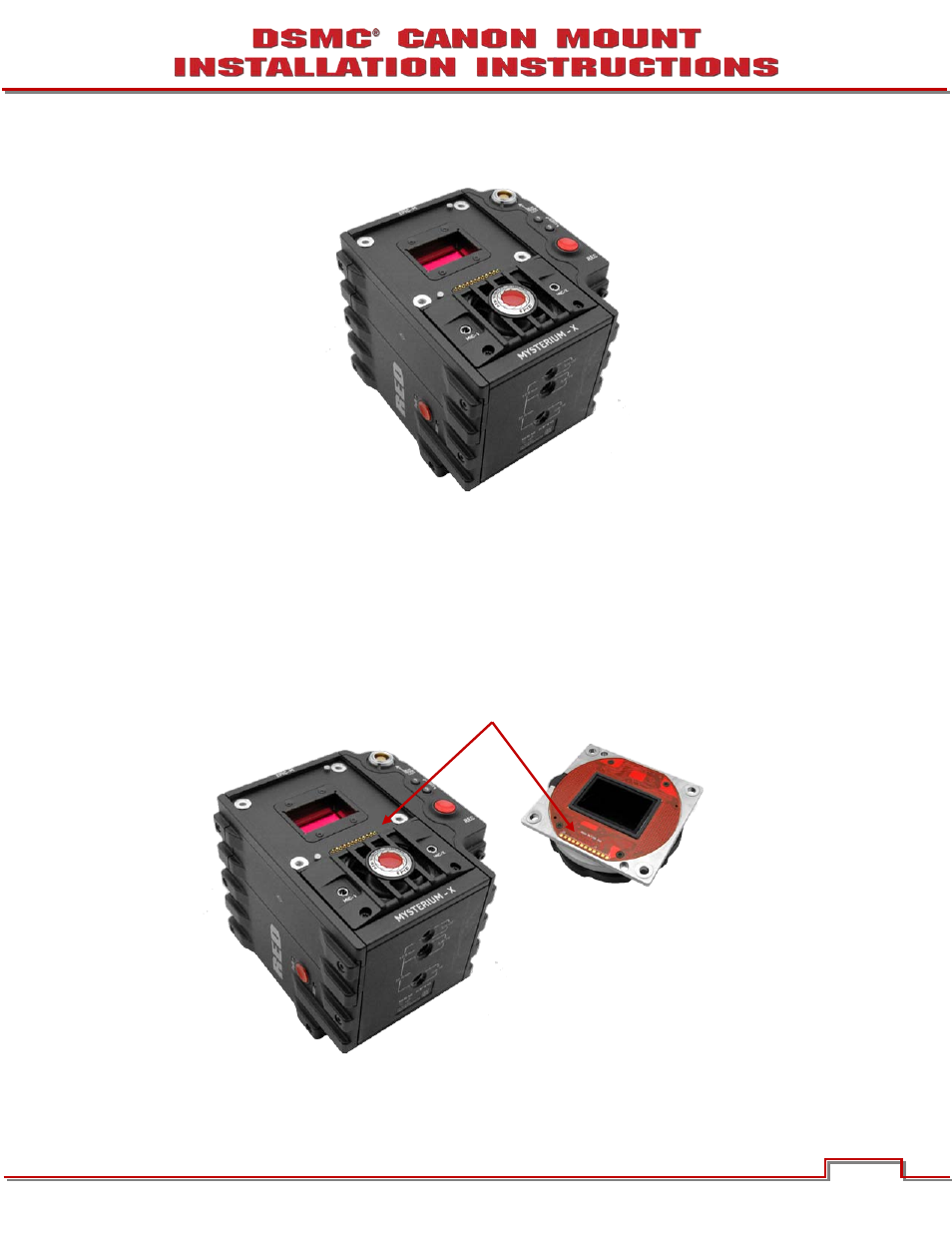

1. Orient the DSMC Canon Mount with the i-Pins in the camera body lined up with the i-Pins on the
DSMC Canon Mount.
2. Place the DSMC Canon Mount on the camera brain. Ensure the mount sits flush in the mount recess
on the camera brain.
i-Pins
