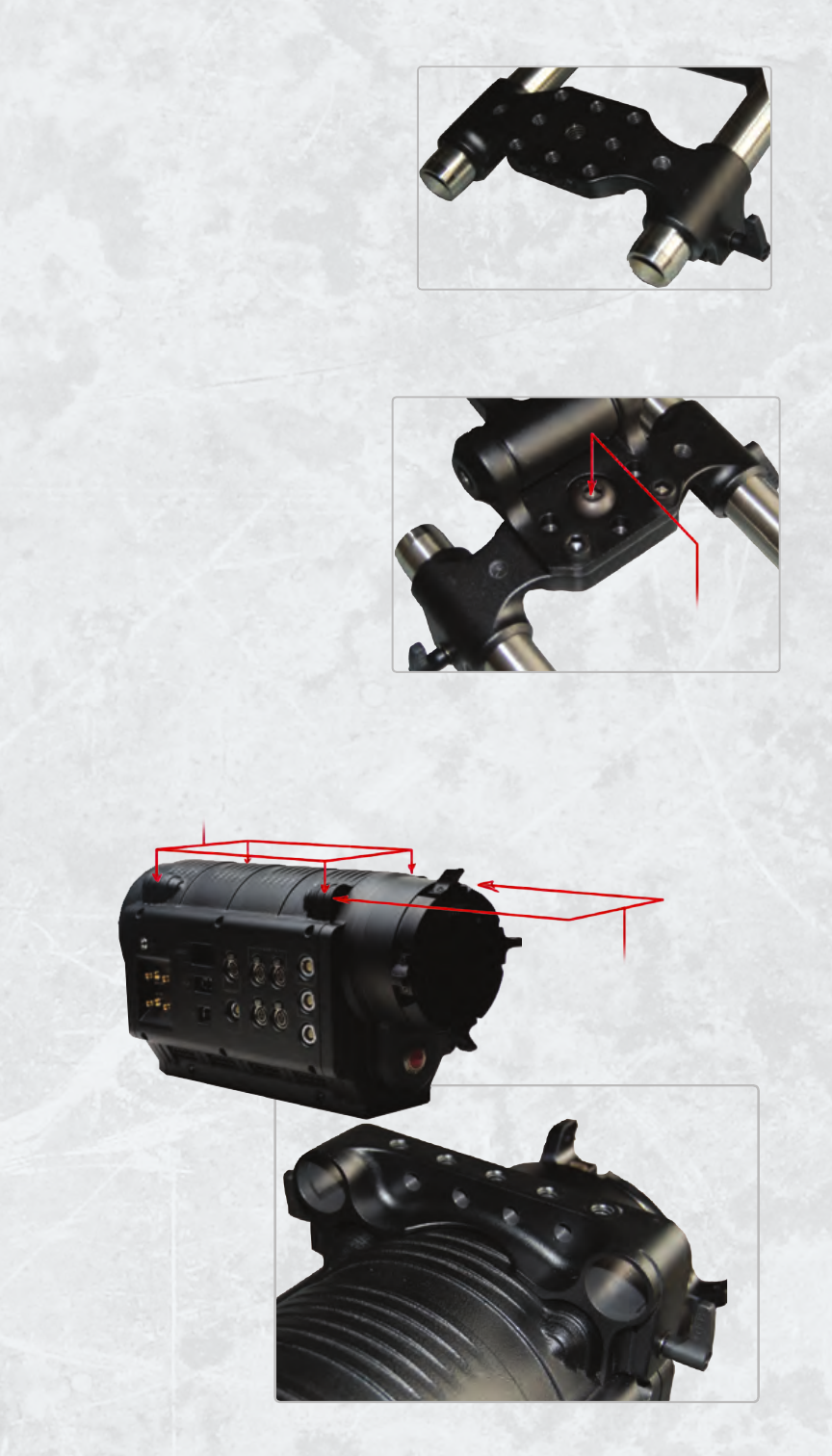

TOP MOUNT
INSTALLED
7. Assemble universal mount, wing nuts
and washers - do not tighten.
8. Slide universal mount over rods at
rear of camera leaving approx. 1/2”-
3/4” of rods exposed at end. Lock in
place using wing nuts.
9. Extend attachment arm on cradle assembly and install base to universal mount using
one (1) button-head Allen bolt (and two (2) Allen bolts, if desired).
10. Adjust and secure cradle assembly.
11. Assemble top mount, wing nuts and washers - do not tighten.
12. Place top mount over threaded mounting points located at front of camera and attach
using two (2) Allen bolts.
ATTACH TOP-MOUNT
TO THESE 2 POINTS
4 - 1/4 X 20
MOUNTING POINTS
CRADLE MOUNT INSTALLED
ON UNIVERSAL MOUNT
5/8 X 16
BUTTON-HEAD
CAP-SCREW
UNIVERSAL MOUNT
INSTALLED
