8 955-0010, Rev-B

/

COPYRIGHT © 2012 RED.COM, INC

PRO I/O MODULE

OPERATION GUIDE

EVF/LCD Connector

EVF/LCD

• Custom digital video and power intercon-

nection between the camera and a RED

EVF or RED LCD Monitor

• The pin-out of this interface is not pub-

lished

• Contact RED technical support for avail-

able RED EVF cable lengths

SPECIFICATIONS

WEIGHT

2.4 lbs

CURRENT DRAW

24W when used with RED 5” LCD TOUCHSCREEN

AUXILIARY POWER OUTPUT

1.5 Amp continuous load at 11.5-17VDC

TEMPERATURE RATING

Operating Range: 0°C to +40°C (32°F to 104°F)

Storage Range: -20°C to +50°C (-4°F to 122°F)

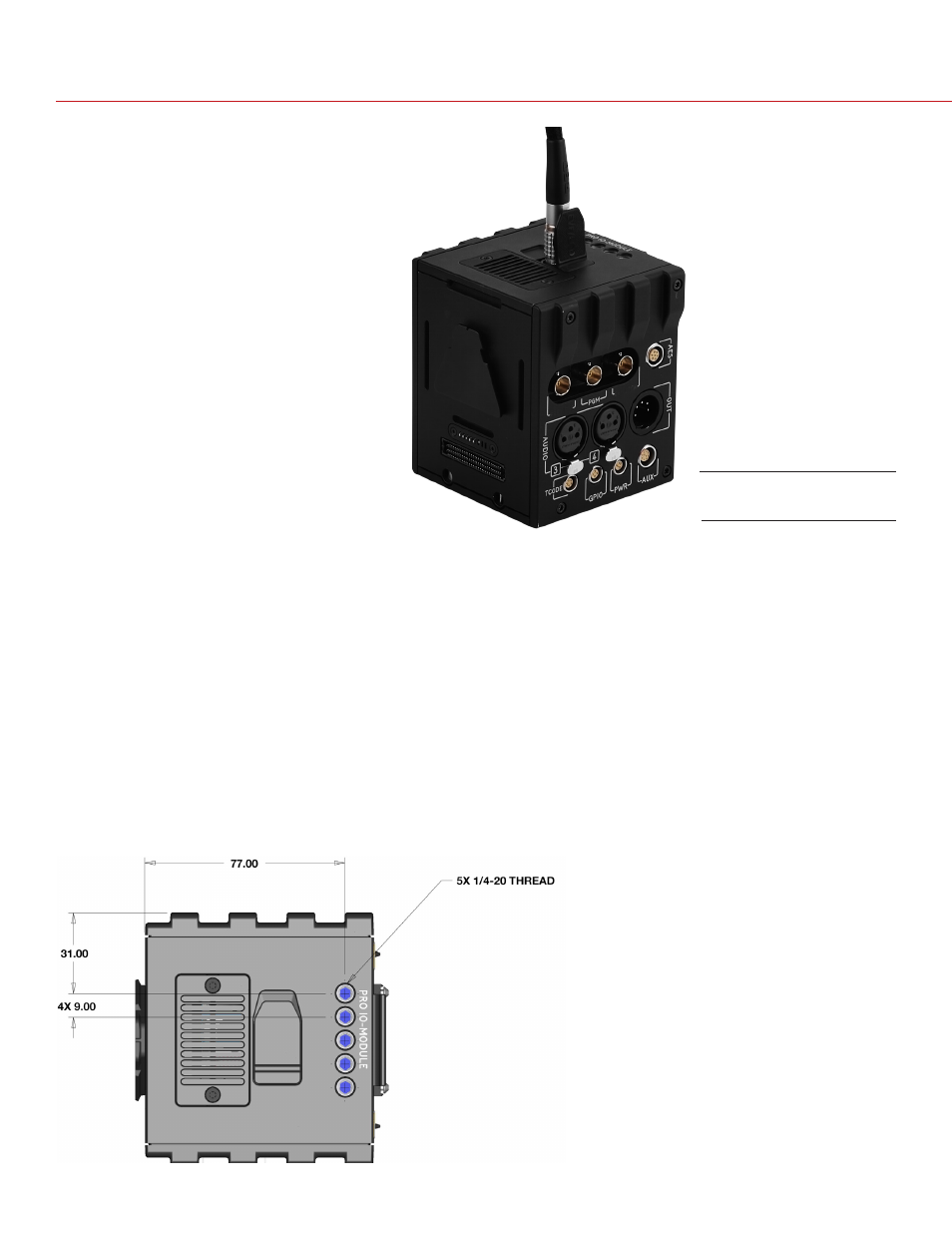

DIMENSIONED DRAWINGS

Unless otherwise specified dimensions

are in millimeters
