6 PRG NODE PLUS USER MANUAL
Included Items

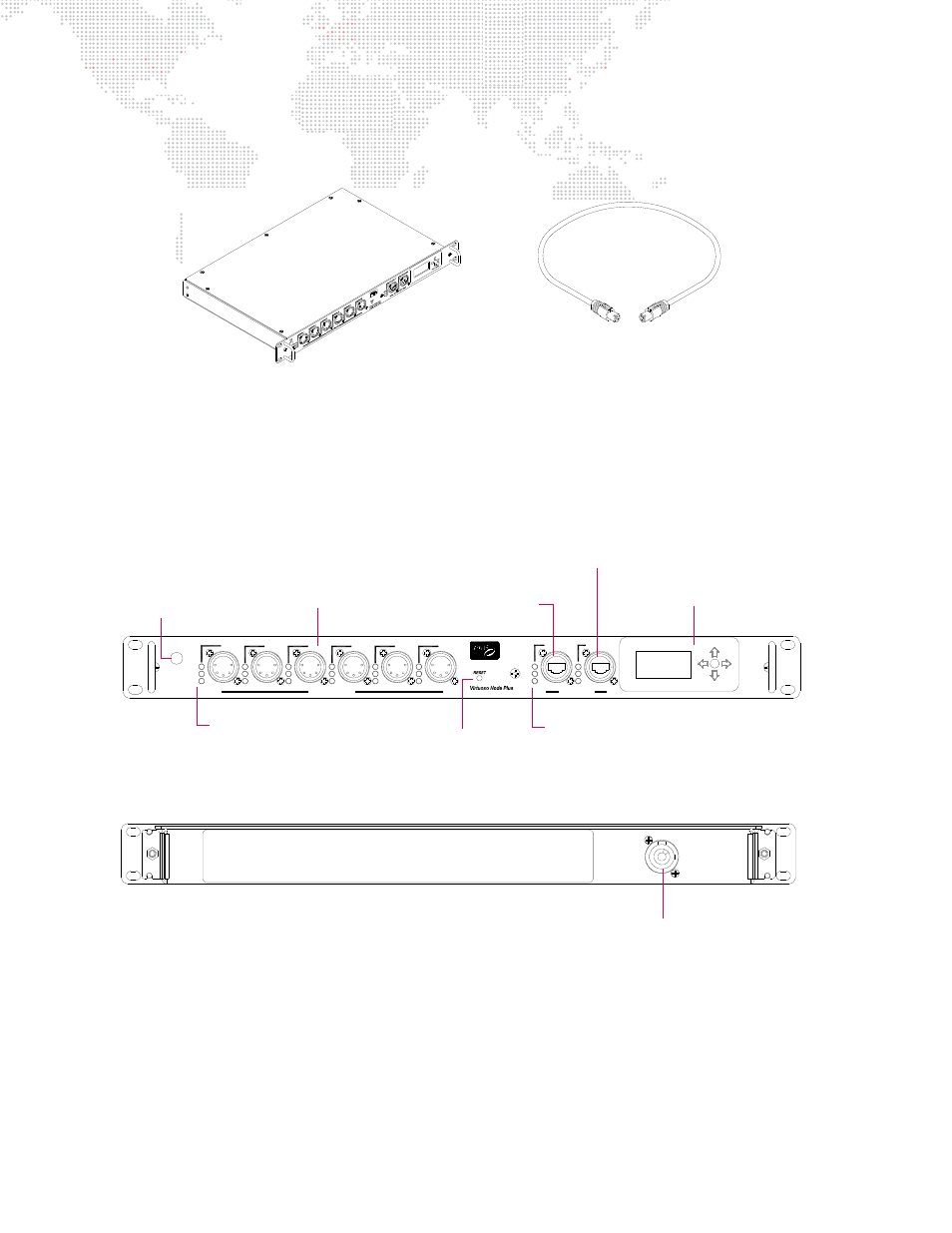

The following illustration shows all items included with the PRG Node Plus unit.
Figure 1: Included Items
Controls and Indicators
The PRG Node Plus contains the following components:
Figure 2: Controls and Indicators
AC Line Cord 208V
PRG Node Plus
(20.9801.0300)
PowerCon® Cable Assembly
(25.9801.0214)
RDM Rx
RDM Tx
DMX OUTPUTS
ON
DMX Tx
Tx
ETHERNET
MODEL 20-9801-0300
Rx
LINK
DMX OUT VIRTUOSO 1 3 2 6 5 4
Push to Select Push to Select Push to Select
DMX512 Output
DC Power
Input LED
DMX Tx, RDM Tx and
RDM Rx Status LEDs
Menu Display and
Software Control
Link, Tx Data, and Rx
Data Status LEDs
(for each Ethernet port)
(for each DMX port)
Neutrik Connector -
Allows connection of AC Line Cord
208V PowerCon Cable (supplied).
FRONT PANEL
REAR PANEL
Reset Button
RJ-45 Ethernet Connector
(Art-Net Output)
RJ-45 Ethernet Connector
(Vx76, Virtuoso, or Art-Net Input)
Ports (6)
