PRG NODE PLUS USER MANUAL
Art-Net (Series 400)
In the Art-Net (Series 400) configuration, an Art-Net compatible control console may be connected to one or more
PRG Node Plus units.
Guidelines:
+
When connecting an Art-Net compatible console and multiple PRG Node Plus units, a 100Mb Ethernet switch or
hub
must
be used. Standard CAT5e Ethernet cables should be used in this configuration. Refer to the illustration
below.
+
The Series 400 Mode of operation should be used in this configuration. Refer to
+
When using a Node in this way, there are some important considerations that should be observed during setup
and operation. Refer to
+
When using a Node as an Art-Net-to-DMX device, note that the Art-Net output does not pass data; it only mirrors
the DMX outputs. It is not possible to place the Art-Net output on the same network as the Art-Net input.

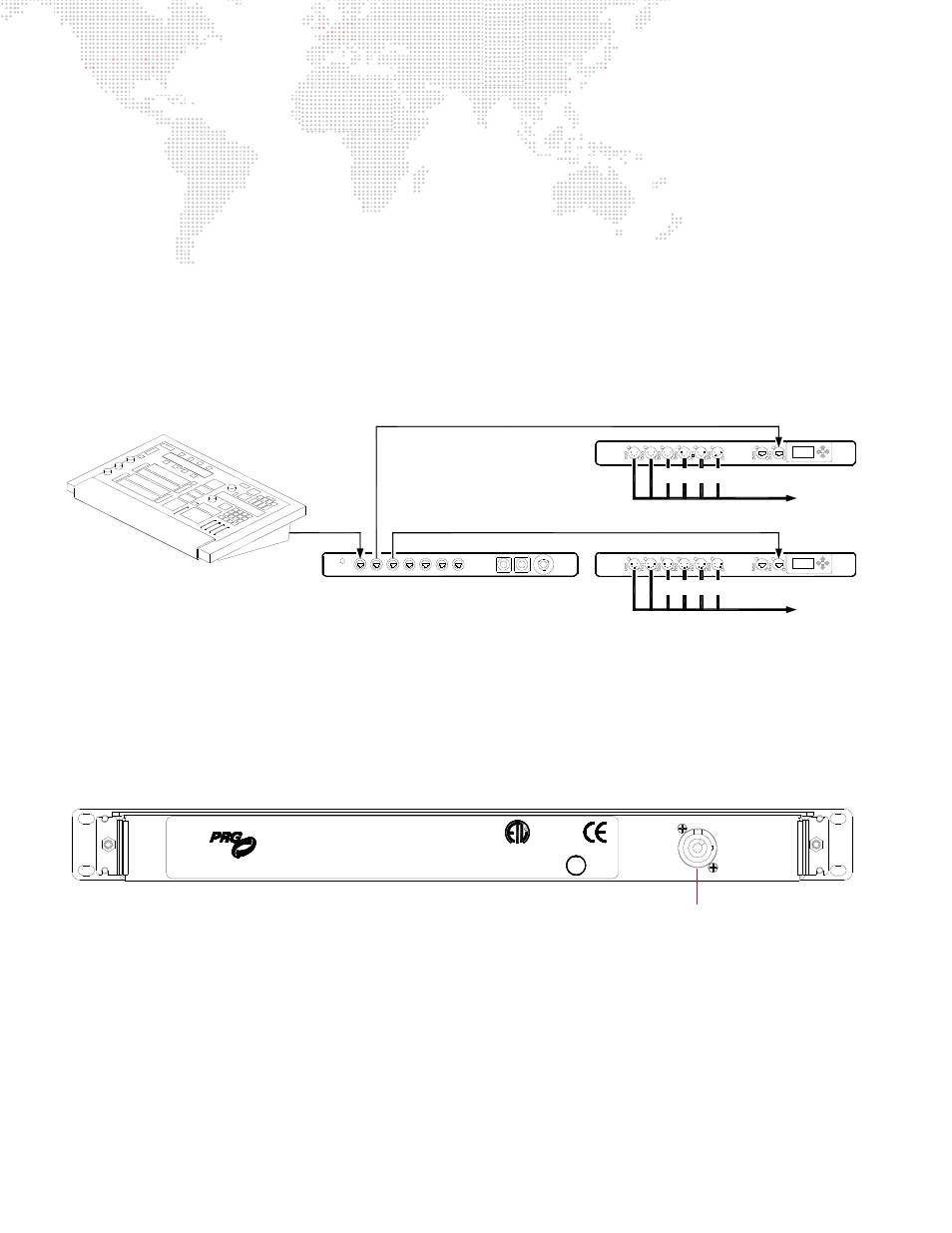

Figure 6: Art-Net (Series 400) Configuration Example
AC Input
Connect the AC Line Cord power cable assembly to the rear panel Neutrik® PowerCon® connector.
Figure 7: Connecting AC Input Cable
Power Up Procedure
To power up the Node Plus unit and set its address:
Step
1. Once the AC input cable is connected and power is applied, the unit will receive power. (It does not have a
power on/off switch.)
Step
2. Using Menu Display controls, set Node Plus thumbwheel starting address (refer to
Ensure that addresses are unique among all Nodes in system.
(ARTNET) CONSOLE
DMX512-OVER-ETHERNET
6x XLR DMX512 Data Cable
PRG NODE PLUS
6x XLR DMX512 Data Cable
PRG NODE PLUS
CAT5e
* PRG Belden Ethernet cable or equivalent
PRG 7-PORT (COPPER) ETHERNET SWITCH
PRG 10-PORT (FIBER) ETHERNET SWITCH
or
Art-Net Protocol
CAT5e Ethernet Cable *
3077774
