PRG NODE PLUS USER MANUAL
9
Virtuoso NIF
In the Virtuoso NIF configuration, one or two Virtuoso control consoles may be connected to one or more PRG Node
Plus units through a NIF.
Guidelines:
+
When connecting one Virtuoso console/NIF and one PRG Node Plus unit, an Ethernet Crossover cable
(25.9651.0566)
must
be used instead of an Ethernet switch or hub.
+
When connecting two Virtuoso consoles/NIFs and up to three PRG Node Plus units, a 100Mb Ethernet switch or
hub
must
be used. Standard CAT5e Ethernet cables should be used in this configuration. Refer to the illustration
below.
+
The Virtuoso Mode of operation is used in this configuration. Refer to
+
The PRG Node Plus unit can only be used with Virtuoso consoles running software version 5.6 or greater.

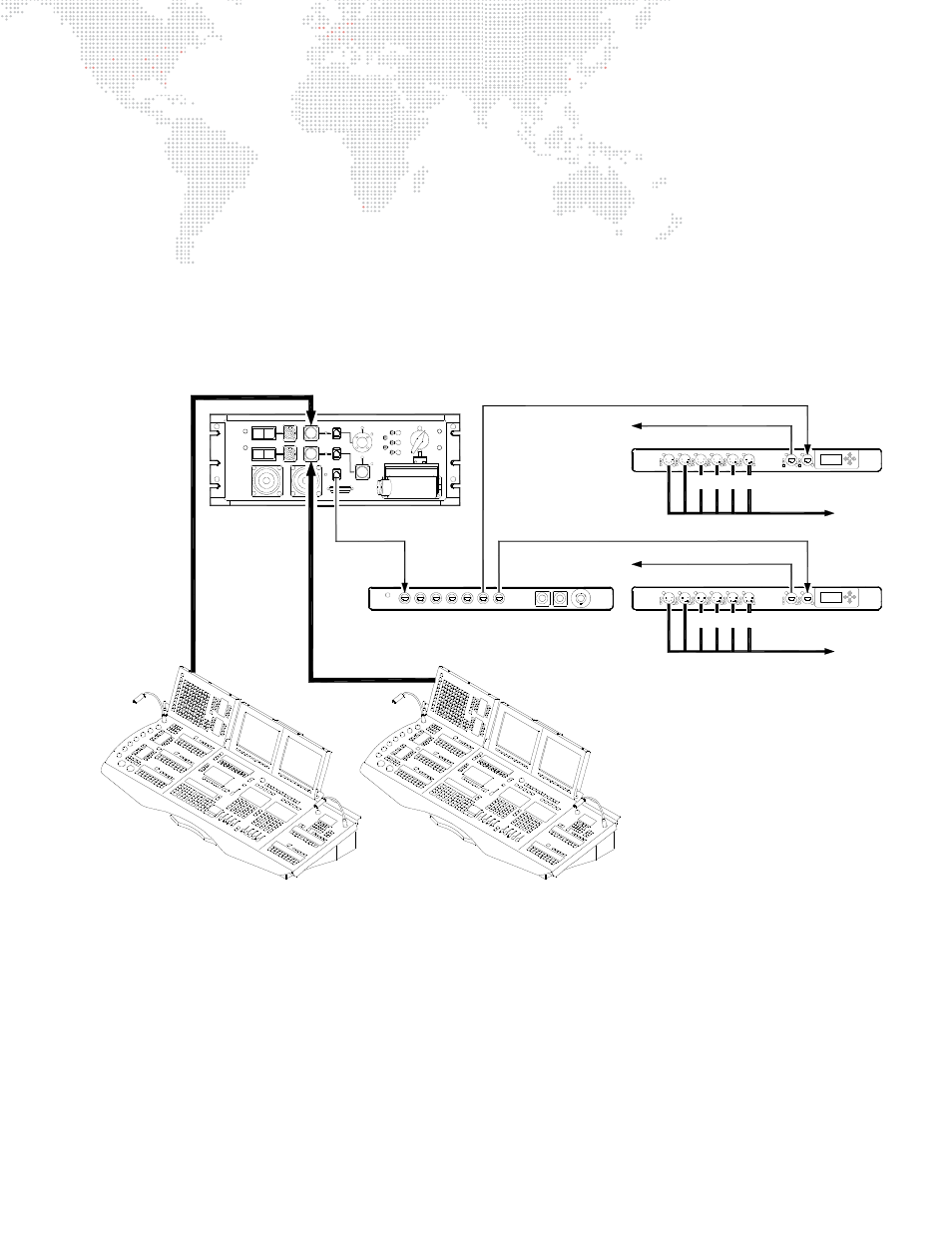

Figure 5: Virtuoso NIF Configuration Example
B
A
VIRTUOSO CONSOLE "A"
* PRG Belden Ethe rnet cable or equivalent.
PRG 10-PORT (FIBER) ETHERNET SWITCH
CAT5e
6x XLR DMX512 D ata Cable
PRG NODE PLUS
Virtuoso Protocol CAT5e *
Fiber Optic Cable **
** Console may be connected by CAT5e Ethe rnet
+ Each NIF has a limit of 3 Node Plus connections.
NIF UNIT +
or
Virtuoso Protocol CAT5e *
VIRTUOSO CONSOLE "B"
Fiber Optic Cable **
Cable instead of F iber Optic Cable.
PRG 7-PORT (COPPER) ETHERNET SWITCH
Art-Net DMX
(to S400 Rack)
(to S400 Rack)
PRG NODE PLUS
6x XLR DMX512 D ata Cable
Art-Net DMX
