OHM™ LIGHT USER MANUAL 7
FIXTURE OVERVIEW
OHM Components and Controls
OHM is a powerful light fixture that incorporates sixteen of Gekko's high quality, kleer colour® LED arrays. This LED
source provides the user with a large volume of white light at a stable and repeatable CCT, emulating traditional
sources.
The OHM Light can be controlled via the
MMI (Man-Machine Interface) attached to
the side of the fixture, or via an external
DMX512 that can communicate with the
fixture through a control port located on
the local controls.

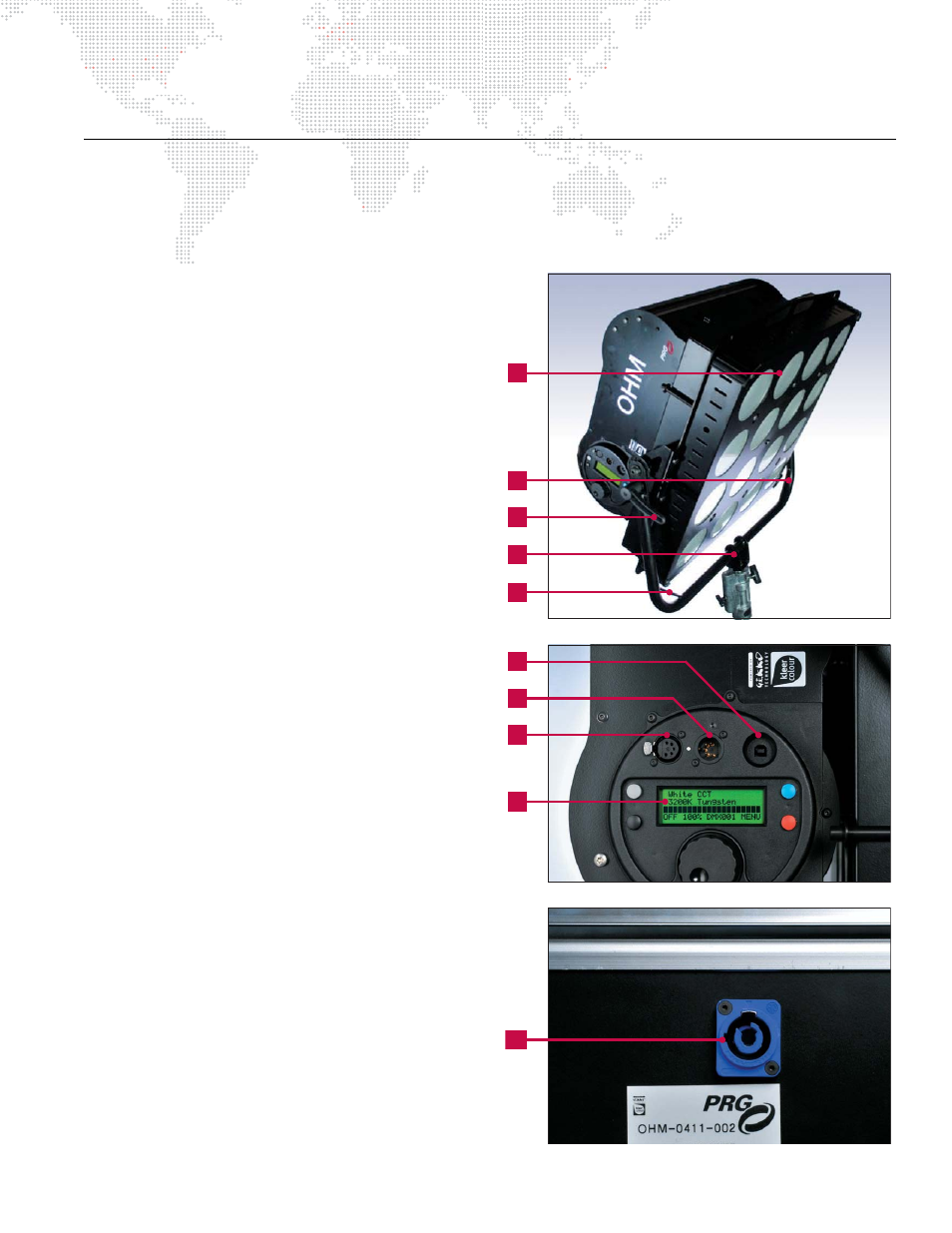

OHM Features:
[1] Optics/LED Source
[2] Yoke
[3] Locking Handle
[4] Spigot/Lifting Eye
[5] Yoke Cable Slots
[6] Comms Port
[7] DMX In Port
[8] DMX Thru Port
[9] MMI (Man-Machine Interface)
[10] Neutrik Power Cable Port
MMI Controls for:
+ Color - CCT
+ Color - Gekko
+ DMX Address
+ DMX Mode
+ Information
+ Maintenance
10
1
2
3
4
5
6
7
8
9
