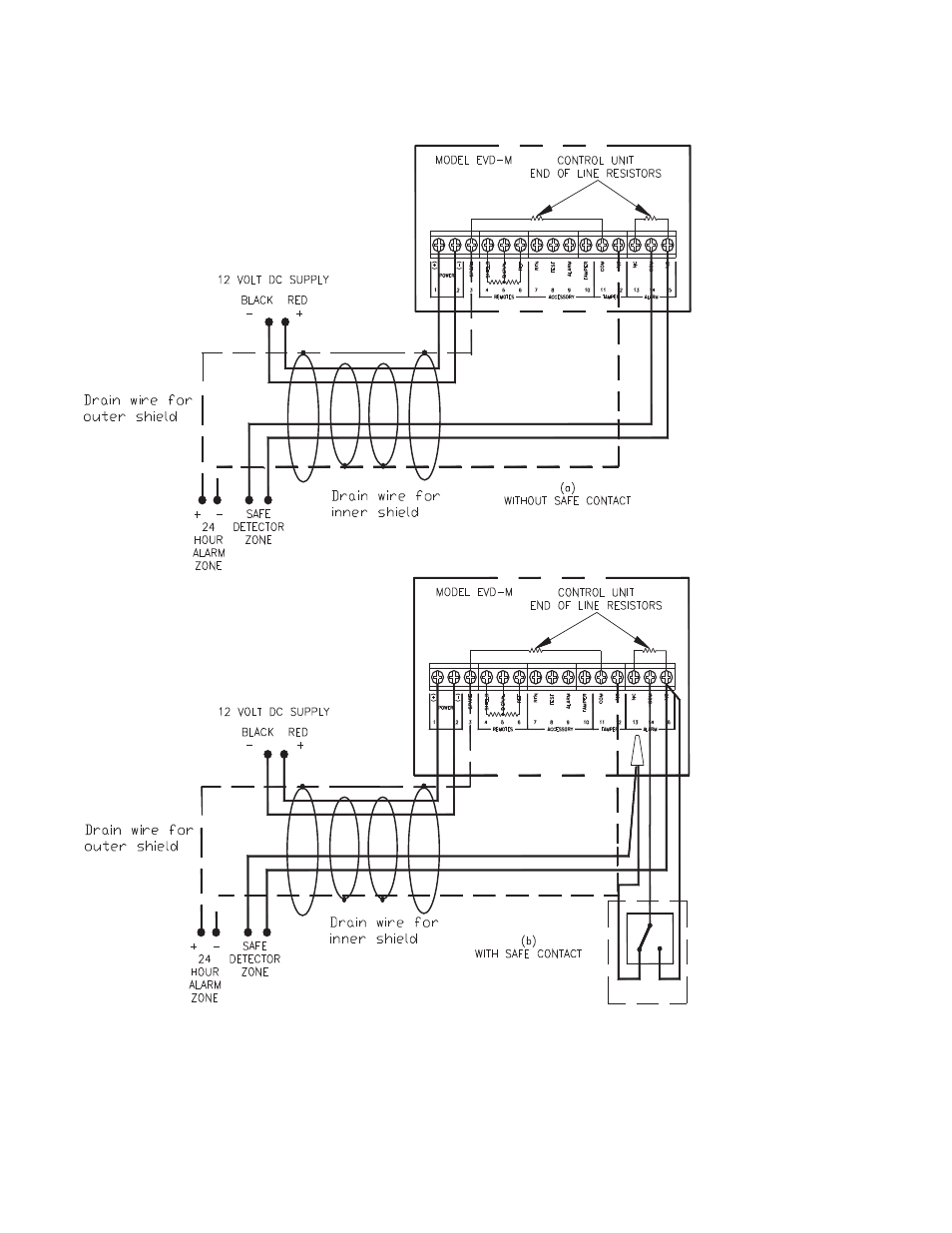

Recommended Control Panel Wiring With Safe Detector Zone and 24 Hour Alarm Zone (High security B cable and connections to 24 hr zone as shown are required for UL safe compatible installations) Figure 5b
DWG# 1042-16a
