For technical questions, please call 1-800-444-3353.
Item 67616
Specifications
Electrical Rating
120V~ / 60Hz / 6.5A
Rotational Speed
0-2500 RPM
Impact Rate
0-41,600 BPM
Chuck Capacity
3/64" to 1/2"
Wood Capacity
1" (25mm)
Concrete Capacity
5/8" (16mm)
Steel Capacity
1/2" (13mm)
E194601
39lh
Setup - Before use:
Read the EntiRE impORtant SaFEtY inFORmatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
note: For additional information regarding the parts listed in the following
pages, refer to Parts List and Diagram on page 14.

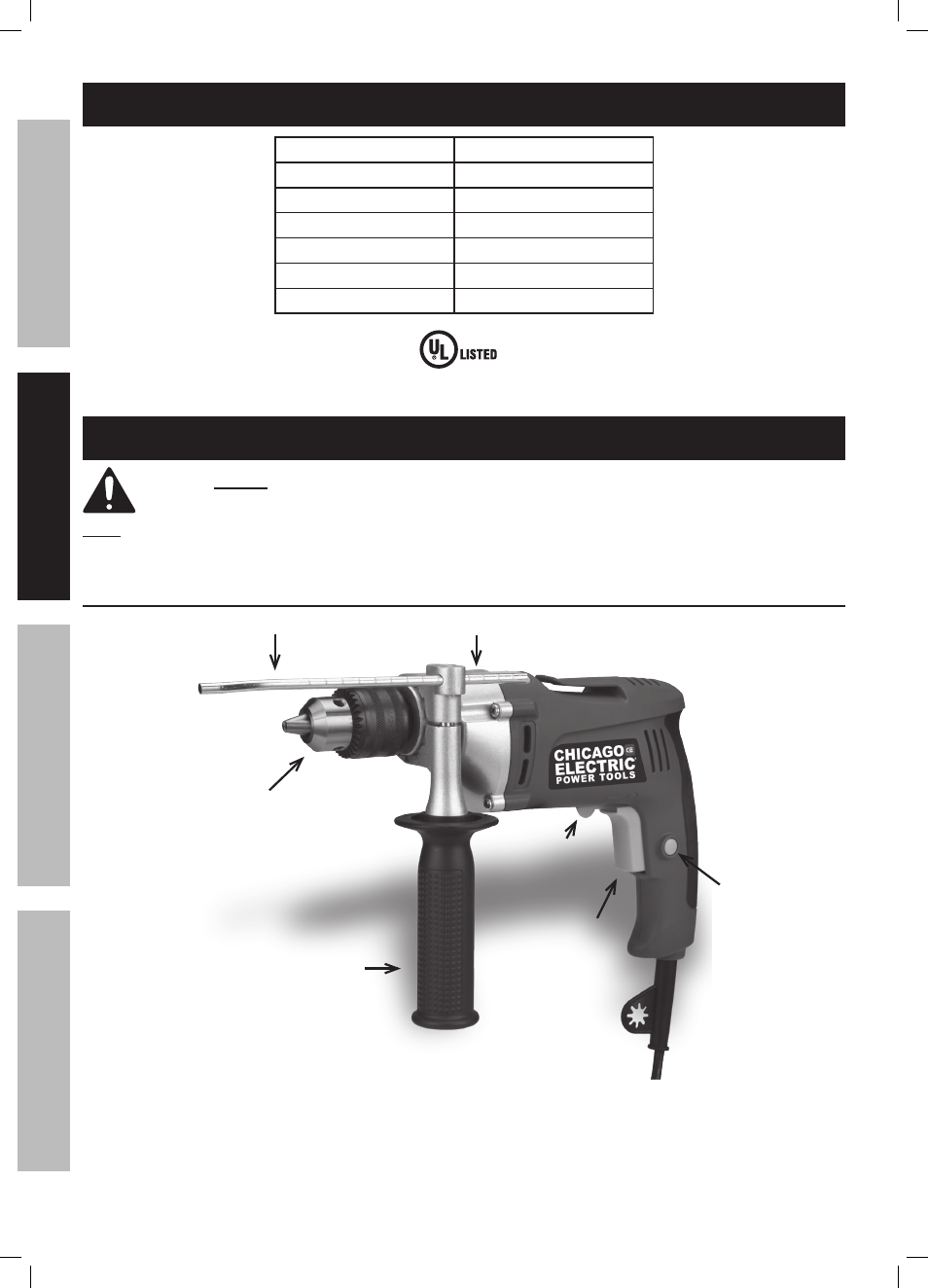

Functions
Figure a
Depth Gauge
Mode Switch
Forward/
Reverse
Switch
Trigger
Lock
Button
Auxiliary
Handle
Chuck
Sa
FE
tY
Op
ER
ati
O
n
m
aint
Enan
CE
SE
tup
