Small
Headphone
Jack
Tv
or CD PLAyeR
or TAPe PLAyeR
A
Diagram 4
C
H
Tv
A
e
C
Diagram 5
or TAPe PLAyeR
Large
Headphone
Jack
F
F
H
Small
Headphone
Jack

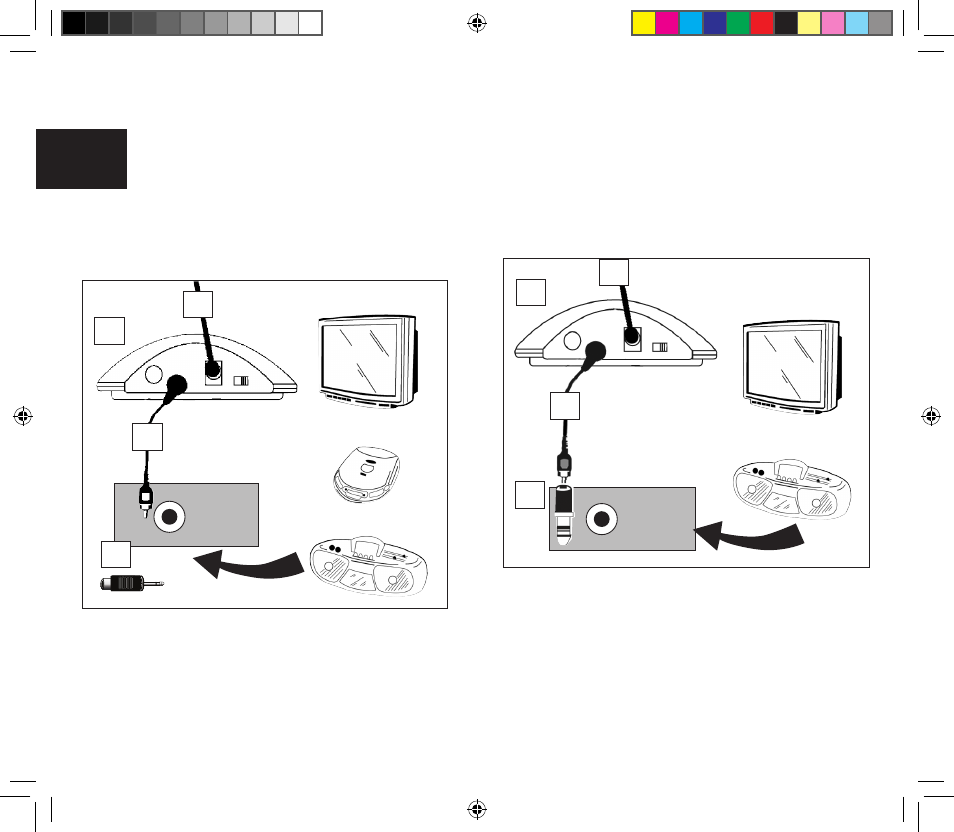

Installation – for use with equip-
ment that has a small headphone
jack. Connect the Transmitter
directly into the equipment’s audio
output jack as shown in Diagram 4 (using
the small 3.5 adapter if needed).
Large Headphone Jack Installation
– for use with stereos that have a
large headphone jack. Connect the
Transmitter directly into the 6.3mm
Adaptor (E) and insert it into the head-
phone jack as indicated in Diagram 5.
VCR Installation – for use when you
have cable passing through your VCR
and no other audio output jacks are
available. The VCR must be on before
beginning this installation. If your VCR
has two audio output jacks, connect the
Transmitter (A) RCA/3.5mm Adaptor
Cord, and connect the Adaptor Cord to
the audio output jacks on the VCR. If
your VCR has two audio output jack, use
a RCA 3.5mm Dual Adaptor (purchased
separately). See Diagram 6.
