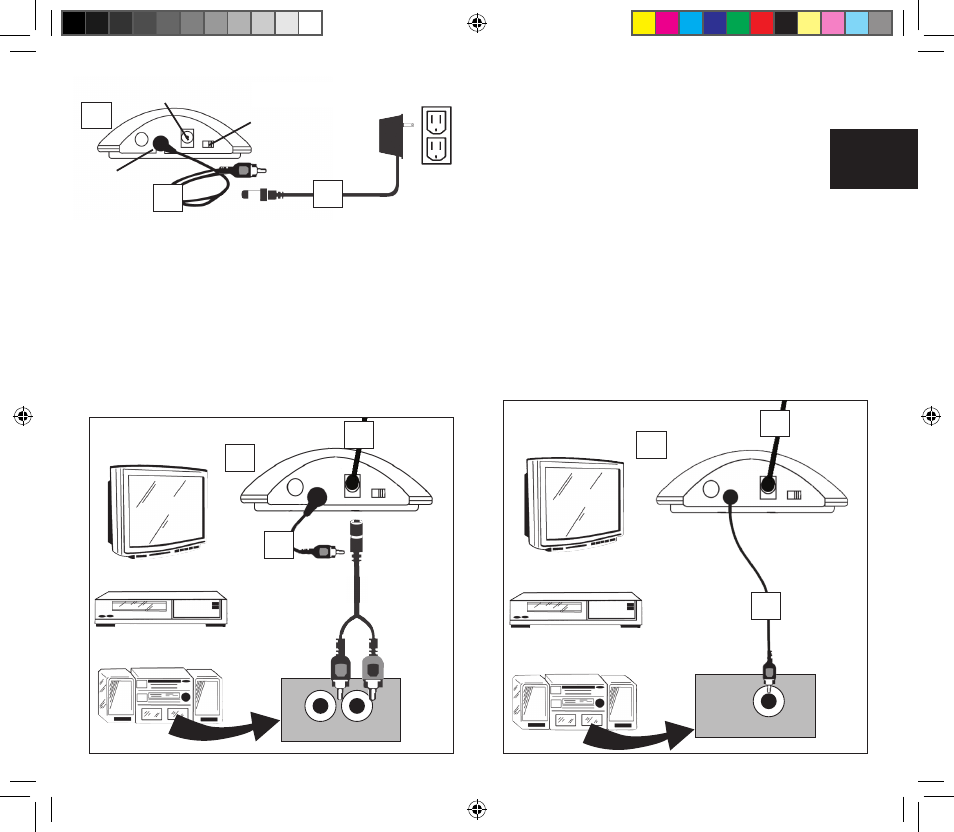

your equipment.
Standard Installation – for use with
TVs, VCRs, or stereos that have
two audio output jacks. Connect the
transmitter RCA/3.5mm cord (F) to a
Stereo (Dual) RCA/3.5mm adaptor cord.
Connect the Stereo/Dual Adaptor cord
to the audio output jacks as shown in
Diagram 2. Be sure to connect the
adaptor to the audio output and not
the video output.
Mono Installation – for use with
TVs, VCRs, or stereos that have
only one audio output jack. Connect
the Transmitter RCA 3.5mm Mono
Adaptor Cord (F) to the single Audio
output jack as shown in Diagram 3. Be
sure to connect the adaptor to the audio
output and not the video output.
