7 specifications – Crown Audio CL Series User Manual
Page 31
page 31
CH and CL Series Power Amplifiers
Operation Manual
7 Specifications

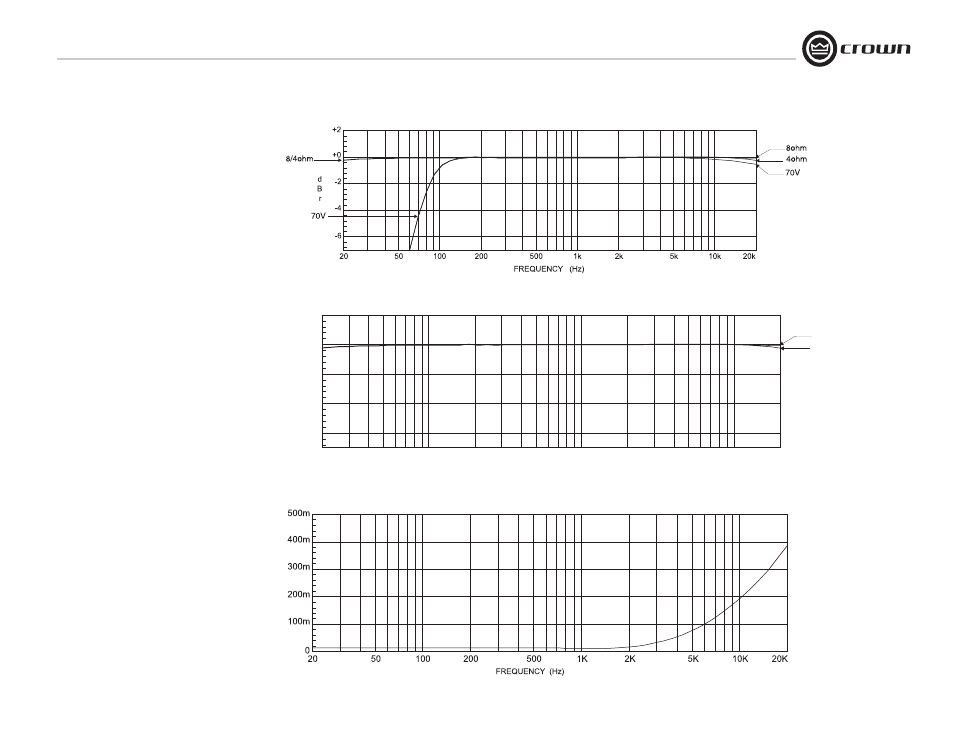

Figure 7.1
Models CH1 & CH2
Frequency Response
(Typical)
Figure 7.2
Model CL1 & CL2
Frequency Response
(Typical)
Figure 7.3
Models CH1, CH2, CL1 & CL2
Output Impedance
(Typical)
(CH1, CH2 Set To 4/8 Ohm Mode)
-6
+2
-4
-2
+0
d
B
r
20
20k
50
100
200
500
1k
2k
5k
10k
FREQUENCY (Hz)
8ohm
4ohm
