CH and CL Series Power Amplifiers
Operation Manual
2.7.5. Models CL1 & CL2 Stereo
Mode
See Figure 2.14. In this example, Channel 1 and
Channel 2 are wired to 4/8-ohm speaker loads.
Make sure the Mode switch is set to the “Stereo”
position.
INPUTS: Connect input wiring for each channel.
OUTPUTS:
• Connect Channel 1 positive (+) speaker lead
to Channel 1 positive (+) terminal of amp.
• Connect Channel 1 negative (–) speaker lead
to Channel 1 negative (–) output terminal of
amp.
• Repeat similarly for Channel 2.
Refer to Section 2.5 for output connector pin
assignments.
2.7.6 Models CL1 & CL2 Bridge
Mode
See Figure 2.15. In this example, a 4/8-ohm load
is connected in Bridge Mono across the positive
terminals of Channel 1 and Channel 2. Make
sure the Mode switch is set to the “Bridge” posi-
tion.
NOTE: When operating in Bridge-Mono
mode, turn down (full CCW) the level
control for Channel 2, as the Channel-1
level control works both channels.
INPUTS: Connect input wiring to Channel 1.
OUTPUTS: Connect positive (+) speaker lead to
Channel 1 positive (+) terminal of amp. Connect
negative (–) speaker lead to Channel 2 positive
(+) terminal of amp. Do not connect to negative
output terminals.
Refer to Section 2.5 for output connector pin
assignments.

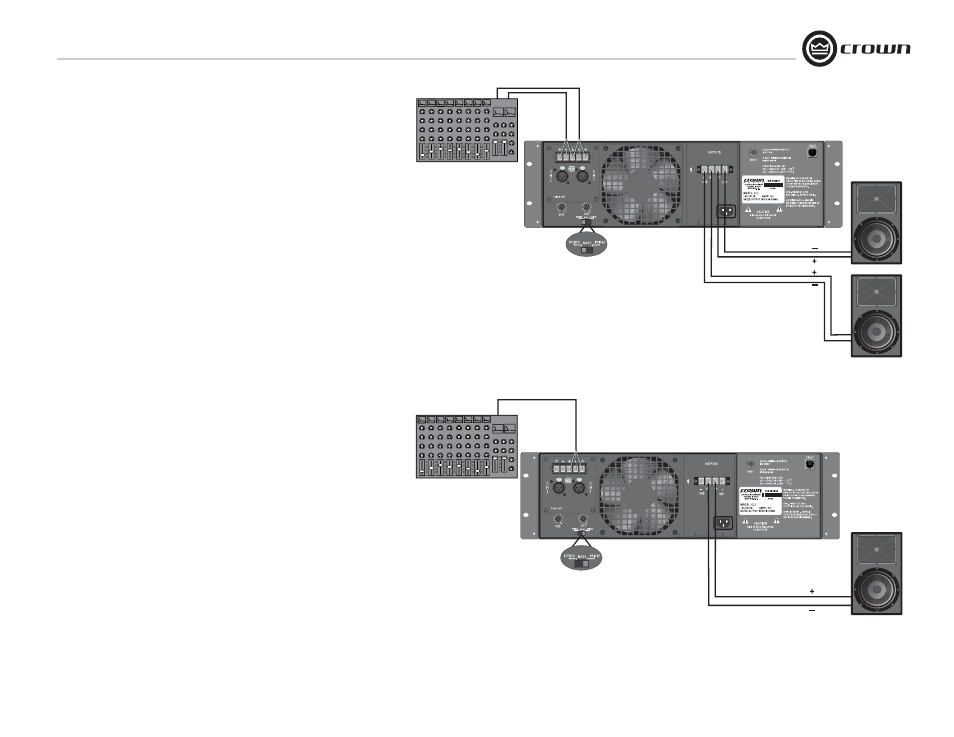

Figure 2.14 Models CL1 & CL2 Wiring for Stereo Mode
(Shown with No-Touch Cover Removed)
Figure 2.15 Models CL1 & CL2 Wiring for Bridge Mode
(Shown with No-Touch Cover Removed)
2 Setup
Mixer
Mixer
