5
HSW44C
1. Power : Power indicator LED
2. IR : IR receiver
3. Input : Input source indicator LED
4. HP1 –HP4: Connection status indicator LED for each output channel
5. Port1 –Port4: Input source channels mapping LED for each output channel
6. Port1 Select –Port4 Select: Push button for selecting input channel
7. ON –OFF: Power ON/OFF
8. RS-232 : RS-232 control port
9. +5V DC : 5V DC power jack
10. SW Main : DIP switches [see DIP Switch section in p.8]
11. SW1 –SW4: DIP switch [see DIP Switch section in p.7]
12. IN1 –IN4: HDMI inputs
13. IR1 –IR4: IR extender jacks for individual HDMI source control
14. OUT1 –OUT4: RJ-45 TMDS/DDC outputs for each output channel
15. IR Main: IR extender jack for all HDMI source control [default socket for IR emitter]

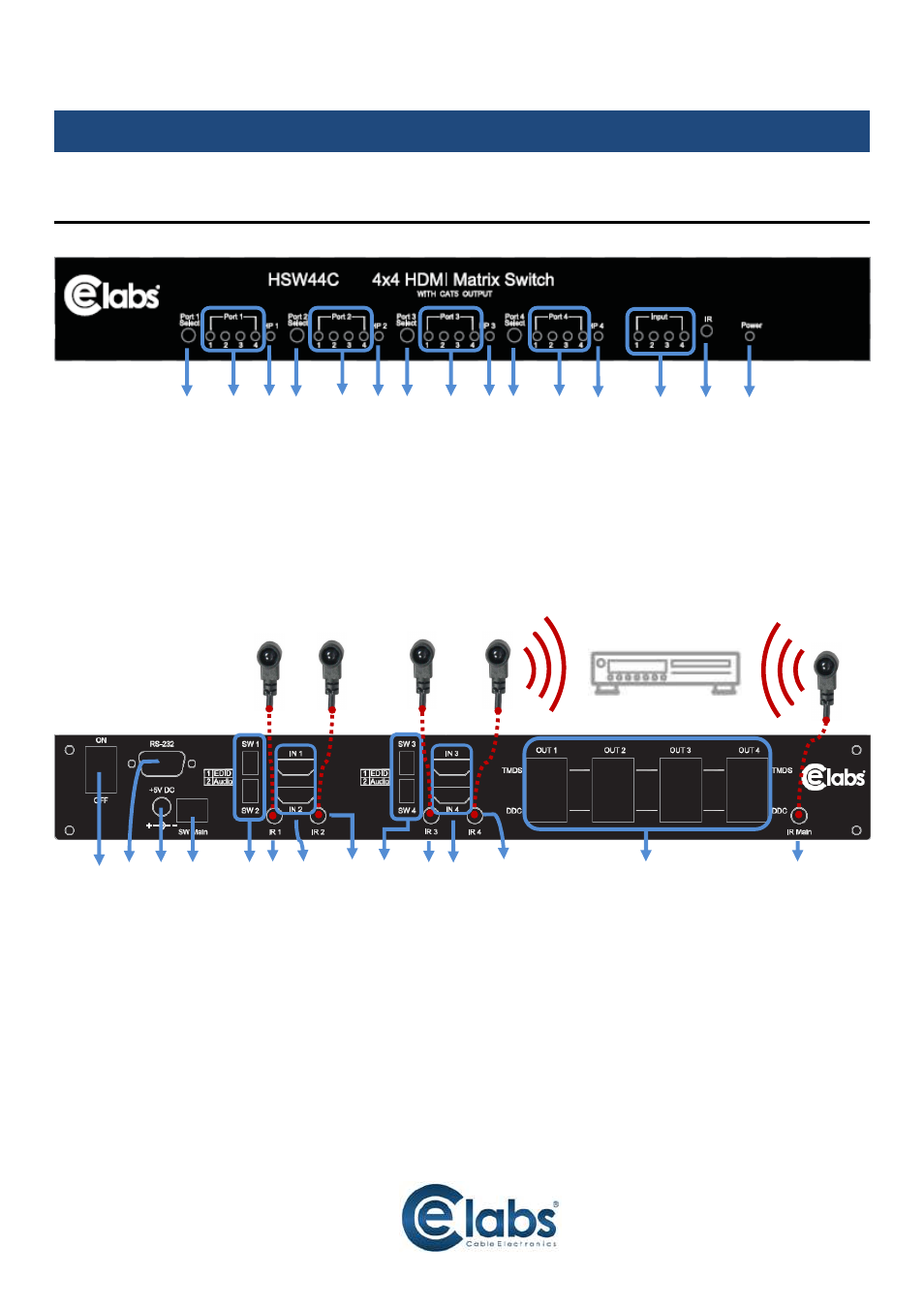

Panel Descriptions
1111 2222 5555 4444
3
6666 3333 4444 4444 4444 6666 6666 6666 5555 5555 5555
7777 8888 14 14 14 14 10 10 10 10 12 12 12 12 11 11 11 11 15 15 15 15 9999 13 13 13 13 13 13 13 13 12 12 12 12 13 13 13 13 11 11 11 11 13 13 13 13
