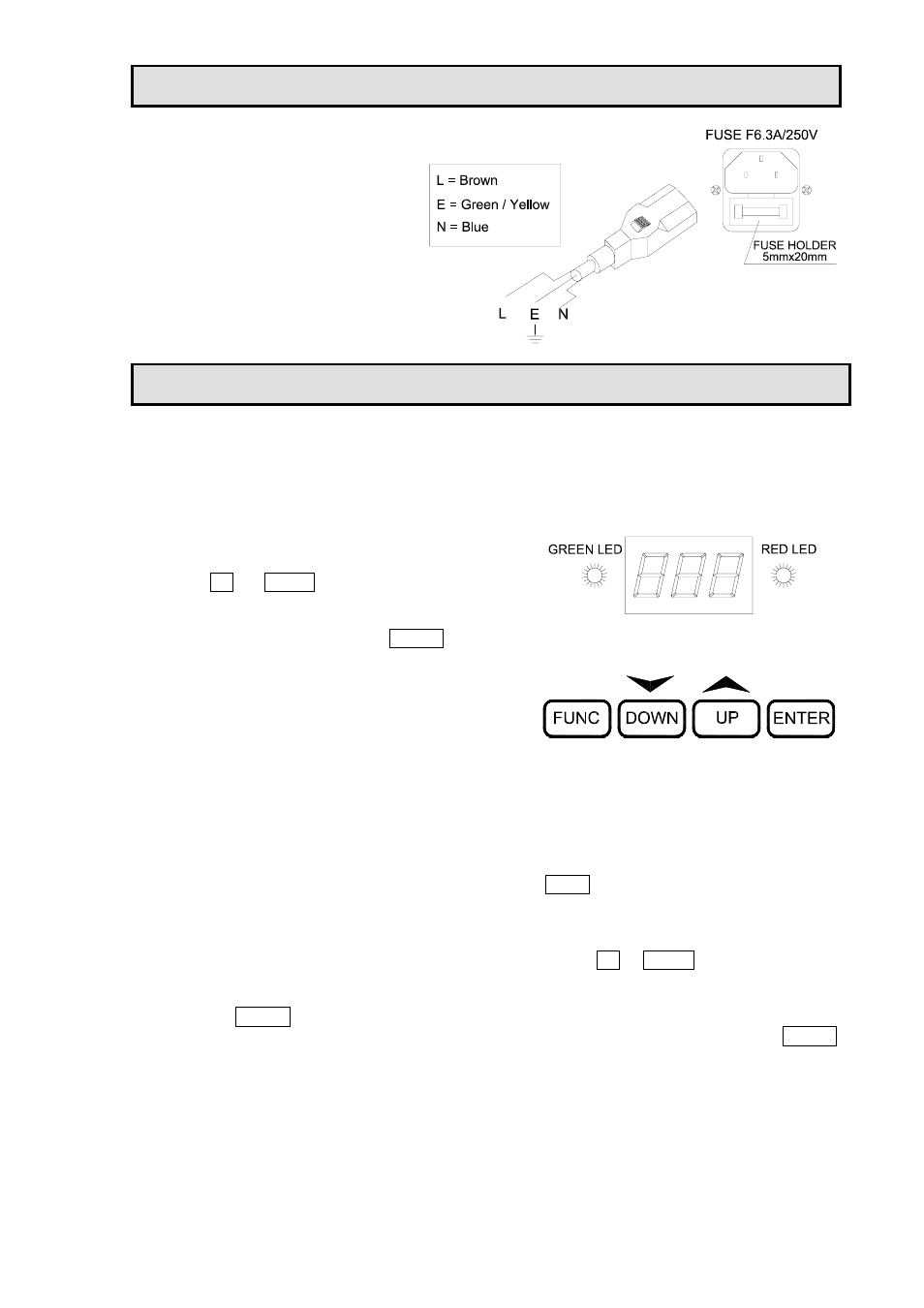

POWER SUPPLY - MAINS
Use the plug provided to connect the
mains power to the projector paying
attention to the voltage and frequency
marked on the panel of the projector. It
is recommended that each projector is
supplied separately so that they may be
individually switched on and off.
Pilot Wash manual.doc 5/12
IMPORTANT:
It is essential that the
green/yellow conductor is correctly
earthed.
OPERATION AND STAND-ALONE MODE
The projector may be operated either in Stand-Alone automatic mode or be controlled via standard
DMX512 by a controller. With the touch-switches and the digital display screen, DMX start address
can be easily set and the various setup options may be configured.
The display shows the DMX start address after the projector is switched on (if you have already set
the DMX start address and saved it, the screen will display the last setting).
TO SET THE DMX START ADDRESS
Press the UP or DOWN buttons and the display will
show the DMX start address.
Confirm your choice by pressing the ENTER button, this
will save and set the DMX start address.
The display will show the latest setting each time the
projector is powered up.
To control the projector with a DMX controller the DMX
start address must be set.
Ensure that none of the Stand-Alone options are set or they will interfere with correct DMX operation.
SETUP OPTIONS - PROJECTOR CONFIGURATION
To browse through the various Setup Options, press the FUNC button consecutively. There are 6
Option codes (1~6), and each code has a specific function. The functions provided are listed in the
following table.
Once you have selected the desired operation code, press the key UP or DOWN to select “y” (means
ON) or “no “ (means OFF). N = NO, Y = YES.
Press the key ENTER to save the selected function and configuration. If the display is showing “y”,
then the setting has been enabled. In the same way, if it was showing “n” when you pressed ENTER
the option has been disabled.
The Red LED will flash during this operation.
