OmniSistem PR Orland Follow Spot - Manual (Page 5)

5/8
Orland Follow manual.doc
Remove the cover by loosening a M4 knurled screw.
Insert the lamp in the lamp-holder, and ensure the little bubble on the lamp is at a right angle (90°)
to the beam path. Keep the lamp clean during installation.
Reinstall the cover and tighten the M4 knurled screw.
Note: The HMI series are high pressure lamps with external igniters ( ). Care should always be
taken when handling these lamps. Always read the manufacturers "Instructions for use" enclosed
with the lamp.
CONTROL CONNECTIONS

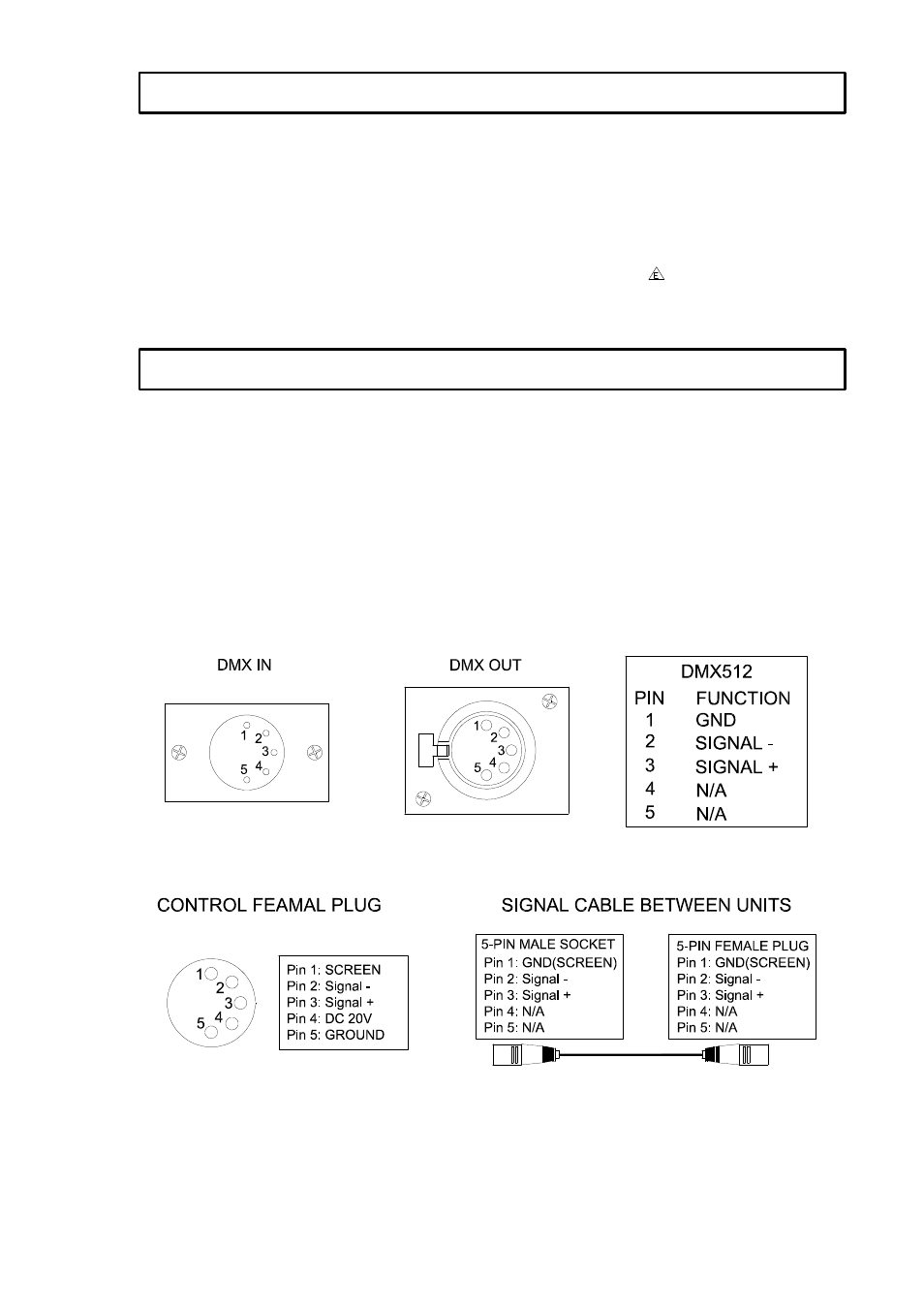

Connection between one projector and another must be made with 2 core screened cable, with
each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 5
pins XLR plugs and sockets which are included with the projector. The XLR's are connected as
shown in the table below.
Note, care should be taken to ensure that none of the pins touch the body of the plug or each
other. The body of the plug is not connected in any way. The Orland Follow accepts digital control
signals in standard DMX512 (1990) format.
FITTING THE LAMP
MASTER/SLAVE SYNCHRO MODE
