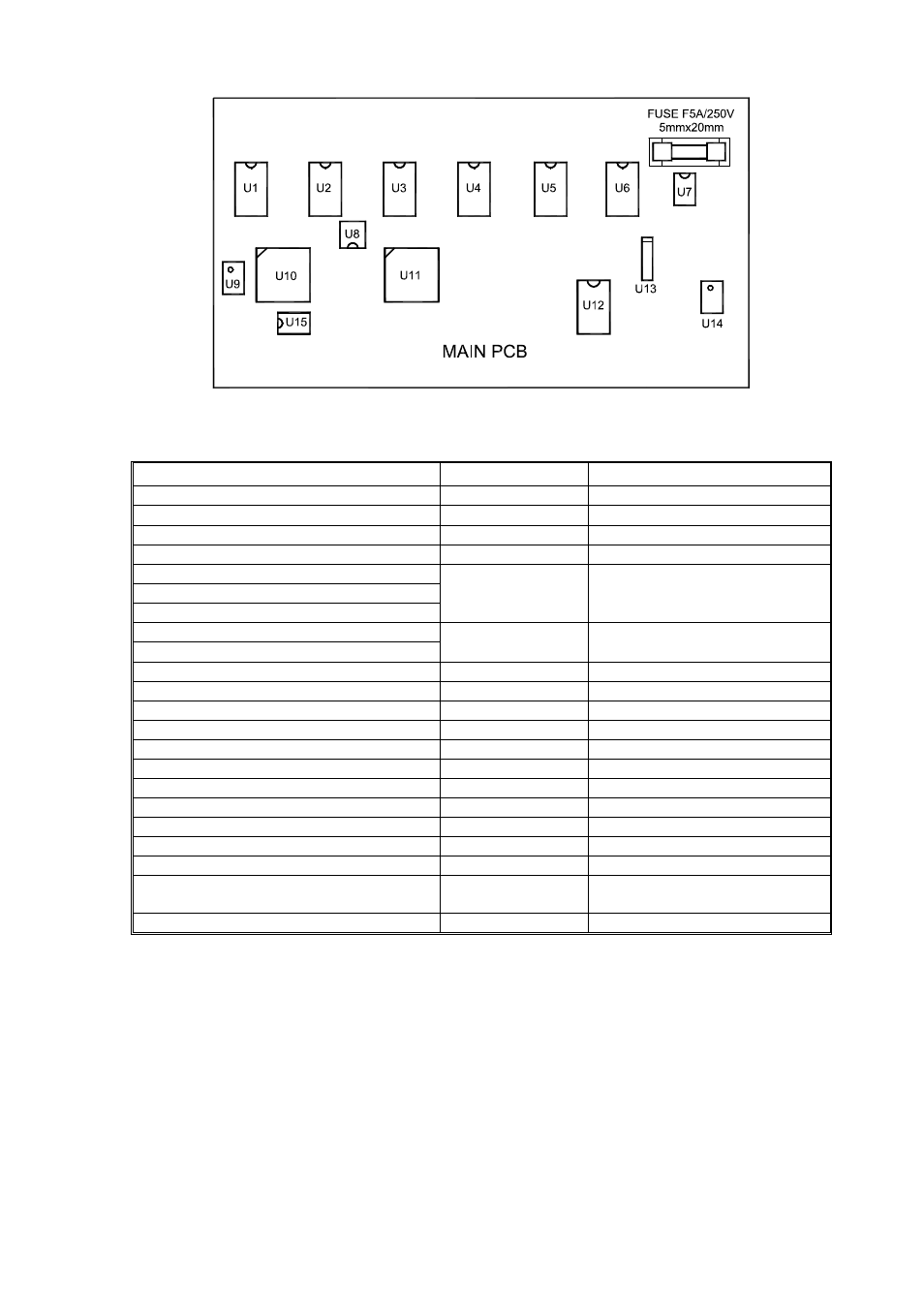

COMPONENT ORDER CODES
NAME
PART NO.
REMARK
TRANSFORMER
040020036
230V/50Hz
THERMOSTAT
190010054
/10A
FAN
030060008
DC12V/0.43A
LAMP
100040001
EVC 24V/250W
MOTOR 1 (COLOUR-WHEEL)
MOTOR 2 (GOBO-WHEEL)
MOTOR 3 (SHUTTER)
030040056
17HS0002-45L
MOTOR 4 (TILT)
MOTOR 5 (PAN)
030040023
17HS0002-38L
MOTOR 6 (GOBO ROTATION)
030040056
17HS0002-45L
OPTICAL-COUPLE
171000008
MOC3022
IC1
230040093
DIGITAL-SCREEN CHIP
U1~U6
170110001
DRIVER CHIPS
U7
170170039
STABLE-POWER CHIP
U8
230040087
WATCH DOG CHIP
U9
170050002
ARITHMETIC AMPLIFIER CHIP
U10
230040088
MICROPROCESSOR 1
U11
230040089
MICROPROCESSOR 2
U12
170040002
TTL REVERSION CHIP
U13
170170034
RESET CHIP
U14
170170012
BUS CHIP FOR
RECEIVING/TRANSMITTING
U15
170040032
EEPROM CHIP
