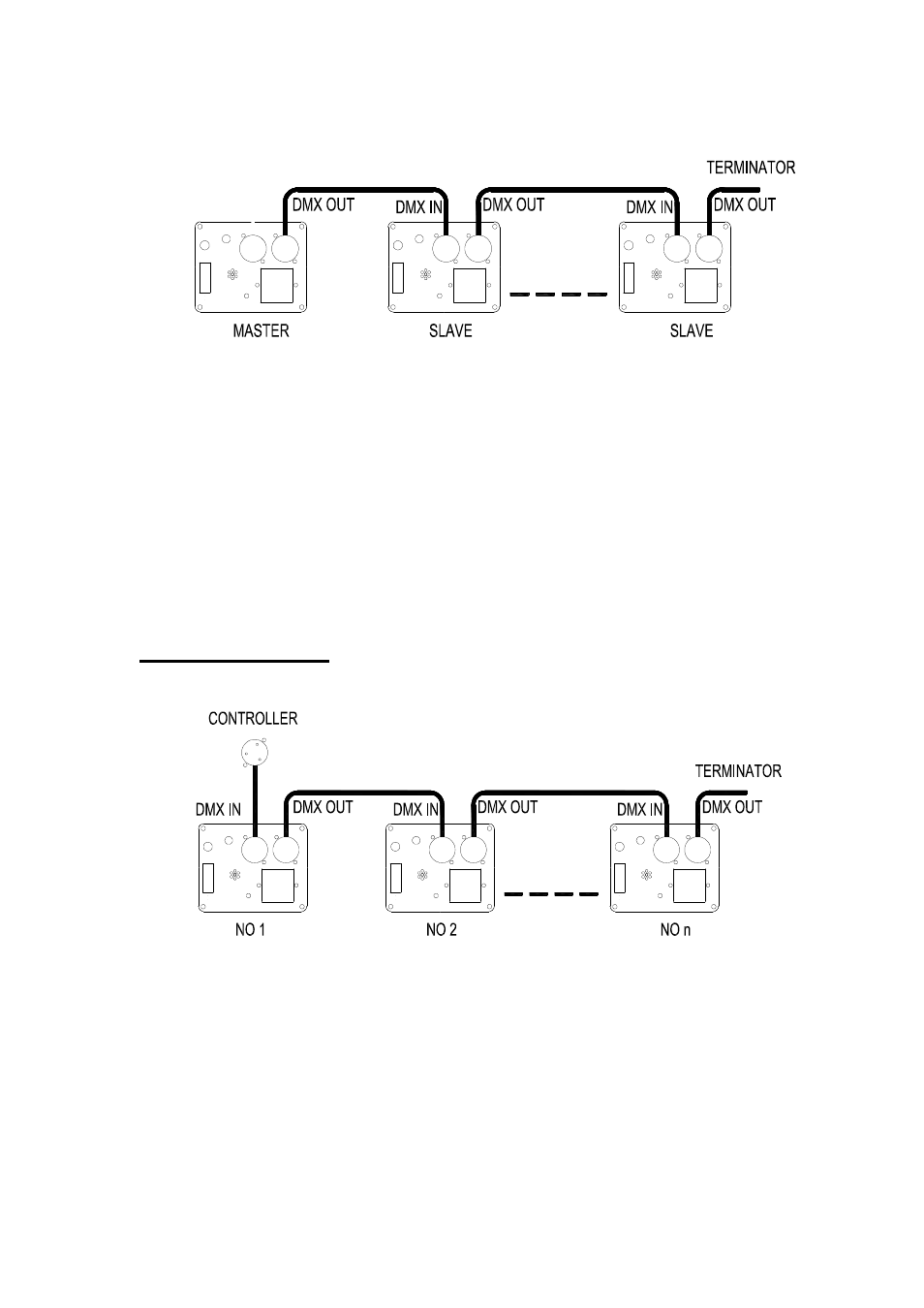

In the Master/Slave mode, all the luminaires may be actived by sound via the
MIC inside the master. All luminaires will change synchronously colours
according to rhythm of music.
Caution: You can only set one luminaire as the master, and the setting must
be right. Otherwise injury or damage may result.
Notice: At the last slave luminaire in the chain, the DMX output has to be
connected with a DMX terminator. The DMX terminator is simply an XLR
connector with a 120
resistor connected across pins 2 and 3, which can
avoid the reflection during the DMX-512 signal transmission. (Please refer to
appendix 3: terminator connection)
Controller Mode
Mirage PR-2014H adopts DMX 512 protocol. You may use controller to
control many luminaires via setting the No1 to No9 switches of the DIP
switches. (For detail please refer to appendix 1)
Connect the controller’
s output to the first luminaire’ s input, and connect the
first luminaire’ s output to the second luminaire’ s input. The rest may be
deduced by analogy. Eventually connect the last luminaire’ s output to a DMX
terminator. (Please see the figure above)
Notice: At the last luminaire in the chain, the DMX output has to be
connected with a DMX terminator. The DMX terminator is simply an XLR
connector with an 120
resistor connected across pins 2 and 3, which can
