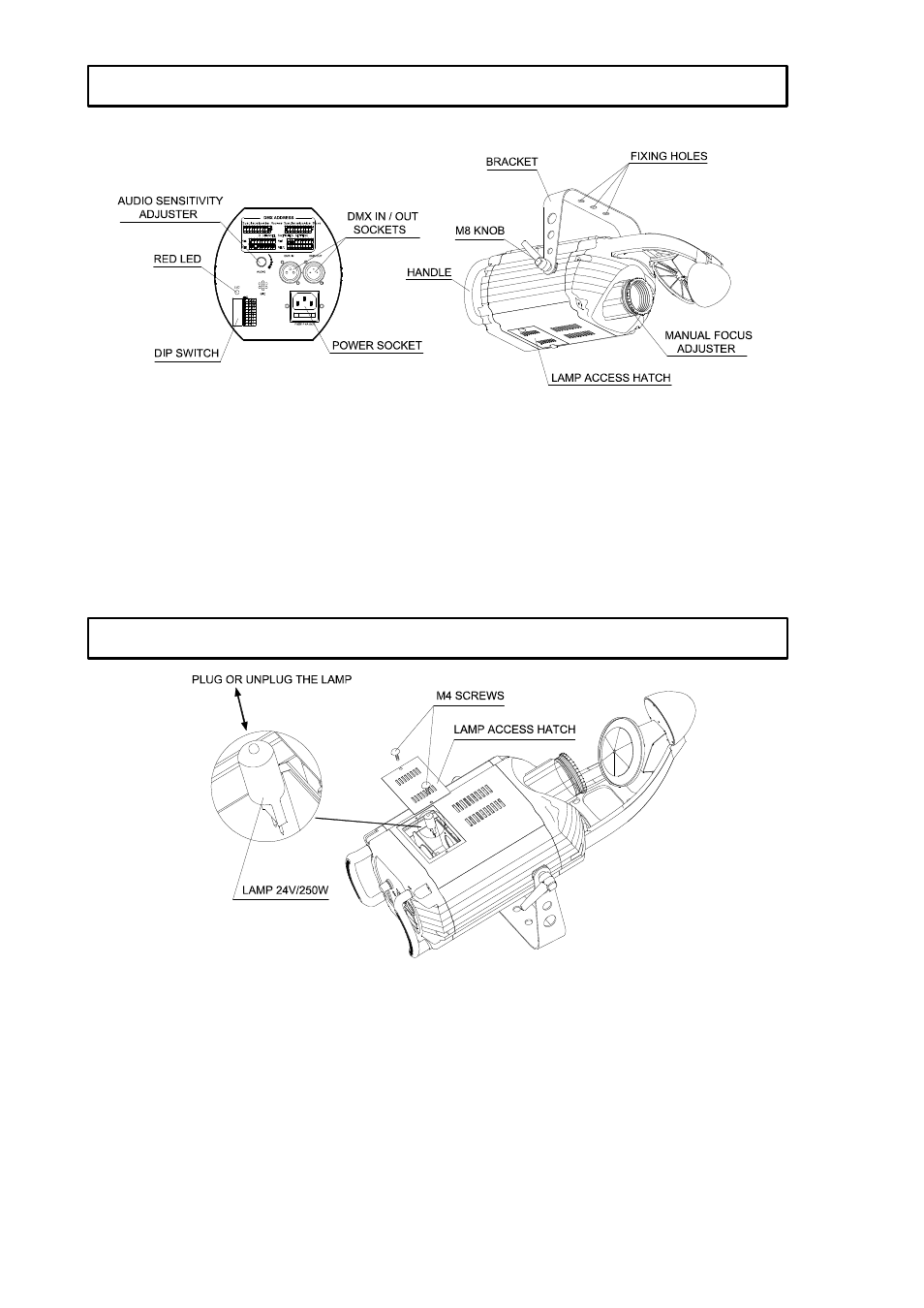

This unit has been designed to be hung. Mount the bracket provided on the body of the projector.
There are 2 M8 knobs provided to tighten the body and the bracket. When you want to adjust the
angle of the body of the projector, you only loosen the two M8 knobs carefully and then adjust the
angle of the body. After finishing that, it is recommended that you don’
t forget to retighten the two M8
knobs. Always ensure that the projector is firmly positioned to avoid vibration and slipping and always
ensure that the structure to which you are attaching the projector is secure and is able to support a
weight of 7.9kg for each MANTIS.
For safety the unit should have a secondary fixing with a safety cable through the two handles on the
back of the unit, and the safety cable should afford 10 times of the unit’
s weight.
Remove the lamp access hatch by loosening the 2 M4 screws.
Insert an EVC 24V/250W lamp in the lamp porcelain holder. (Note: Never touch new lamps with your
fingers; use a tissue or a cloth. Before removing blown lamp, ensure that the unit is sufficiently cool).
Mount the lamp access hatch again.
Retighten the 2 M4 screws.
FITTING THE LAMP
INSTALLING THE PROJECTOR
