INSTALLATION
Installing/Replacing the Lamp
For the installation, you need one Osram Sirius HRI 132W discharge lamp.

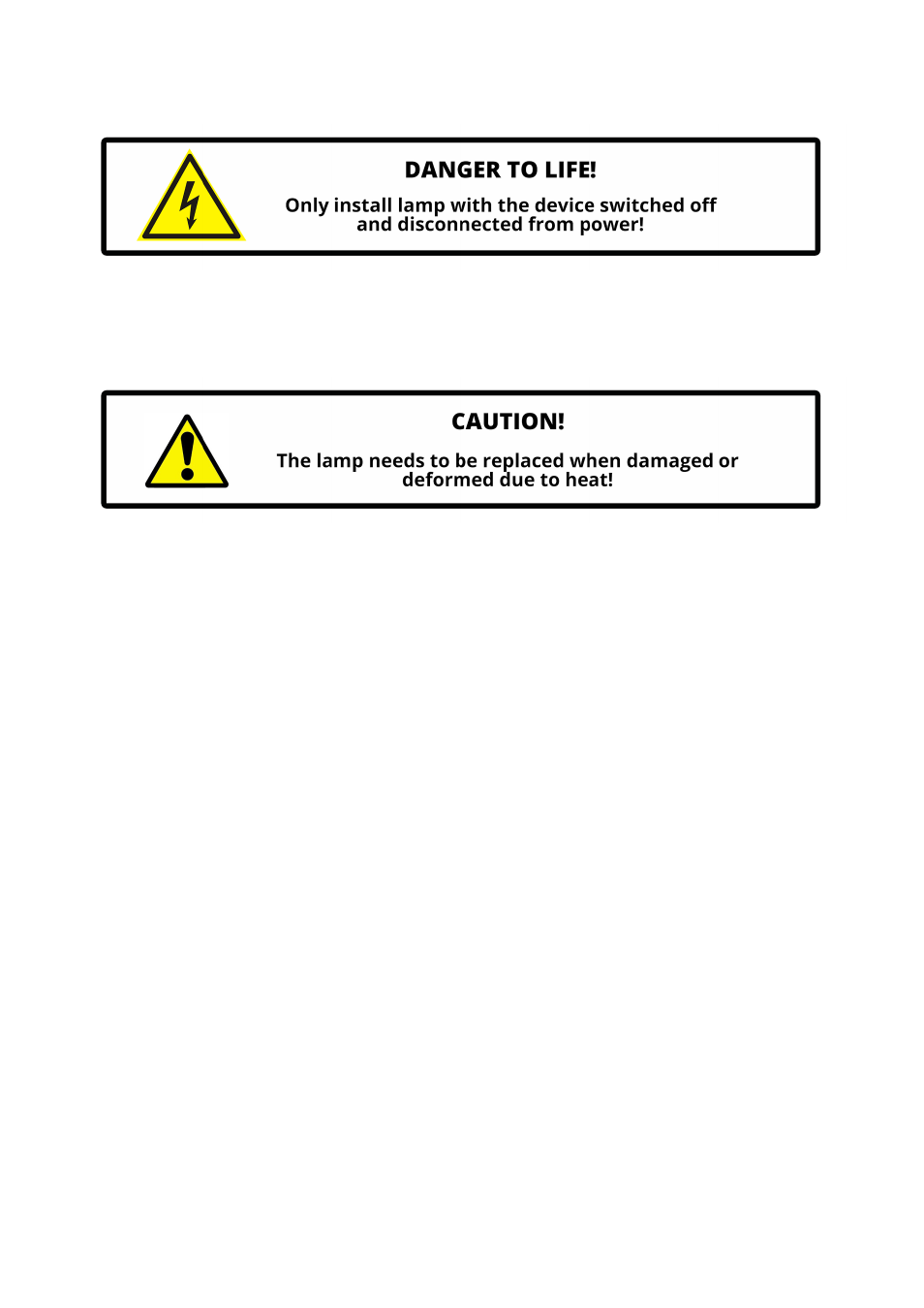

The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection
gloves, helmet with sight, leather apron).
The lamp life given by the manufacturer must never be exceeded. This is why you need to take notes on the
operational time of the lamp or check the operating hour meter regularly and replace the lamp in time.
Keep exchanged lamp in a protective container and remove accordingly.
During the operation, the lamp reaches temperatures of up to 600° C.
Before replacing the lamp, disconnect power and let the lamp cool down (approx. 10 minutes).
During the installation do not touch the glass­bulbs bare­handed! Please follow the lamp manufacturer's notes!
Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the device was not
designed for. Damages caused by non­observance are not subject to warranty.
Procedure:
Step 1: Unscrew the eight housing screws (standard Philips screws) of the projector head cover and
remove the projector head cover.
Step 2: Unscrew the fixation screws A and B of the lamp system and carefully remove the cover from the
housing.
Step 3: Unscrew the fixation screw of the lamp holder.
Step 4: Push the plate to the right side.
Step 5: If replacing the lamp, remove the old lamp from the lamp holder. First, carefully detach the two
connection wires from the lamp base. Remove the lamp from the lamp holder.
Step 6: Carefully insert the new lamp into the lamp holder. Carefully attach the two connection wires onto
the lamp base. Please make sure that the new lamp is in the same position as the old lamp before
closing the device.
Step 7: Replace the lamp system in the housing and tighten the fixation screws.
Step 8: Replace the projector head cover and tighten the screws.
Attention: Please note, the Osram Sirius HRI 132W lamp is not a hot-restrike type. You must wait
approximately 10 minutes before you can attempt to strike the lamp once it has been turned off!
