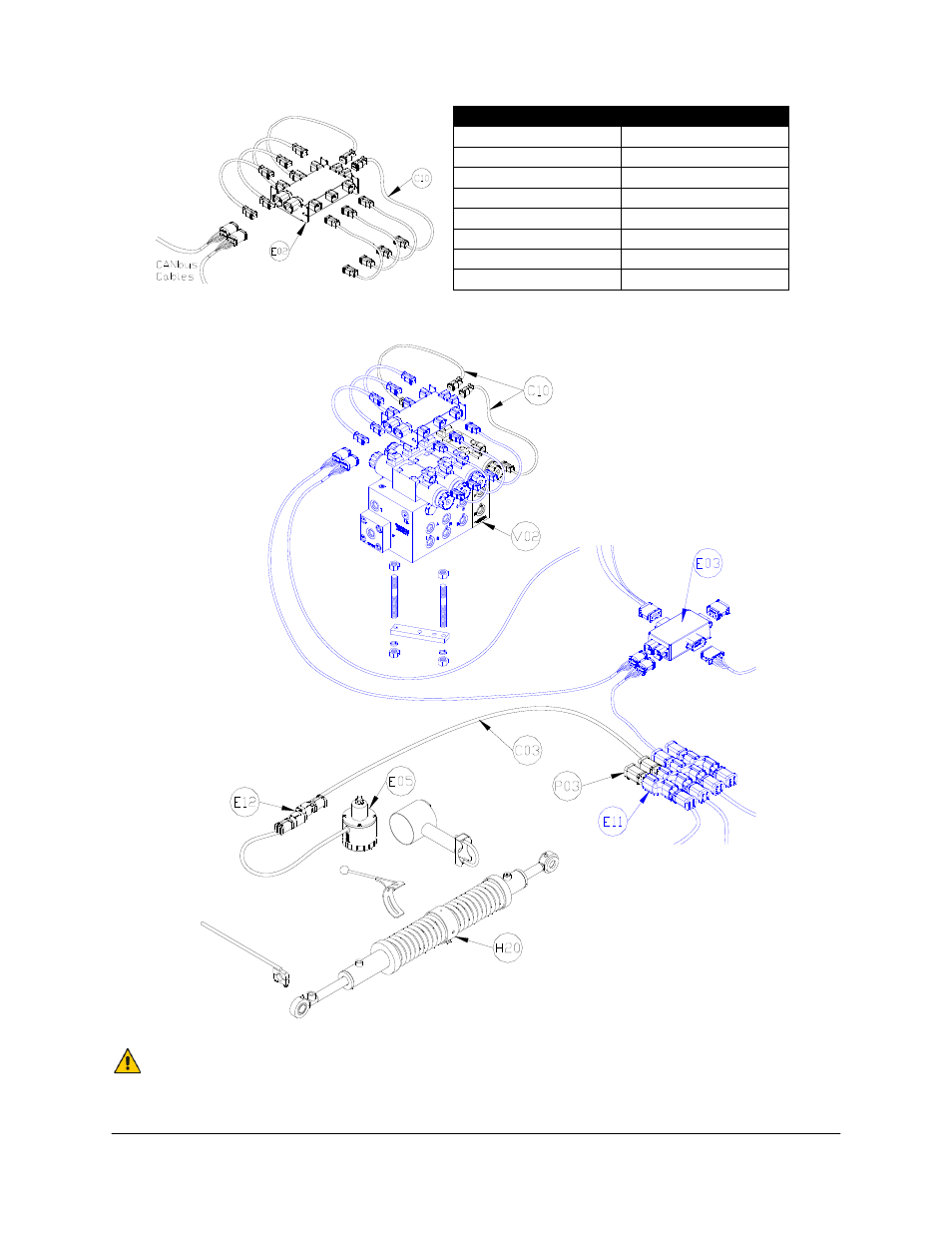

Figure 15: Valve Module Connections
Figure 16: Electrical Installation
Only the components shown in black are included in this kit.
Output Number Normal Function
1 Left Up
2 Left Down
3 Right Up
4 Right Down
5 Main Up
6 Main Down
7 Roll CW
8 Roll CCW
