Page 13
10
5.2 Active Roll Mounting Bracket Installation
1. Install the mounting bracket as shown in Figure 7. Ensure the stop on the lower mount is
outside the frame.
2. Tighten the mounting bolts 50-70 ft-lbs.

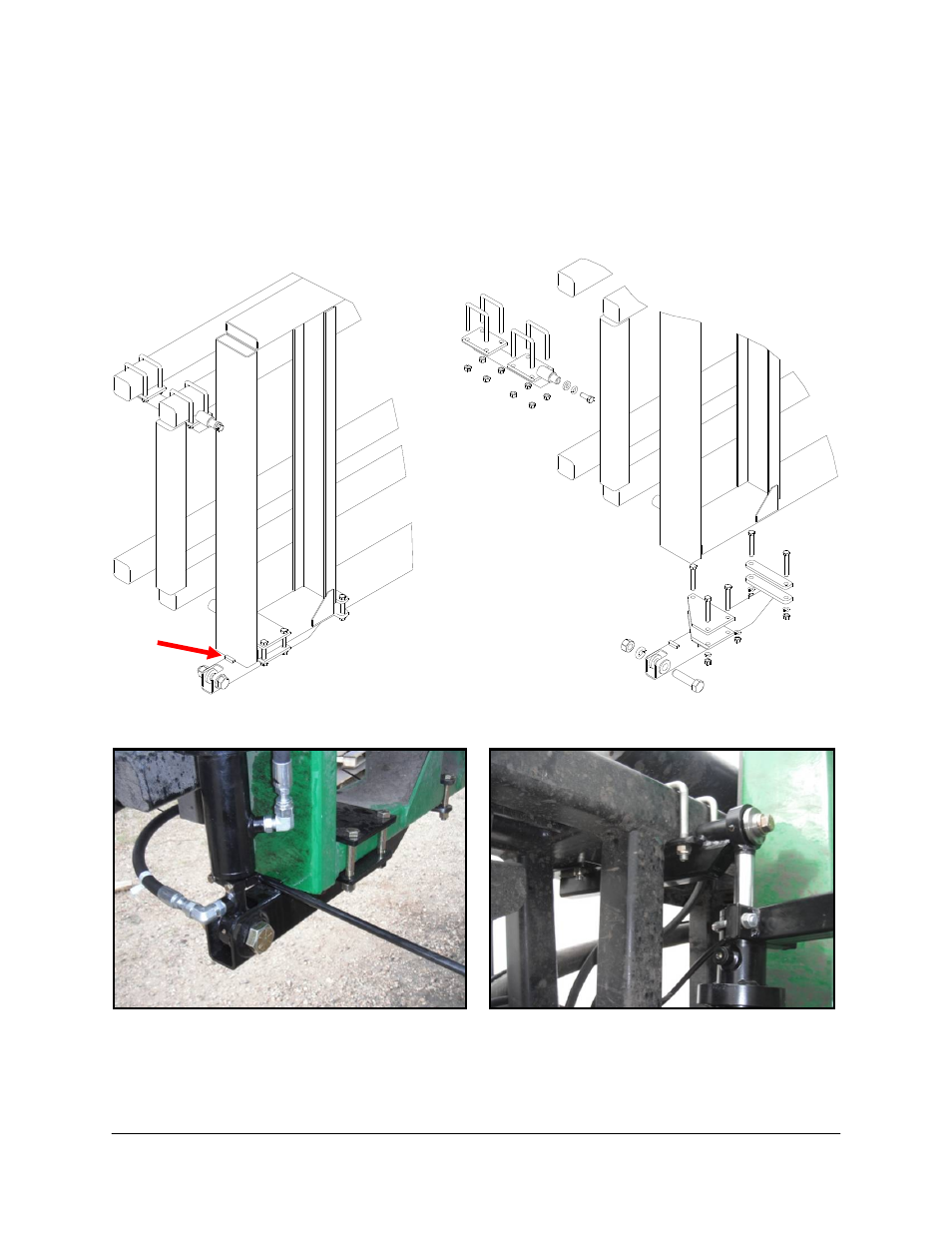

Figure 7: Linear Roll Mounting Bracket Assembly
Figure 8: Lower Linear Roll Mounting Bracket
Figure 9: Upper Linear Roll Mounting Bracket
