6.2 Expansion Block Assembly

1. Loosen the existing 3 station valve block so that it can be moved and/or twisted for the

installation of the expansion block.

2. Remove the four 4MBP plugs from the 3 station valve block (Figure 13).

3. Coat the four o-rings in hydraulic oil and install them into the expansion block. Ensure the

o-rings are seated properly.

4. Attach the expansion block to the 3 station block using the included spring washers and

bolts.

5. Tighten the bolts to 31 ft-lbs.

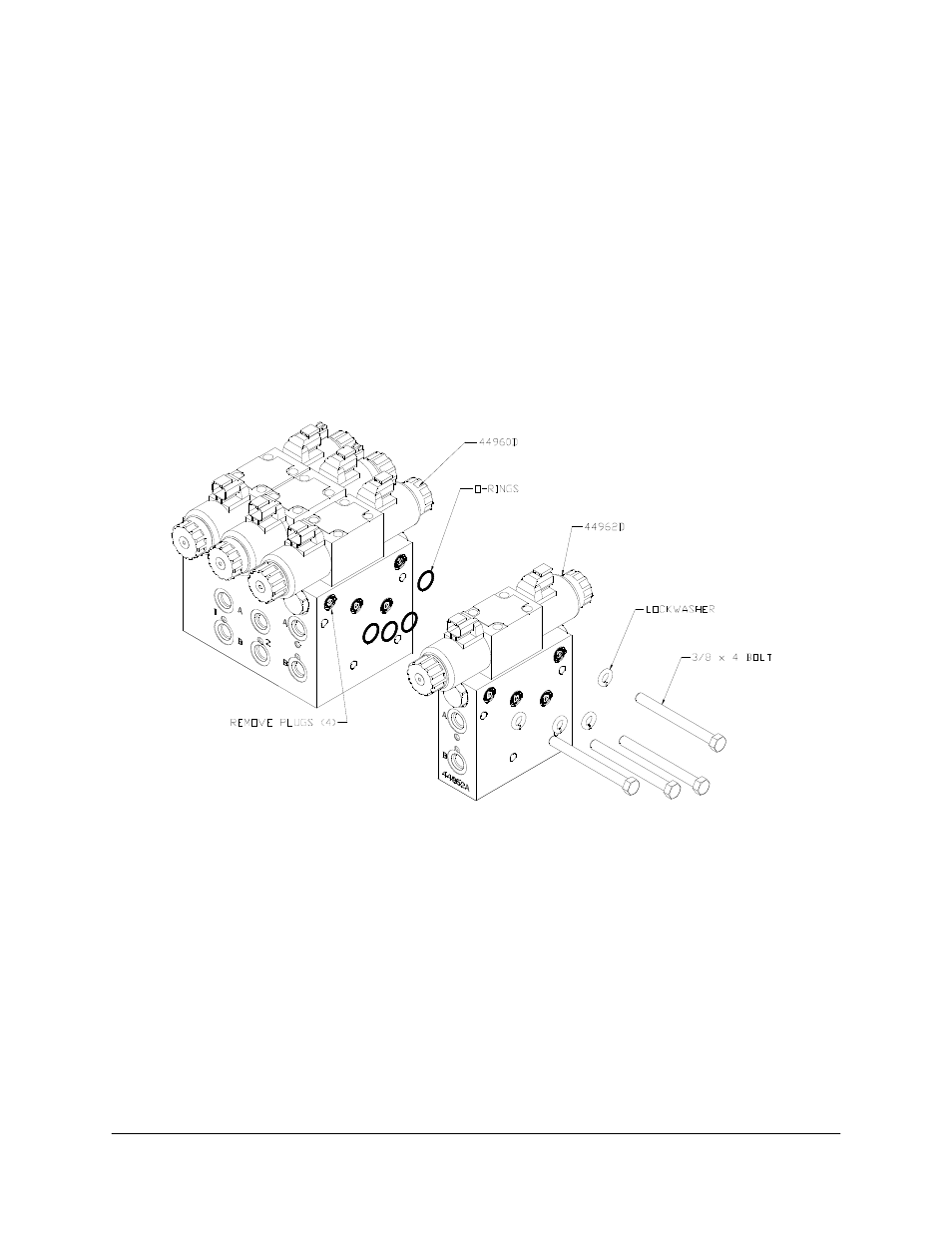

Figure 13: NORAC Expansion Block Assembly
