5 Linear Roll Cylinder Installation
5.1 Removing the Rubber Bumpers, Springs and Dampers
The springs are under compression and must be retained during disassembly.
Failure to ensure the spring forces are removed safely may result in injury or
damage to the equipment.
1. Remove the rubber bumpers (Figure 4) from each side of the sprayer boom.

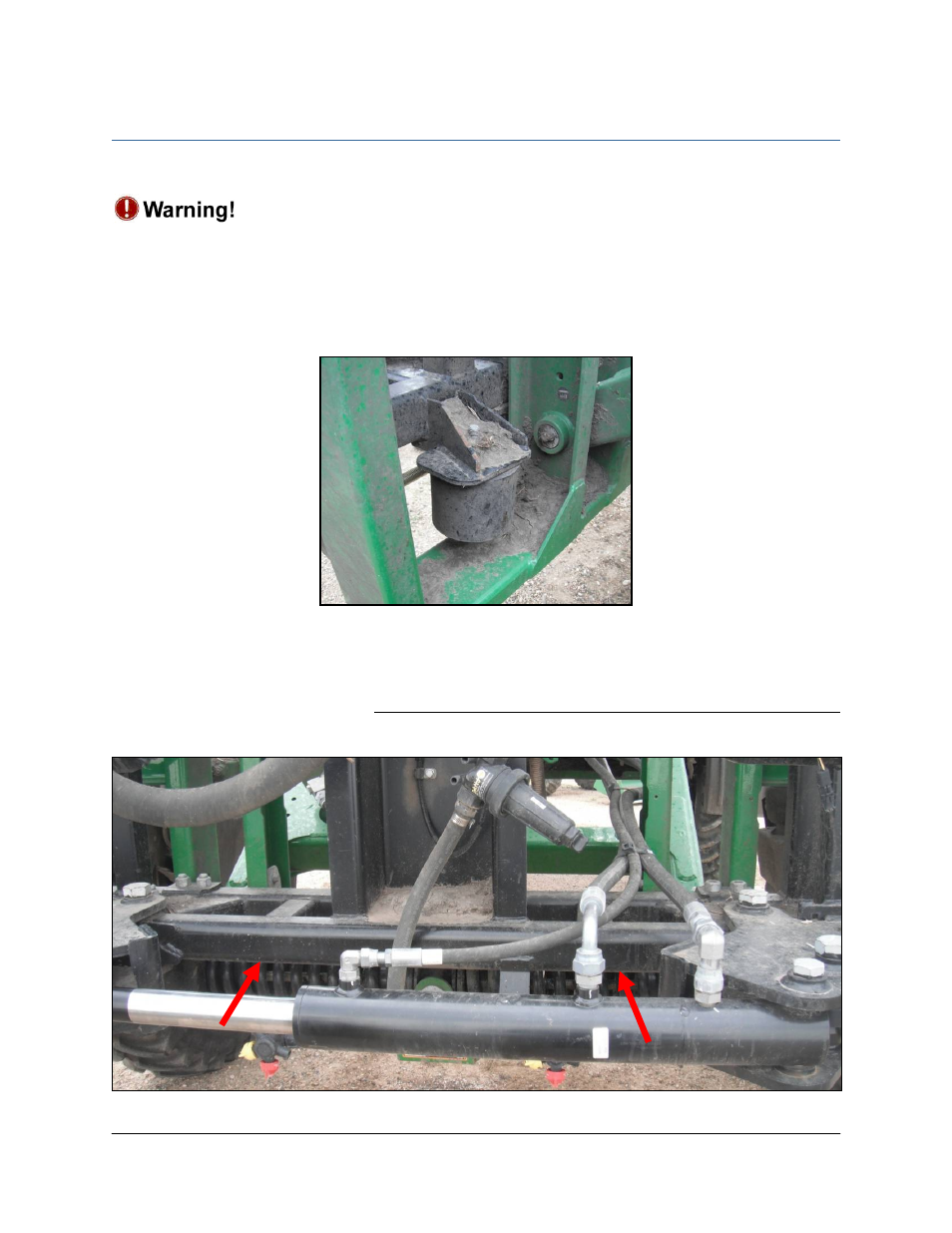

Figure 4: Rubber Bumpers
2. The springs to be removed are located on the bottom rear of the sprayer boom (Figure
5). Spring compression tools are needed to remove the springs (John Deere part number:
JDG10394). Please reference John Deere TM113619 – 4940 Self-Propelled Sprayer Repair
for instructions on removing the springs.
Figure 5: Spring Location
