24
9.2 Check Valve Assembly
1. Remove the NORAC valves from the 1 st and 2 nd stations of the valve block (closest to the
end with the pressure and tank ports).
2. Insert the alignment pin on the K&S check valve into the alignment hole on the NORAC
block. The side of the valve that had the name plate will be facing AWAY from the end of
the block where the pressure and tank ports are located. (Figure 25) It may be necessary
to remove the name plate from the K&S check valve before installation.
3. Install the NORAC valve on top of the K&S check valve with the “T” on the label facing the
end of the block where the pressure and tank ports are located. (Figure 26)

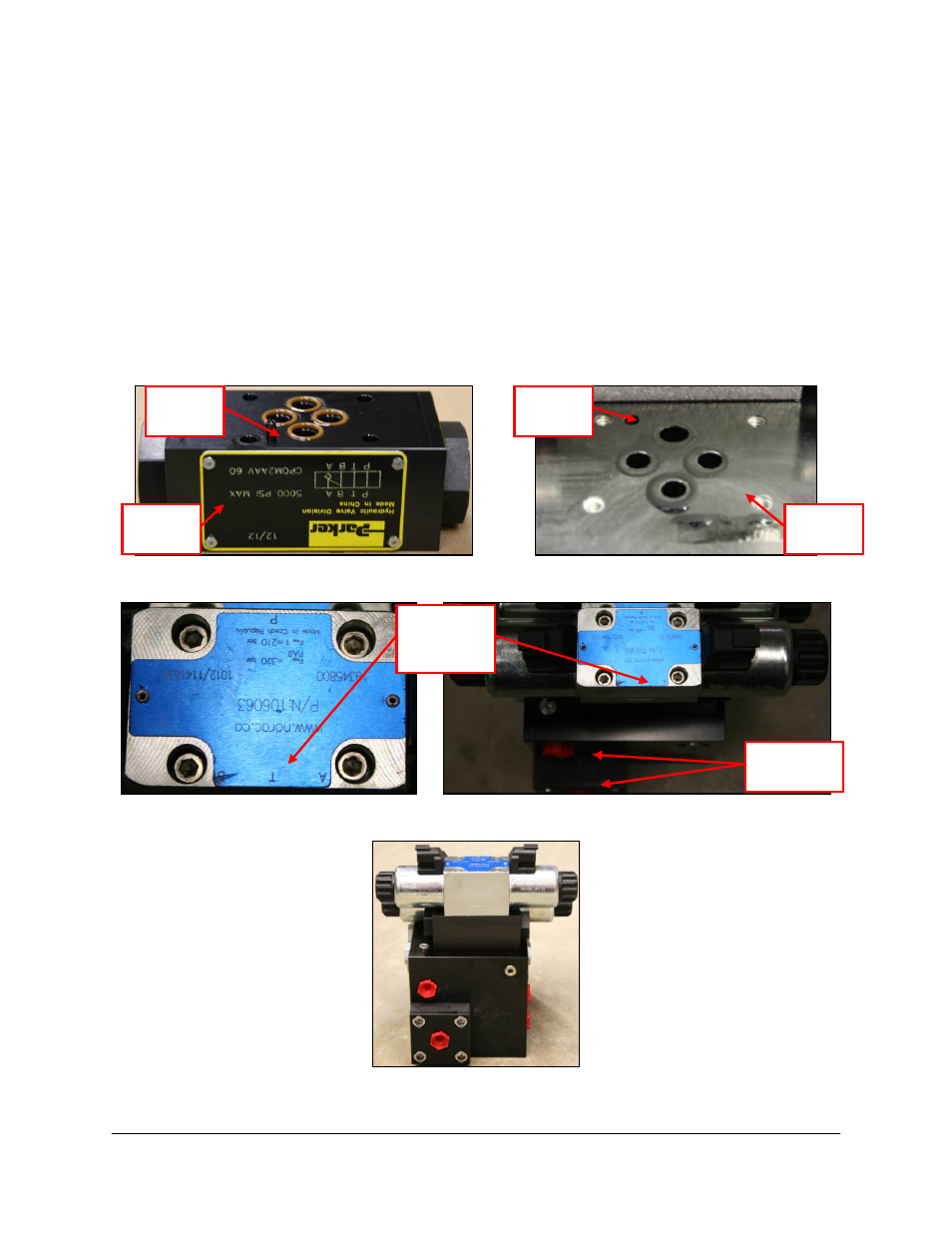

Figure 25: Alignment Pin and Hole
Figure 26: “T” on Label Facing Towards Pressure and Tank Ports
Figure 27: K&S and NORAC Valve Mounted on 1 st Station of Block
Alignment
Hole
Alignment
Pin
Remove
Plate
NORAC
Block
Pressure and
Tank Ports
“T” Facing
Pressure and
Tank Ports
