NORAC UC5-BC-GV01 User Manual
Page 19
16

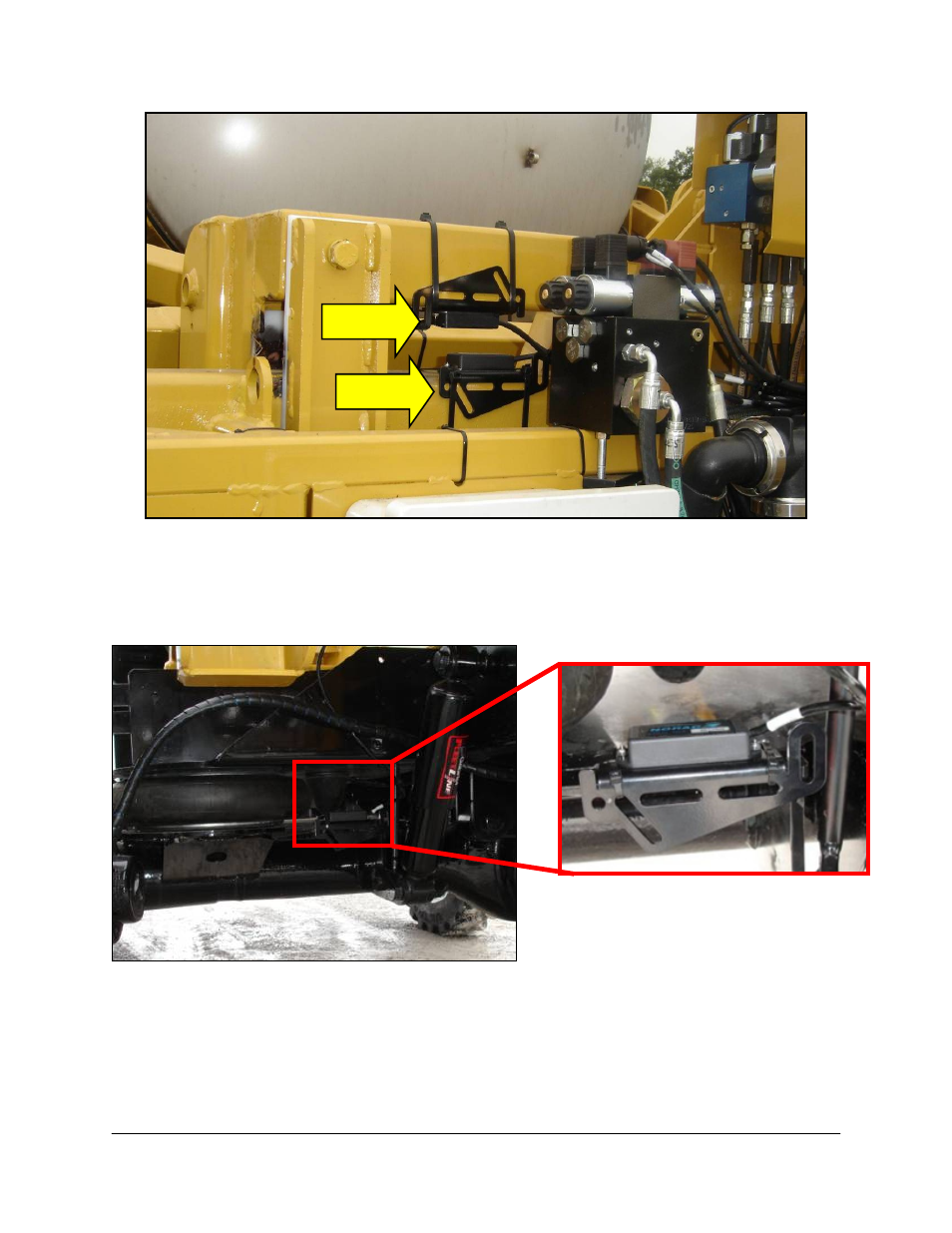

Figure 15: Boom Frame and Intermediate Frame Roll Sensor Mounting (Viewed from the rear of
sprayer)
5. The reference frame (chassis) roll sensor will be the roll sensor with the highest serial
number and should be mounted on the rear axle airbag base plate as shown in Figure 16.
Figure 16: Reference Frame Roll Sensor Mounting
6. Ensure all roll sensors are mounted adequately and that the cables provide enough slack to
allow sufficient boom roll.
