13
4.3 H
YDRAULIC
I
NSTALLATION
4.3.1 Valve Mounting
1. On a clean surface remove all plastic
plugs from the NORAC hydraulic Valve
(V01) (Figure 14).

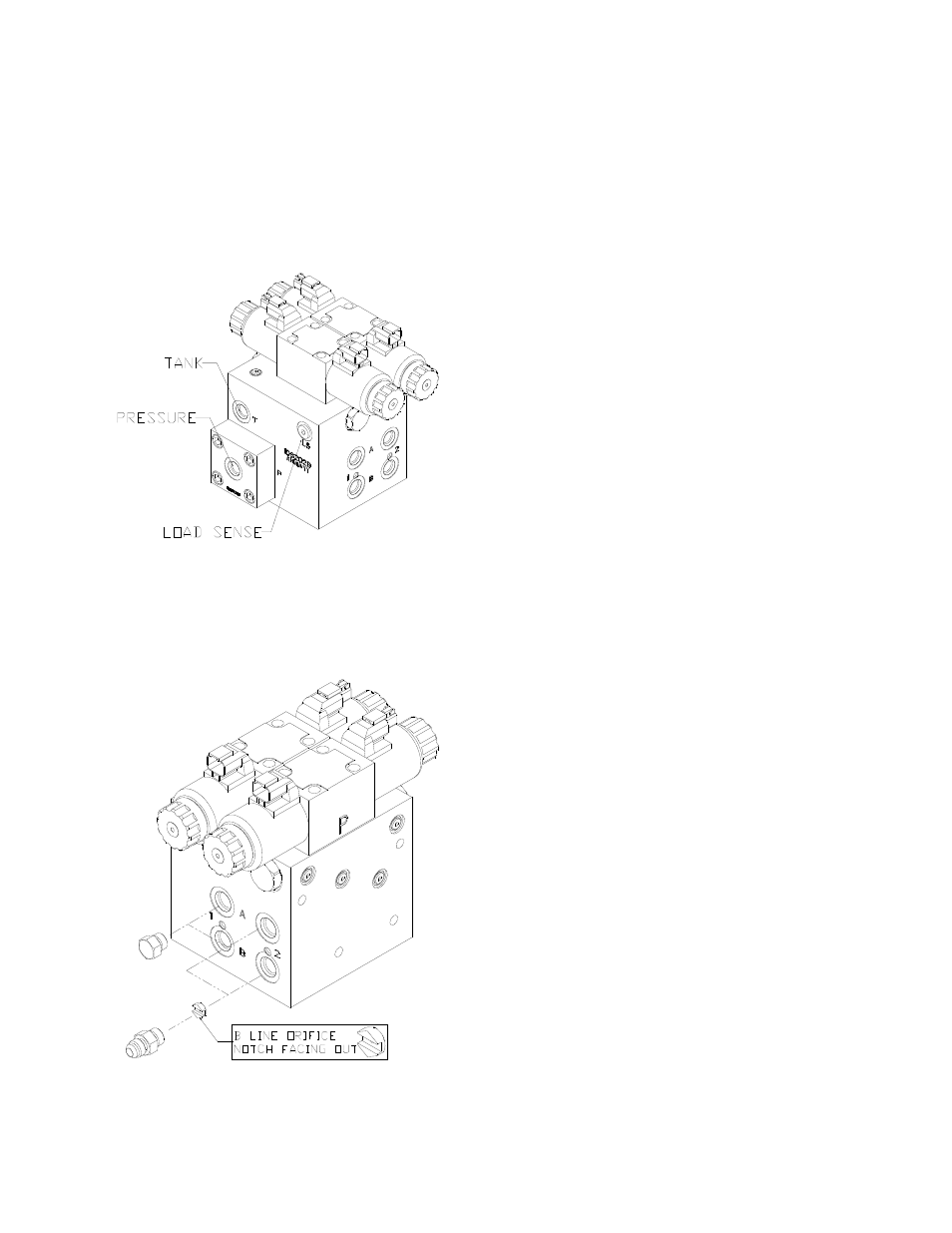

Figure 14: NORAC Valve Block
2. Install the orifices (F06) into the “B”
ports with the notch facing outward
as shown in Figure 15.
Figure 15: Valve Block Assembly
3. Install the 6MB-6MJ fittings (F04) into
the “B” ports and tighten to 18 ft-lbs.
4. Install the 6MB-plugs (F05) into the “A”
ports and tighten to 18 ft-lbs.
5. Mount the NORAC valve (V01) to the
sprayer in a suitable location.
