18

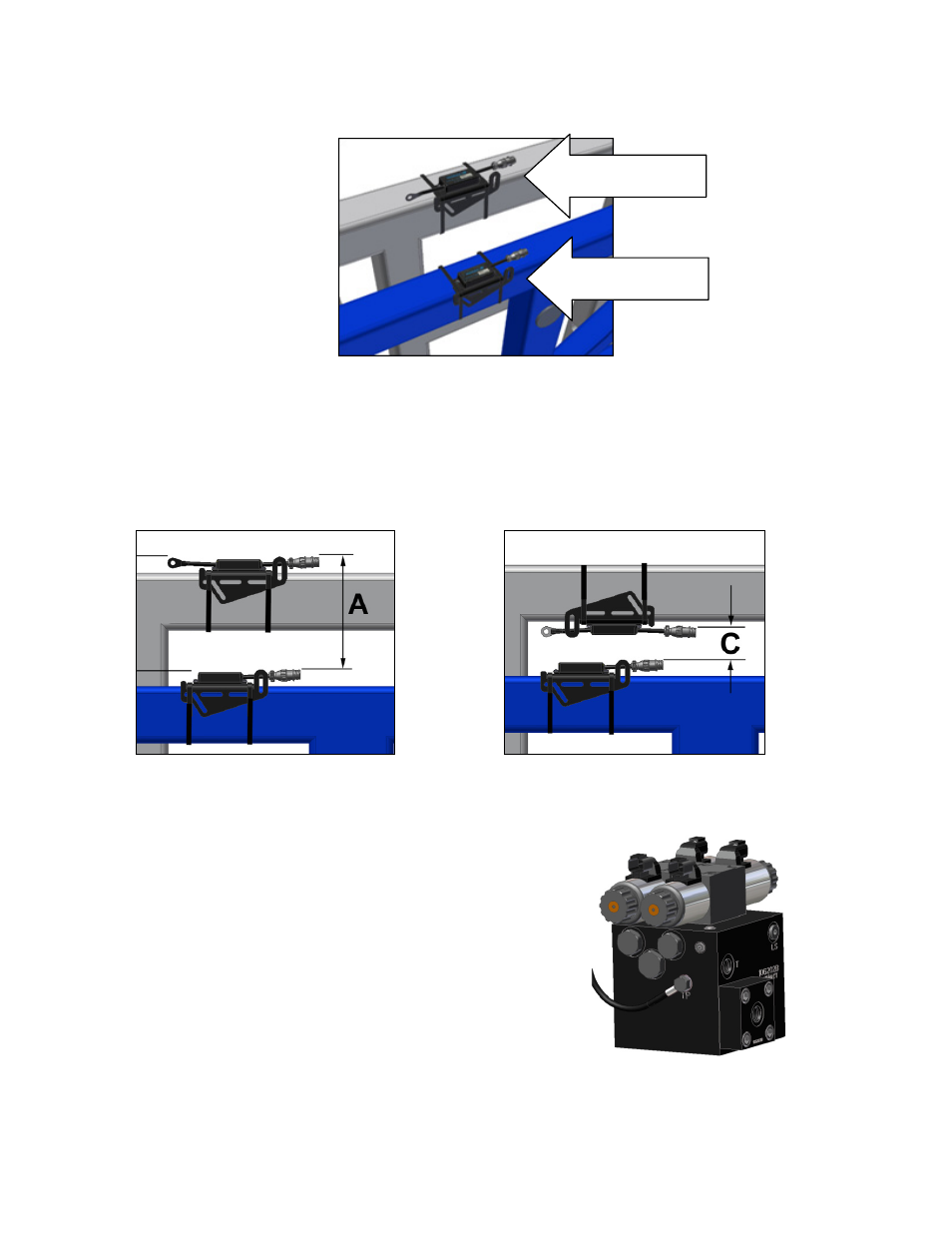

Figure 19: Boom and Chassis Roll Sensors Correctly Mounted
4.5.3 Inverted Roll Sensor Mounting
If desired, the Roll sensor may be mounted
inverted, so long as the connector exits towards
the right-hand
boom. Inverted mounting may be used to
optimize the mounting criteria explained in
Section 4.5.
Figure 20: Inverted Roll Sensor Mounting may be Applicable for Optimal Performance
4.5.4 Temperature Probe
Fasten the temperature probe (E03) to the
UC4 valve block using the included 3/8x1/2”
bolt as illustrated in Figure 21.
Figure 21: UC4+ Valve Block with
Temperature Probe Installed
E04
E03
