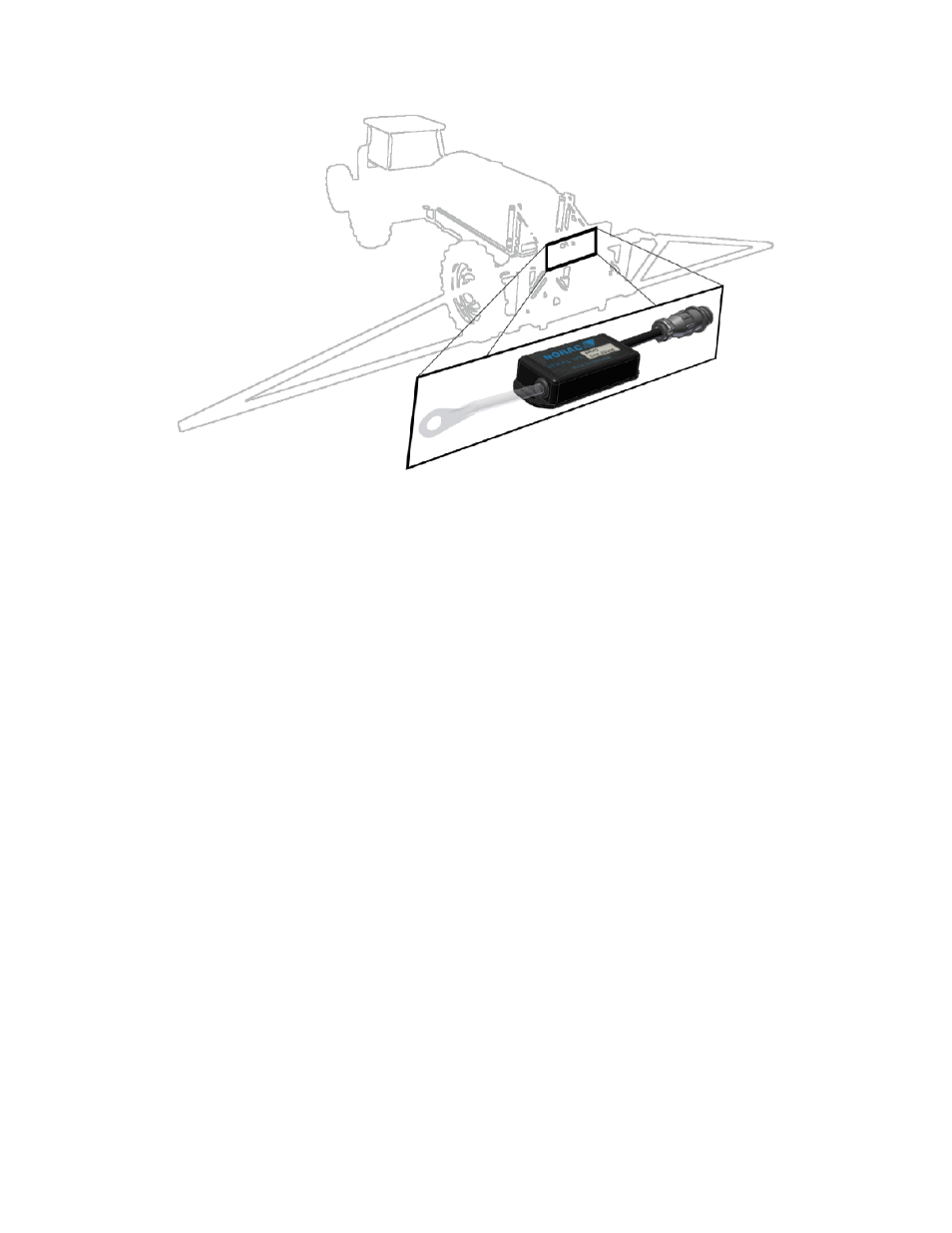

Figure 18: Roll Sensor Mounting with Respect to Sprayer Orientation
4.5.1 Boom Roll Sensor Mounting
The boom roll sensor (E04) must be mounted
to the rotating part of the boom. Follow these
guidelines and refer to Figure 19 to mount the
sensor.
a) Make sure you are using the roll sensor that
does NOT have a temperature probe (only
one cable) (E04).
b) The boom roll sensor must be mounted to
the rotating part of the boom suspension.
c) Use cable-ties to secure the bracket to a
square edge feature (square tube).
d) Ensure the AMP (circular) connector exits
towards the Right Hand Wing (when looking
from the rear of the sprayer).
e) Securely cable-tie the connector to the
frame.
4.5.2 Chassis Roll Sensor Mounting
The chassis roll sensor must be mounted to a
non-rotating part of the boom. To mount the
chassis roll sensor, follow the following
guidelines and refer to Figure 19.
a) Make sure you are mounting the roll sensor
that does have a temperature probe (2
cables) (E03).
b) Mount the chassis roll sensor (E03) to a
non-rotating part of the boom.
c) Cable-tie the bracket to a square edge
feature (square tube).
d) The AMP (circular) connector MUST exit
towards the Right Hand Wing (when looking
from the rear).
e) Securely cable-tie the connector to the
frame.
* The boom frame
roll sensor does not
have a temperature
probe
