4.5.2 Valve Mounting
1. Mount the NORAC valve (V01) on the
sprayer using the valve mounting bracket.
2. Screw short side of the threaded rods into
the bottom of the valve block at least 3/8".
The valve mounting holes are drilled and
tapped 3/8 NC-1" deep.
3. Tighten the Hex nuts to hold the rods.
4. Put the mounting bracket on the other side
of the tube and tighten with the spring
washers and the Hex nuts.
5. Cut excess off of the rods, if necessary.
If using bolts, the bolts should thread
into the valve block at least 3/8".
The valve mounting holes are drilled
and tapped 3/8 NC-1" deep. The rule
of thumb for bolt length is 1-1/2"
longer than the tube size.
You must ensure no hydraulic
components will interfere with any
sprayer parts or be pulled tight at
any time.

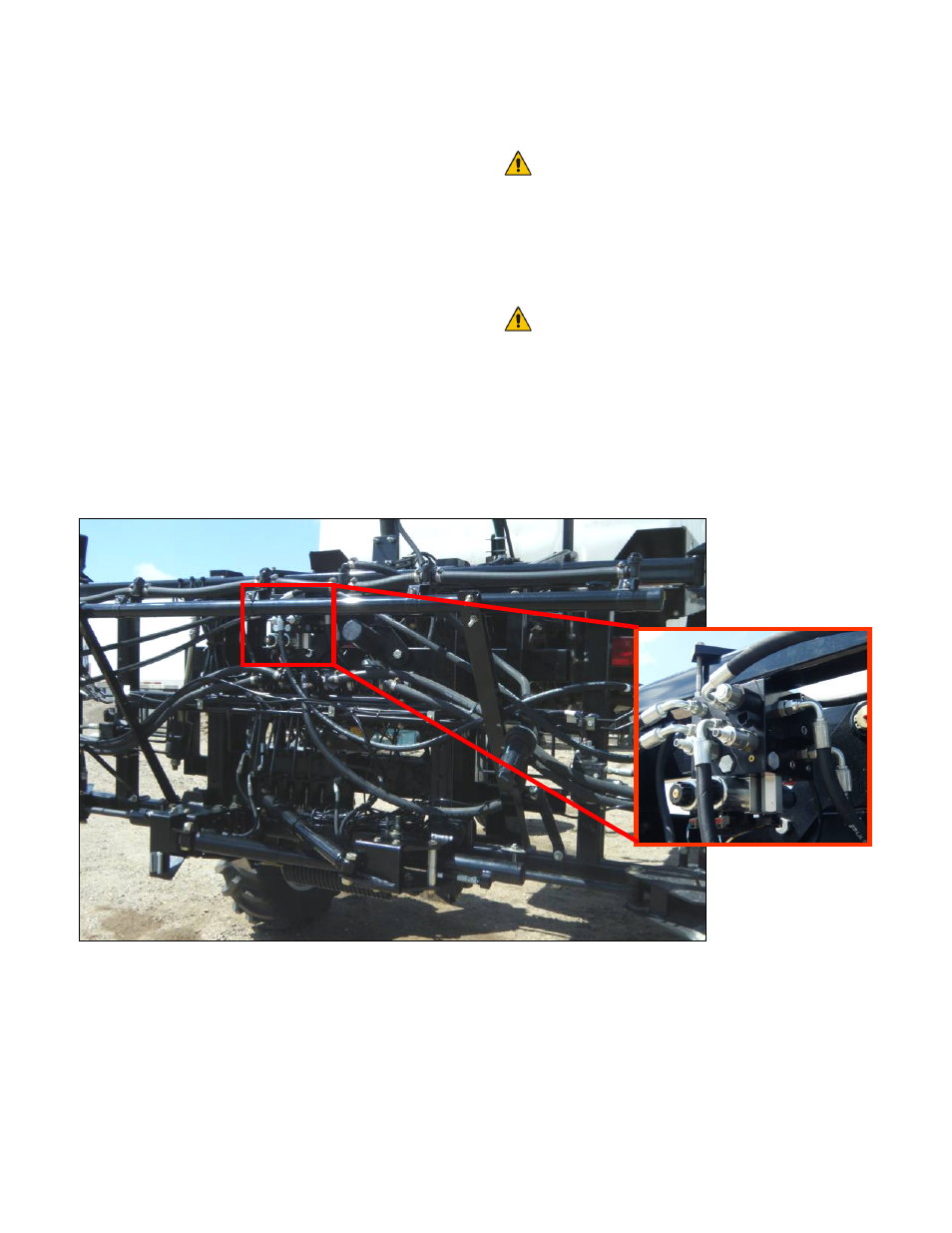

Figure 16: Valve Mounting Example
