12
4.4 R
OLL
S
ENSOR
I
NSTALLATION
For this installation, the roll sensor is
only being used for temperature
compensation.
1. Mount the roll sensor to the provided roll
sensor bracket.

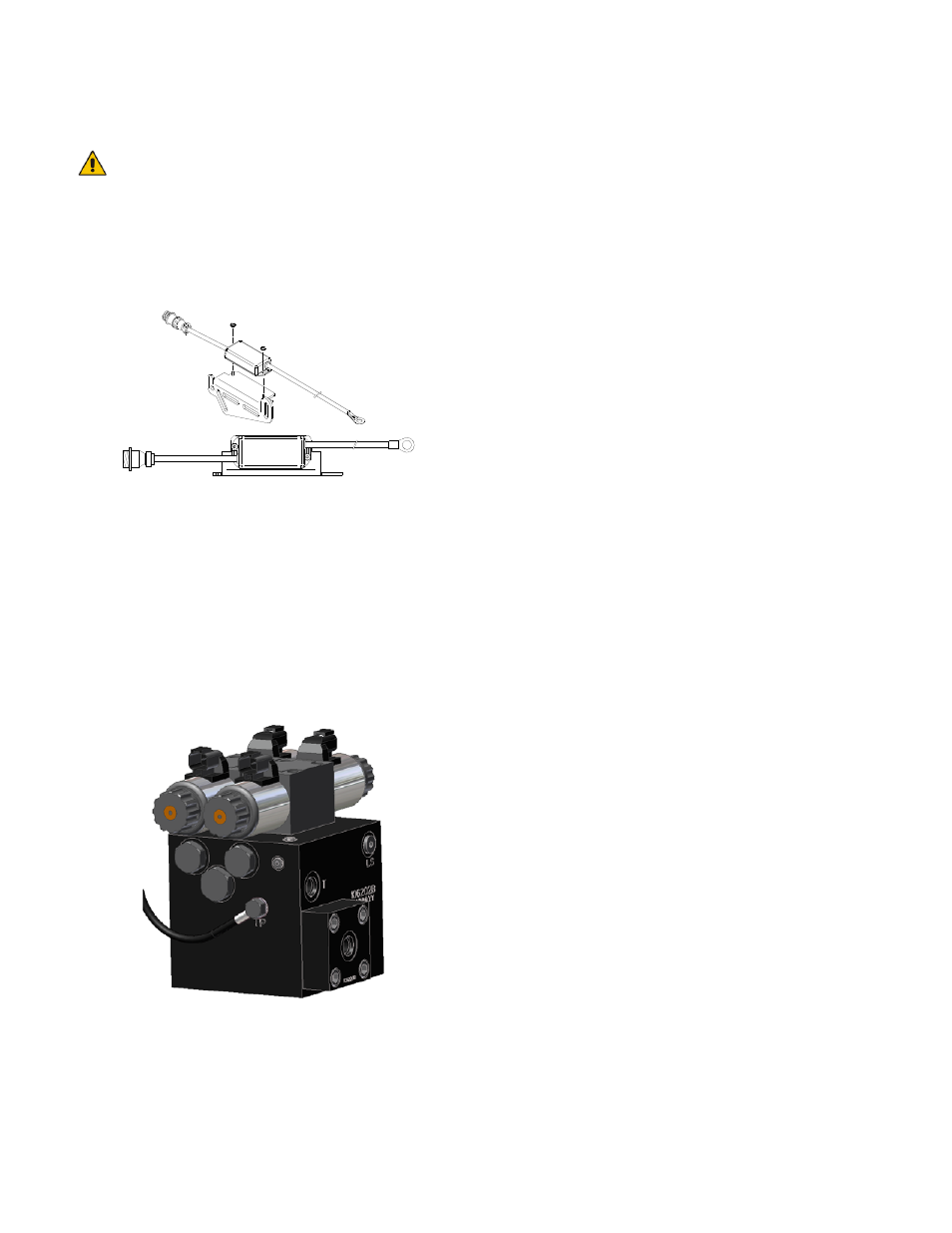

Figure 12: Mounting the Roll Sensor to
the Roll Sensor Mounting Bracket
2. Attach the roll sensor and roll sensor bracket
to the boom, near the NORAC valve block
using the provided cable ties.
3. Attach the temperature probe on the roll
sensor to the side of the NORAC valve
block, using the provided 3/8” bolt.
Figure 13: UC4+ Valve Block with
Temperature Probe Installed
