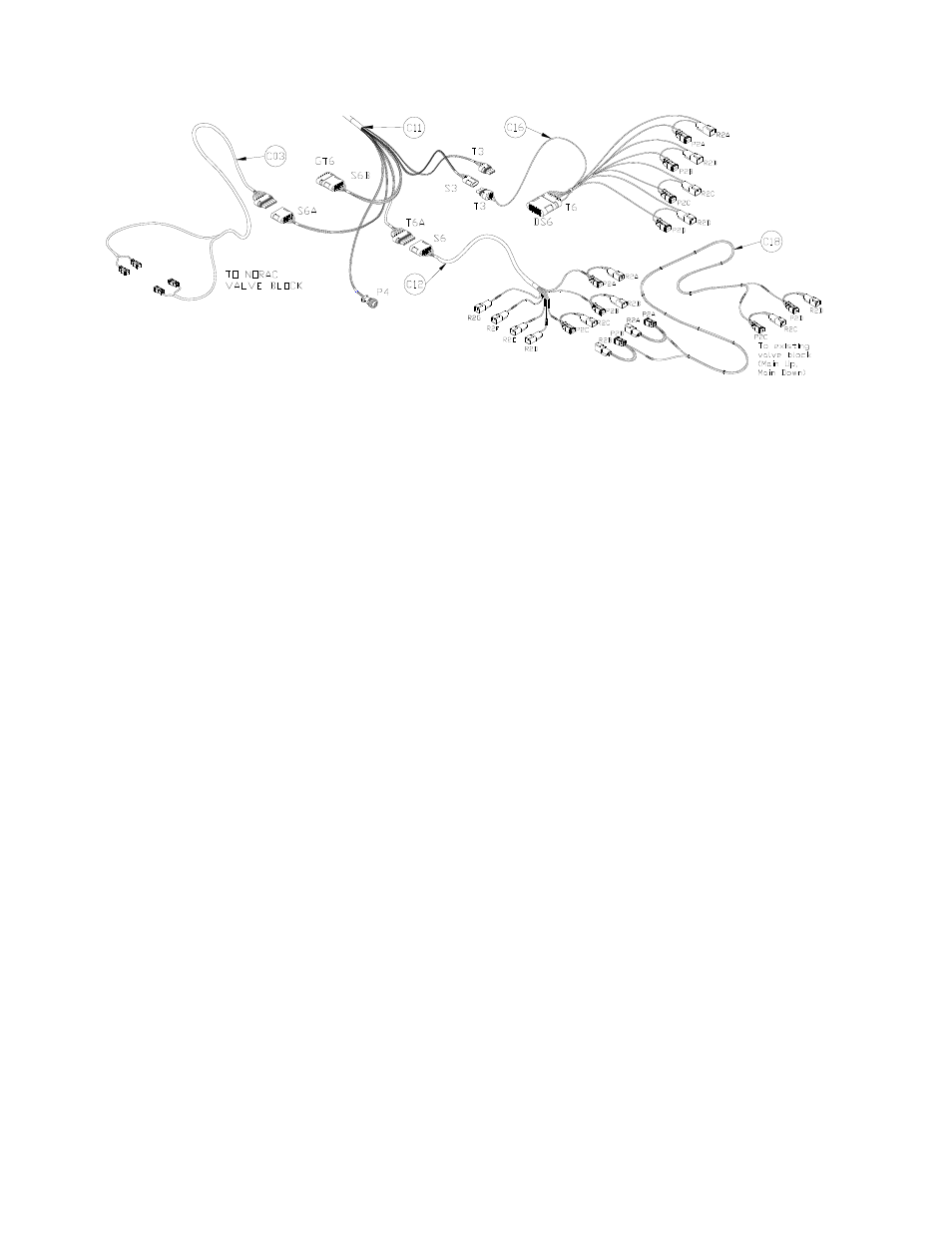

Figure 27: Cable Configurations: Rear of the Sprayer
6. Route C11 to the rear of the sprayer,
in the vicinity of the valve block.
7. Connect the 3-pin tower (T3) on roll
sense interface cable (C16) to the
mating connector (S3) on C11.
8. Route the free end of cable C16 to the
existing left and right boom control
valve block.
9. Insert the 2-pin tees (R2A-P2A - R2D-
P2D) of C16 between the matching
valve connections (Left Up, Left Down,
Right Up, Right Down).
10. Connect the 6-pin shroud (S6) on the
interface cable (C12) to the mating
connector (T6A) on C11.
11. Insert the 2-pin plugs (P01) into
connectors R2D, R2E, R2F and R2G on
cable C12.
12. Connect the 2-pin tees (which are
labeled as “MAIN UP” and “MAIN
DOWN” on the branch wires) of C12
to the matching tees of the main
extension interface cable (C18). There
is an extra “MAIN UP” tee (R2A and
P2A) on C12. This extra tee is not
used for this installation.
13. Route the free end of C18 to the
existing main control valve block.
14. Insert the 2-pin tees (R2C-P2C and
R2D-P2D) of C18 between the
matching main control valve
connections.
15. Connect the 6-pin Tower on the valve
cable (C03) onto the mating connector
(S6A) on C11.
16. The connectors on the valve cable
(C03) are marked RIGHT UP, LEFT
UP, RIGHT DOWN and LEFT
DOWN: Cables labeled with UP go
on the same side as the hydraulic hoses.
