8
5 Roll Sensor Installation
1. Securely mount the roll sensor to the included roll sensor bracket using the #6 machine
screws. Tighten screws to 10 in-lbs (1.1 Nm).
2. The orientation of the mounted roll sensor to the roll sensor bracket will depend on the
bracket mounting. The roll sensor CAN-bus connector must be pointing towards the right
side of the sprayer (when looking from the rear of the sprayer).

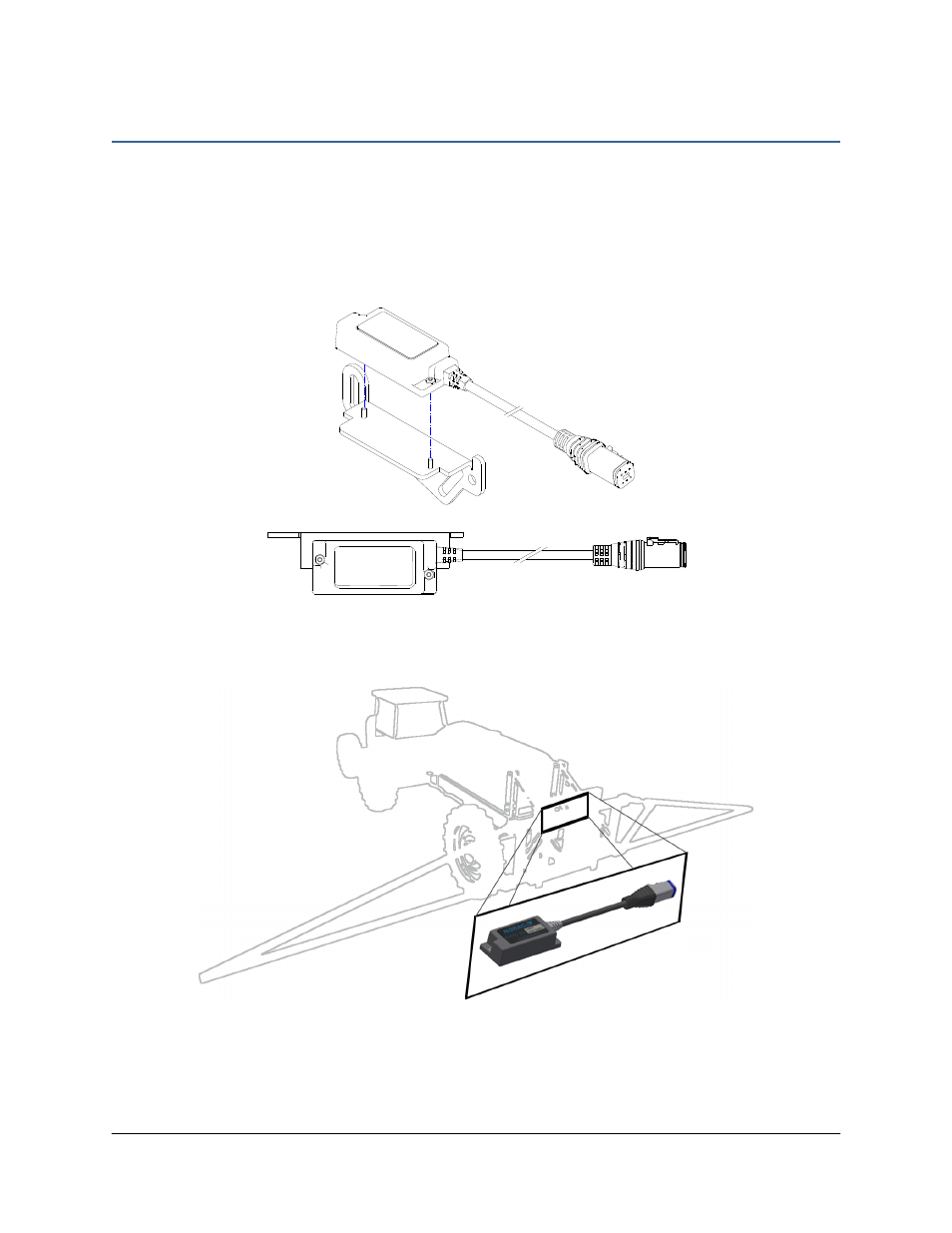

Figure 4: Mounting Roll Sensor to Bracket
Figure 5: Roll Sensor Orientation - Connector Facing Right Wing
