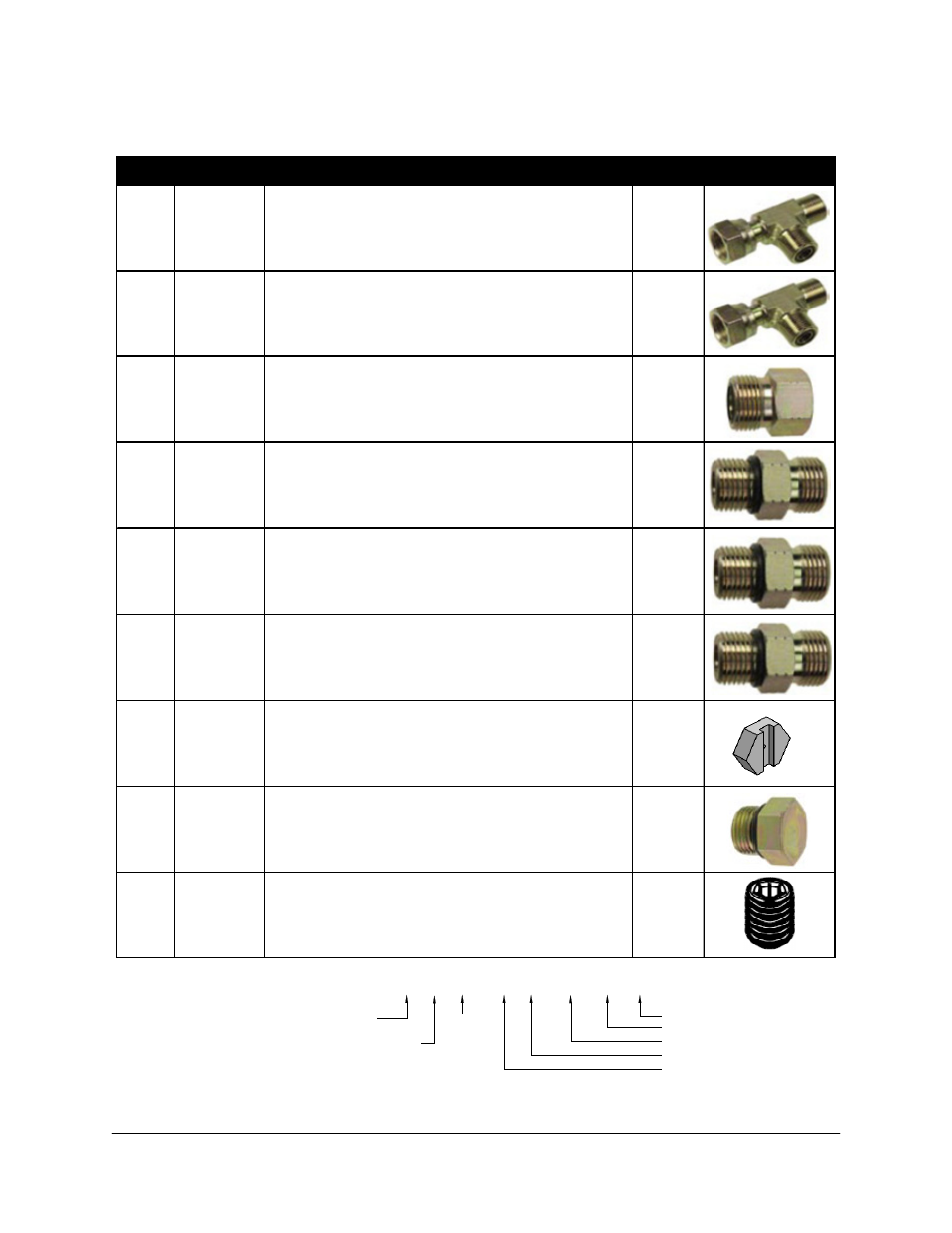

3.5 Hydraulic Fitting Kit Details (P/N: 44865-19)
Item Part Number Name Quantity Picture
F02 104691 TEE ADAPTER - 4FORXR 4MORT 1
F03 104586 TEE ADAPTER - 6FORXR 6MORT 3
F04 105226 MALE TO FEMALE ADAPTER - 4MOR 6FORX 1
F05 44917 MALE ADAPTER - 6MB-6MOR MACHINED ORB 4
F06 104693 MALE ADAPTER - 4MOR 4MB 1
F07 44916 MALE ADAPTER - 6MB-4MOR MACHINED ORB 4
F08 44928 ORIFICE INSERT .047 IN ONE WAY 4
F09 103381 PLUG - 4MBP 4
F15 105500 SETSCREW 1/4X3/8 1
6 M B - 6 M OR X 90
SIZE IN
1/16
TH'S
GENDER: MALE
OR FEMALE
90 ° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
