NORAC UC4.5-BC-JD7 User Manual
Page 22
20
20

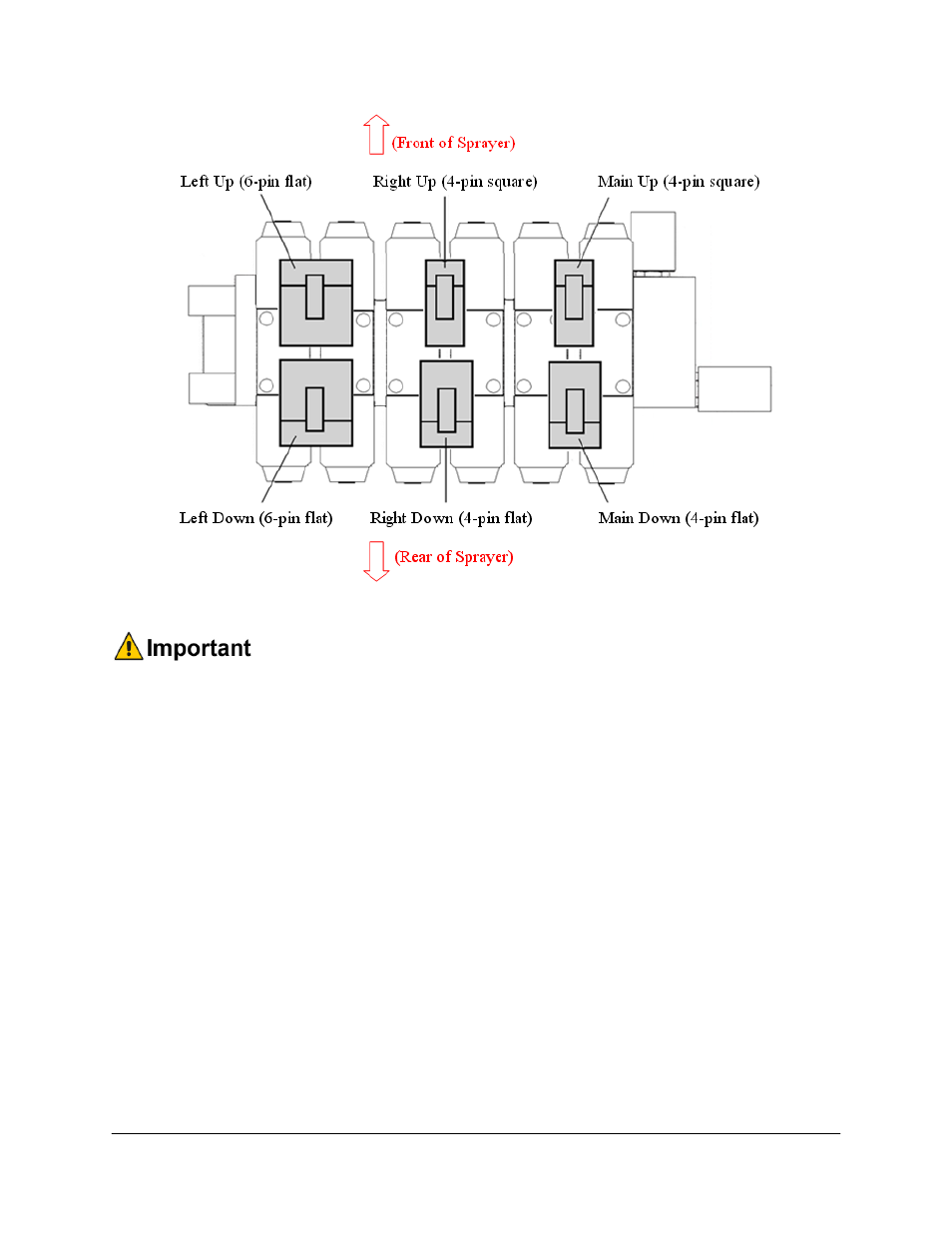

Figure 19: John Deere Boom Valve Block (top view) with Connectors Labeled
Some older model John Deere sprayers (4700 and 4710) may have a different style
boom valve block that has different connector arrangements. The NORAC
interface cable (C12) 44658-01 will require modification. See Appendix A for
modification procedure.
