Mytek Manhattan Digital to Analog Converter – User's Manual

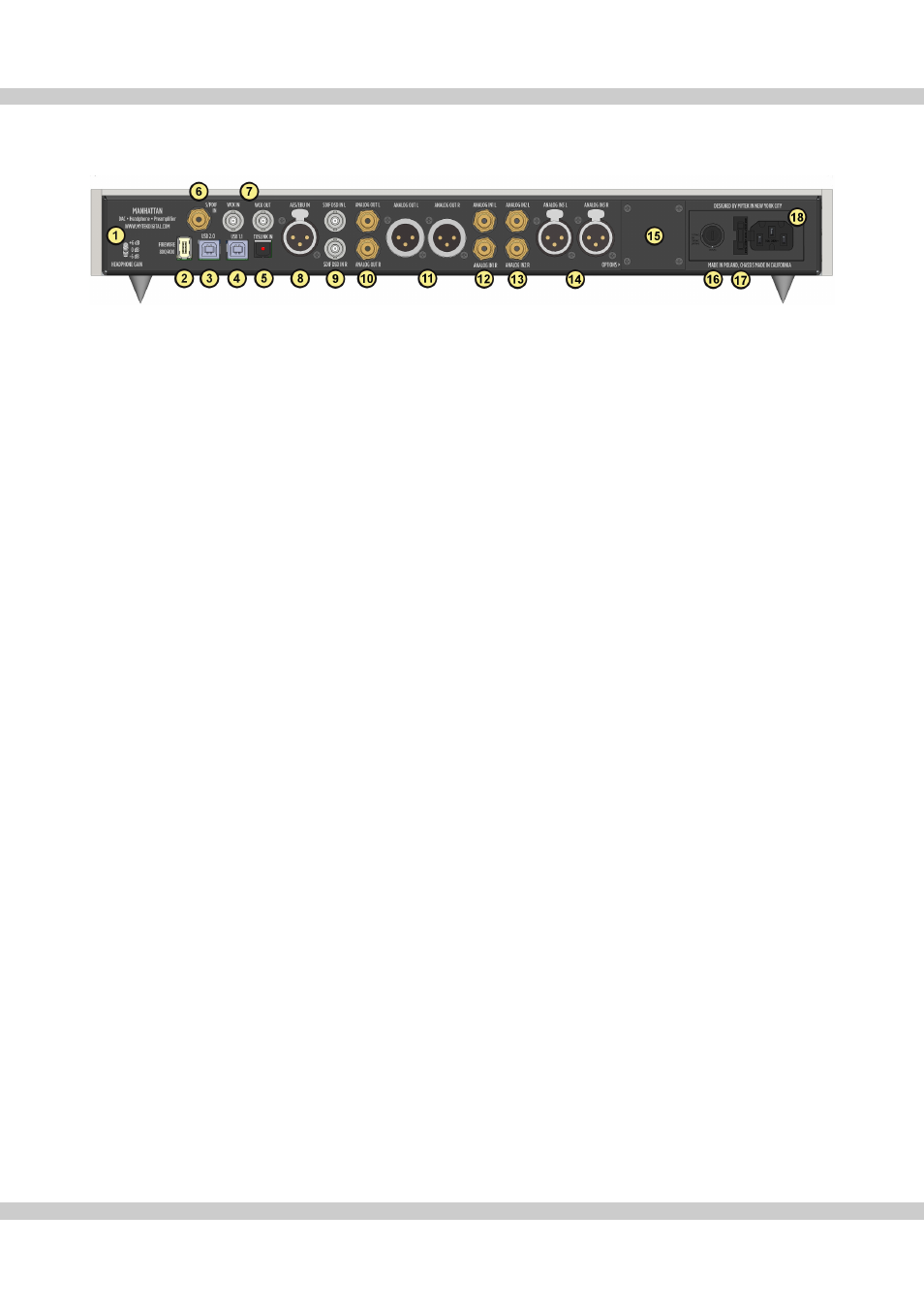

4.2 Rear Panel
1. Headphone Gain Switch. User should arbitrarily set this switch for an optimum loudness of a
particular headphone type. Some headphones are louder than other, this switch will compensate for
differences.
2. 6-pin FireWire socket for connection to the computer, offering playback up to 192kHz and up to
DSD128 (DSD 128 with Audirvana or Jriver only). Can be used with FireWire 400 > FireWire 800
cable or Firewire 400> 800 > Thunderbolt with Mac Thunderbolt adapter (included)
3. USB 2.0 socket, up to 384KHz/DSD256 capable.
4. USB 1.1 socket for connection to the computer, 96kHz capable
5. Optical Input (Toslink). Consumer digital input that accepts up to 192kHz PCM and DSD DOP
standard via optical S/PDIF. This input can also be used to transmit digital audio into computer via
FW connection.
6. S/PDIF Coaxial Input. Consumer digital input that accepts up to 192kHz sampling rate. This input
can also be used to transmit digital data to computer via FW connection.
7. Wordclock BNC Input and Output. Used for professional clock distribution. 192KHz and DSD
reference clock.
8. AES/EBU Input. Professional digital input that accepts up to 192kHz. Accepts DSD DOP standard
input. This input can also be used to transmit digital data to computer via FW connection.
9. SDIF DSD input – This is Sony standard open DSD input. Can be used with some professional
grade equipment.
10. RCA Stereo Analog Output
11. Balanced XLR Stereo Analog Output
12. RCA Stereo Analog Input
13. RCA Stereo Analog Input
14. Balanced XLR Stereo Analog Input
15. Expansion slot / additional options (SACD transport optical interface can be installed here)
16. Power switch: Linear power supply 115 and 230V AC 50/60 Hz. There is a special Japanese version
of 100V/230V available through distributor in Japan.
17. Fuse, 20mm 2 Amp T (slow blow) can be replaced here. There is a spare inside fuse assembly
18. IEC Power socket. Standard 115/230V receptacle. (100V/230V for Japanese Models).
