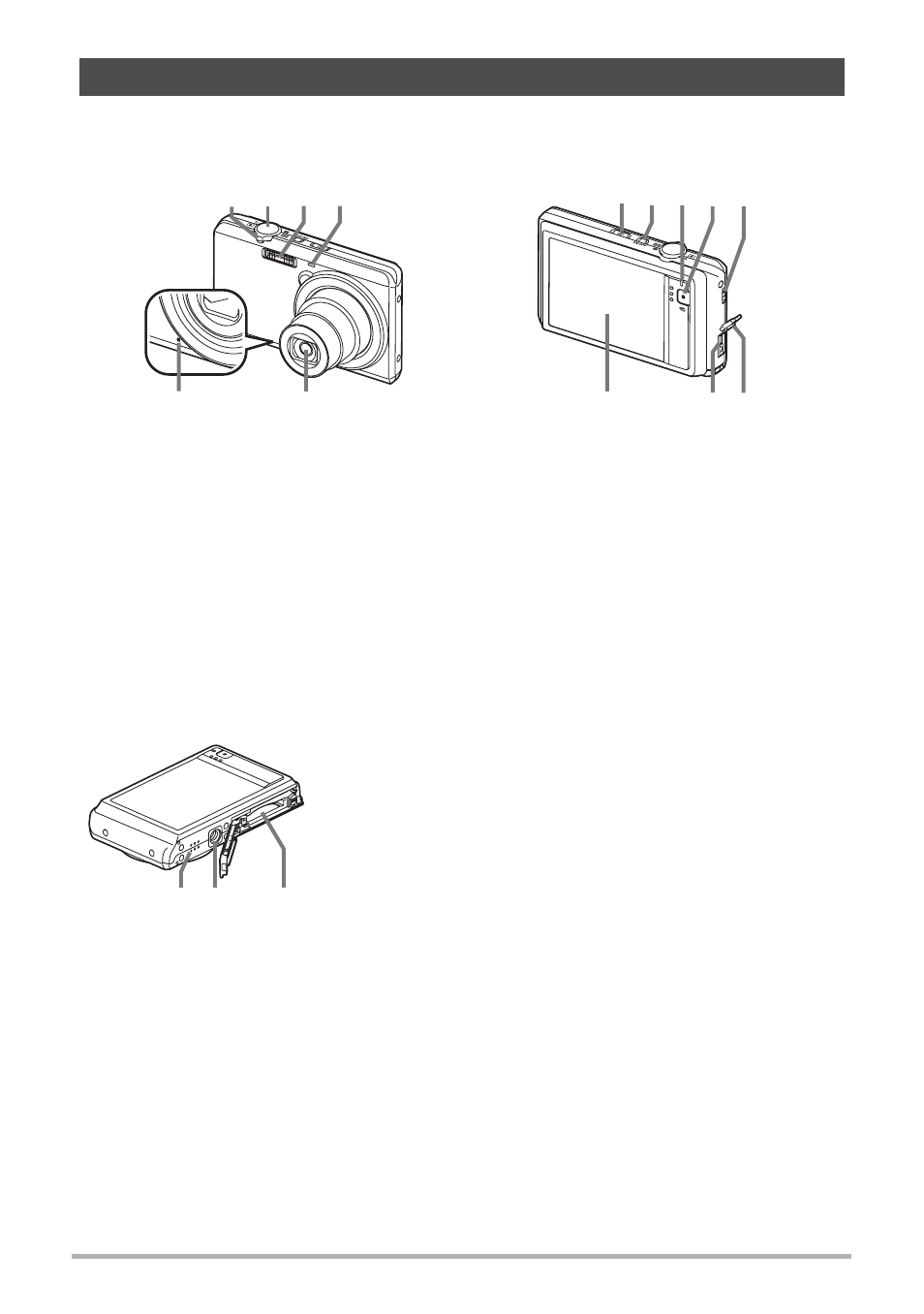

General Guide
1 Zoom controller
(pages 27, 35, 55, 55)
2 Shutter button (page 27)
3 Flash (page 33)
4 Front lamp
(pages 25, 42)
5 Lens
6 Microphone (page 38)
7 [p] (PLAY) button
(pages 24, 29)
8 [ON/OFF] (Power)
(pages 15, 20, 24)
9 Back lamp
(pages 16, 18, 24, 27,
34)
bk [0] (Movie) button
(pages 28, 37)
bl Strap hole (page 2)
bm Connector cover
bn [USB/AV] port
(pages 16, 17, 56, 68,
76)
bo Monitor screen
(pages 9, 10)
2 1
5
3 4
6
8 bk bl 9
bm
7
bo bn
Back
bp Battery/memory card slots (pages 14, 22, 100, 101)
bq Tripod hole
Use this hole when attaching to a tripod.
br Speaker
bp bq br
